Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $12.47 | $12.21 | $11.83 | $11.32 | Contact US |

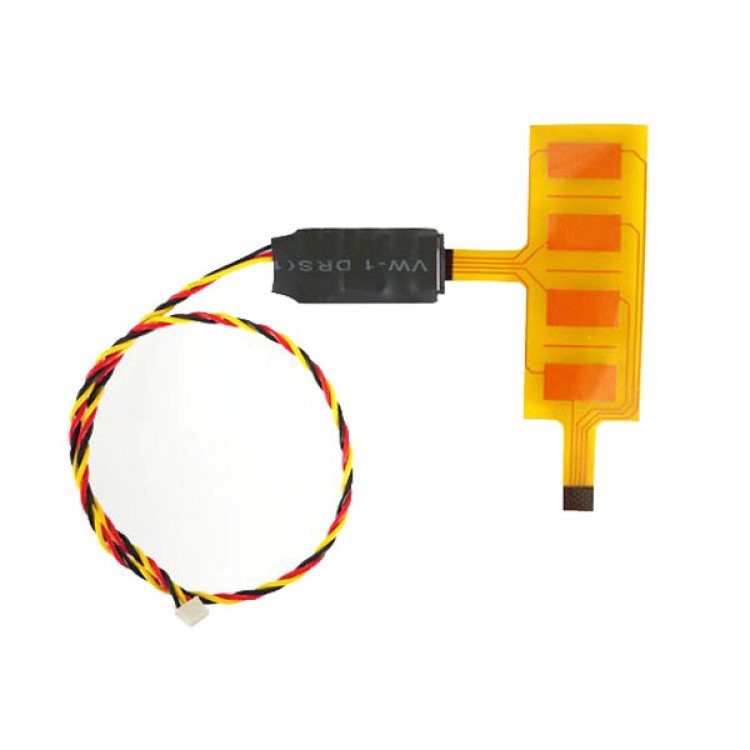

Telemetry Accessories Fuel Guage Sensor FGS-01
Descriptions:
Different sensors facilitate to monitor different parameters, such as altitude, speed, acceleration, longitude, latitude, RPM, fuel lever, signal reception, etc. If the model is driven by battery, you could use either built-in or external battery voltage sensor to monitor model’s battery voltage.
Fuel Sensor:
- Measurement Levels: Empty, 1/4, 2/4, 3/4, Full
- Length of the Sensor Film: 62mm
- Installation: Use double-sided tape to attach both circuit board and sensor film firmly to the outside of the fuel tank.
How to replace the sensor film:
- Lift the locking tab on both sides of the port, REPLACE the sensor film and press the locking tab back into place to secure the sensor film in the circuit board. Confirm the orientation is correct.
Note: The fuel tank MUST be empty at the start of this process for the sensor to accurately read the fuel level
