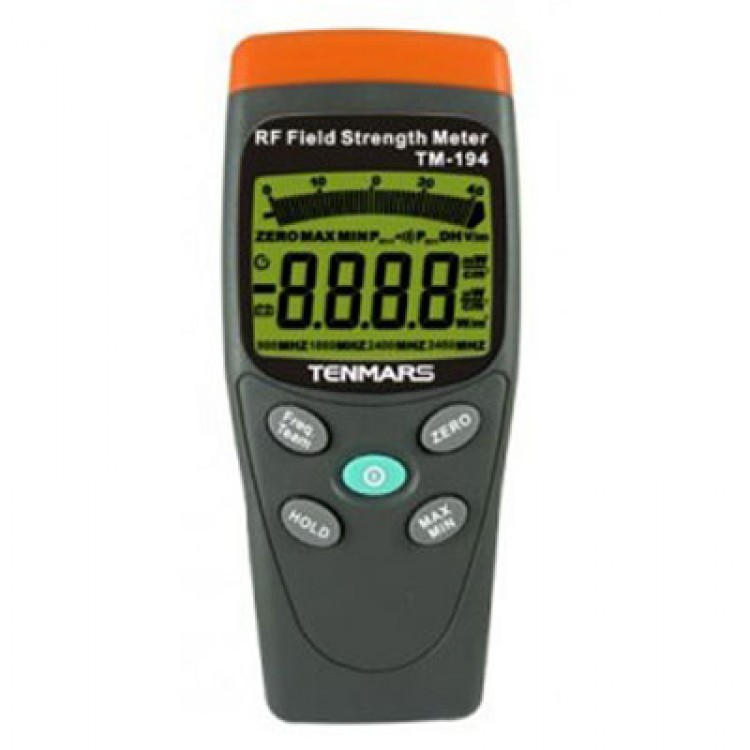

Tenmars TM-194 RF Field Strength Meter (Microwave Leakage Detector) 50MHz

Tenmars TM-194 RF Field Strength Meter (Microwave Leakage Detector) 50MHz – 3.5GHz
Descriptions:
- This meter is applied to measuring the RF frequency range from 50MHz to 3.5GHz.
- It is capable of measuring the electromagnetic field strength, which produced from electric transmission equipment and microwave oven.
- 3 3/4 LCD Max Reading 3999.
- Single axis.
- Auto power off (30 minutes).
Features:
- Display: big LCD
- Easy handling
- Frequency: 50MHz up to 3,5GHz or 2,45GHz
- Range: 0,002 bis 2,7mW/cm²
- Automatic Power Off after 30 minutes (Function can be disabled)
- Data Hold
- Display of maximum and minimum value
- Low battery indication
- On/Off-Switch
Specification:
- Measurement: elektromagnetic field strength
- Result: mW/cm²
- Resolution: 0,001 mW/cm²
- Accuracy: ±2dB at 2,45GHz ±50MHz
- Sampling rate: 2,5/s
- Power: 9V battery, approx. 100 hours life time
- Operating environment: 5°C - 40°C, <80%rH
- Storage environment: -10°C - 60°C, <70%rH
- Dimension WxHxL in mm: 56x38x130
- Weight: 160g (incl. Battery)
Package including:
- RF Field Strength Meter TM-194
- Keeping bag with hook-and-pile fastener and carrying strap
- English manual
