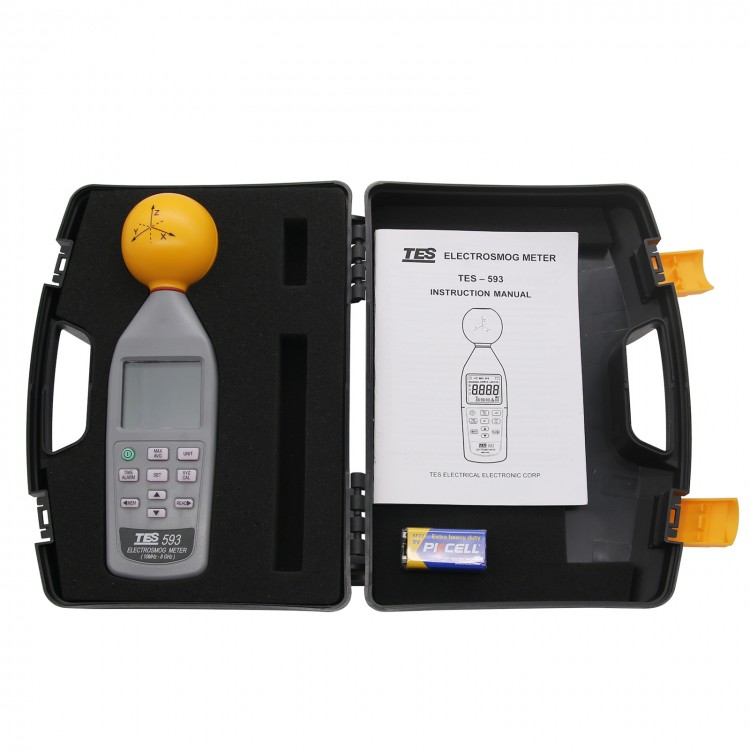

TES-593 ElectroSmog Meter 3 axis Isotropic Measurements EMF Safety Tester 10Mhz 8.0GHz
Features:
- Frequency range 10MHz to 8.0GHz
- 3 axis isotropic measurements of EMF
- Non-directional (isotropic) measurement with three-channel measurement probe
- High dynamic range
- Configurable alarm threshold and memory function
- Easy & safety to use
- High frequency (RF) electromagnetic wave field strength measurement
- Mobile phone base station antenna radiation power density measurement
- Wireless communication applications (CW, TDMA, GSM, DECT)
- RF power measurement for transmitters
- Wireless LAN (Wi-Fi) detection, installation
- Spy camera, wireless bug finder
- Cellular/Cordless phone radiation safety level
- Personal living environment EMF safety
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
ELECTRICAL SPECIFICATIONS |
| Sensor type | Electric field (E) |
| Frequency range | 10MHz to 8GHz |
| Directional characteristic | Isotropic, 3-dimensional |
| Measurement range (CW signal>10MHz) | 20mV/m to 108.0V/m 53mA/m to 286.4mA/m 1μW/m2 to 30.93W/m2 0μW/cm2 to 3.093mW/cm2 |
| Absolute error (@1V/m and 10MHz) | ± 1.0dB |
| Frequency response (taking into account typ. CAL factor) | ± 1.0dB (10MHz to 1.9 GHz) ± 2.4dB(1.9GHz to 8GHz) |
| Isotropy deviation | Type. ±1.0dB 於 f>10 MHz |
| Overload limit | 10.61mW/cm2 (200 V/m) |
| Temperature response (0 to 50 ℃) | ± 0.5dB |
GENERAL SPECIFICATIONS |
| Measurement method | Digital , triaxial measurement |
| Directional characteristic | Isotropic, triaxial |
| Measurement range selection | One continuous range |
| Display resolution | 0.1mV/m, 0.1μA/m, 0.1μW/m2, 0.001μW/cm2 |
| Setting time | Typically 1s ( 0 to 90% of meas. value) |
| Display refresh rate | Typically 0.5Sec. |
| Display type | LCD 4 digit |
| Audible alarm | Buzzer |
| Measurement units | mV/m , V/m , μA/m , mA/m , μW/m2, mW/m2, μW/cm2 |
| Measurement display value | Instantaneous measured value, maximum value, average value or maximum average value |
| Measurement alarm function | Adjustable threshold with ON/OFF |
| Measurement calibration factor CAL | Adjustable |
| Manual data memory and read storage | 99 sets ( only recall by meter ) |
| Battery | 9V |
| Battery life | >15 hours |
| Dimensions | Approx. 67(W) x 60(T) x 247(L) mm |
| Weight | Approx. 260g (including battery) |
| Accessory | 9V battery, carrying case, manual |
