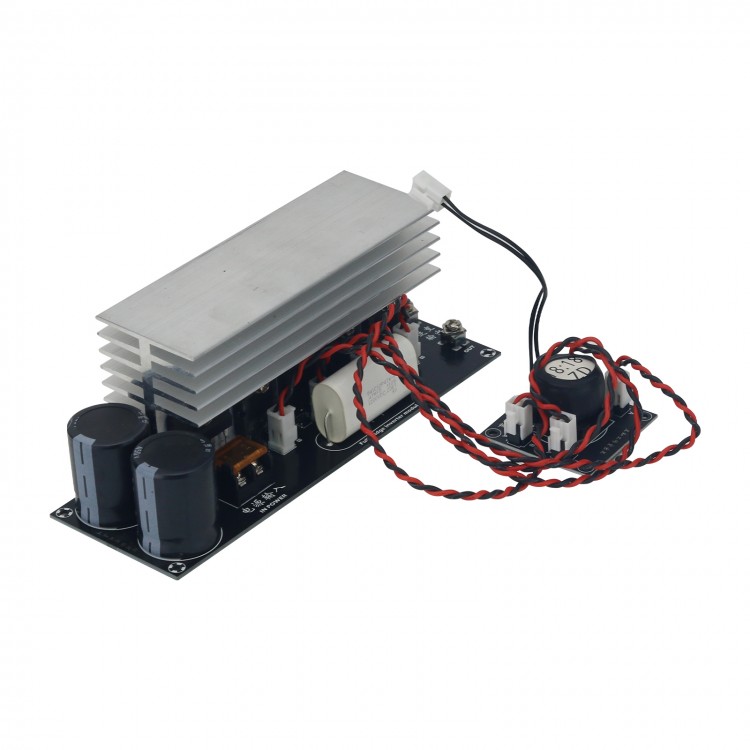

Tesla Coil Full Bridge Inverter Module H Bridge Inverter Board and GDT Module for DRSSTC SSTC
Description:
This is a Tesla coil full-bridge [H-bridge] inverter module. Its on-board rectifier can use the industrial frequency AC input directly.
4pcs imported IGBT GT60N321 transistors (second-hand). The quality of the transistors are guaranteed.
The gate drive uses an isolation transformer [GDT] input. The phases are already set on the board, and all can be wired in the same phase! No need for the user to adjust the phase! Plug-in terminal for easy wiring!
The heat sink of IGBT has been enlarged and thickened. A single F-shaped heat sink allows you to easily mount a cooling fan behind the heat sink. The four corners of the PCB have M3 fixing holes for easy installation! Bus absorption capacitor adopts the original American non-inductive absorption capacitor for CDE! The inverter output terminal adopts "large" current screw type terminal!
PCB size: 190 x 65mm/7.5 x 2.6".
Package Included:
- 1 x Full Bridge Inverter Module
- 1 x GDT Module
- 4 x Cables
Note:
- The full bridge inverter module and GDT module are wired.
