Description:
- WT10 series handheld digital Tesla WT10A,WT10B,WT10C score,WT10D,WT10E,WT10F six types can be used to measure the magnetic induction DC magnetic field, alternating magnetic field, magnetic field, radiation, and other types of remanent magnetic field of the earth's magnetic field.
- This instrument can carry (150mm * 70mm * 30MM), wide measurement range, easy operation, clear LCD display, power supply for the six quarter number 5 battery, can work continuously for more than and 100 hours, can also use the power supply in the city under the condition of power, compact and portable.
Features:
- WT10C type portable digital Tesla meter applied to the surface of permanent magnetic field, magnetic materials, DC motors, speakers, magnetic separator, magnetic field of permanent magnet in the magnetic iron work measurement. And can be applied to the detection of machining residual magnetic leakage detection, magnetic materials pole distribution, magnetic field, and the remaining products after demagnetization control, electro magnetic motor, magnetic field detection detection.

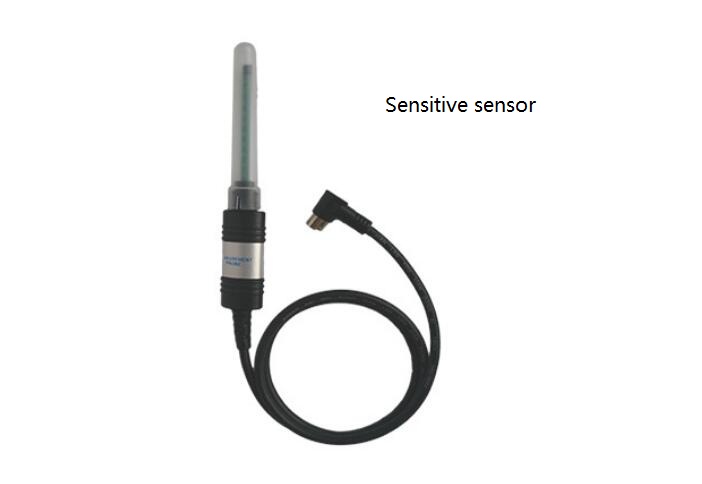

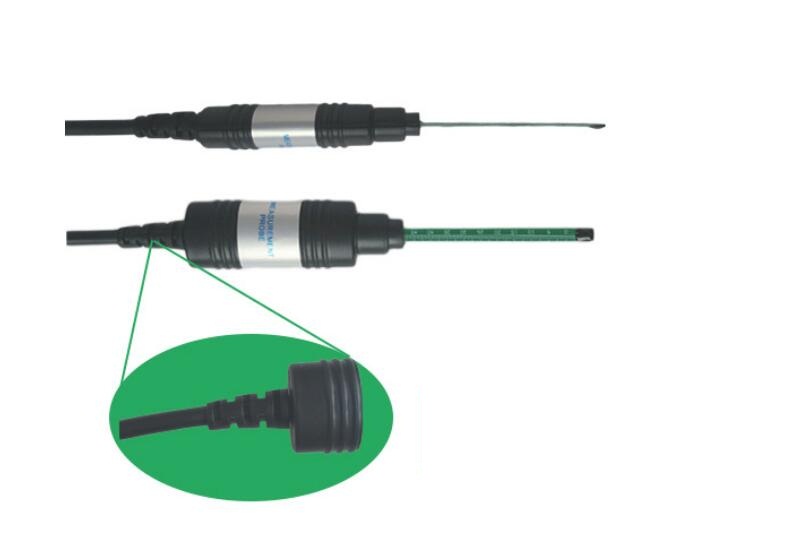

- Can be equipped with radial, axial probe.
Specifications:
1.Measuring range: 0~200mT~2000 mT frequency range: 10Hz~200Hz
2.Accuracy: 0~100mT 1%, 100mT above 2% (uniform magnetic field measurement)
3.Resolution: DC * 1:0.00 ~ 200.00mT 0.01mT
DC * 10:0.0 ~ 2000.0mT 0.1mT
AC * 1:0.00 ~ 200.00mT 0.01mT
AC * 10:0.0 ~ 2000.0mT 0.1mT
4.The measured magnetic field: DC magnetic field (static magnetic field)
AC magnetic field (dynamic magnetic field)
5.Function: peak maintenance function
6.Gs (Gauss) /mT (Tesla) can freely switch
7.DC measurement with NS polarity display. N on behalf of the positive, S on behalf of the negative
8.Display keys quickly automatic zero
9.Ambient temperature: 5 ~40 C
10. relative humidity: 20%~80% (no condensation)

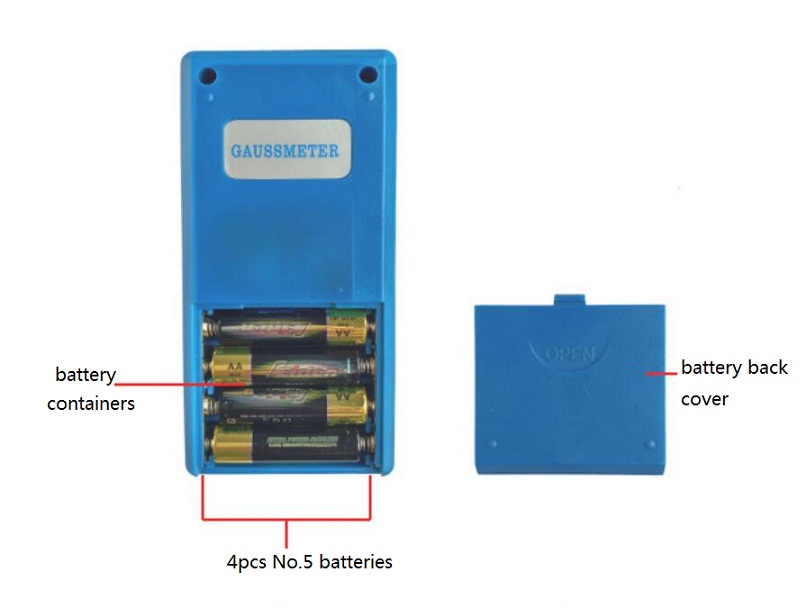

11.power supply: six section 5 dry battery external 9V power supply
12. exterior size: 150mm (L) * 70mm (W) * 30MM (H)
13. Instrument weight: 450g
14. Display mode: 4 1/2 LCD
15.Display unit: mT/Gs

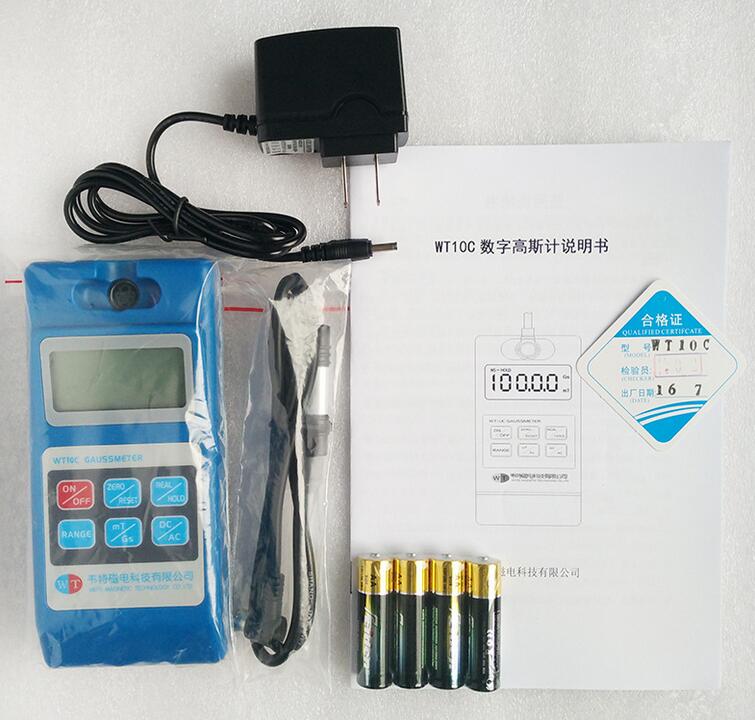

Package List:
- 1 x Tesla Meter WT10C Digital Gauss Meter
