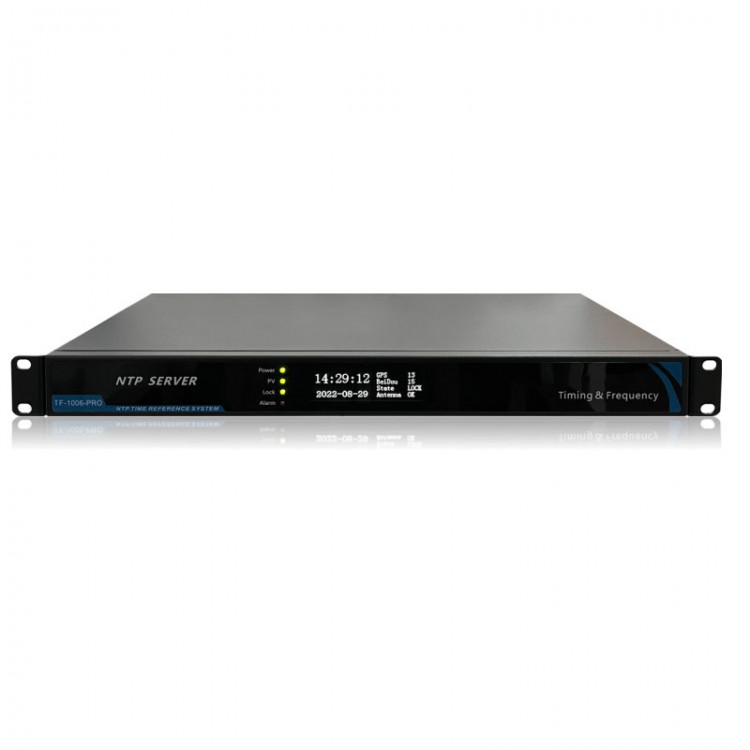

TF-1006-PRO NTP Server Network Time Server NTP Time Reference System IRIG-B Serial Message
Version Configuration:
- Support AC and DC power supply (DC input voltage 9-36V)
- One 1000Mbps port and five 100Mbps ports
- With sine 10M ordinary OCXO
- 10m/32.8ft antenna
Introduction:
The TF-1006-PRO is a stratum 1 NTP server with an integrated GNSS receiver. it provides 1PPS, IRIG-B, 10MHz, TOD and NTP outputs. The NTP server uses GNSS signals from GPS, GLONASS, Beidou, Galileo and QZSS as the primary time source for synchronization.
The time server can use its built-in OCXO (Oven Controlled Crystal Oscillator) as autonomous time base for providing several days of accurate holdover in case that GNSS signals are not available.
The time server has 6 ethernet ports isolated physically, the ports have no communication with each other to ensure network security.
The NTP server is in a 19-inch 1U chassis with rack mount ears for installation.
Key Features:
- NTP accuracy 0.5-2ms
- 6 ethernet ports with full physical isolation to ensure network security
- OCXO (Oven Controlled Crystal Oscillator)
- 1PPS accuracy: 15ns (1σ)
- Holdover: 30us/24hrs (OCXO)
- Frequency accuracy 1.0E-12 (one day average)
- Frequency holdover 5.0E-10 (24hrs)
- Web UI monitoring and management
- Multi-GNSS receiver (GPS, GLONASS, Beidou, Galileo and QZSS)
- NTP v2 (RFC 1119)，NTP v3 (RFC 1305)，NTP v4 (RFC5905)
- SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)
- NTP md5 authentication
- NTP Unicast and Broadcast mode
- 1PPS output
- 10MHz output
- IRIG-B output
- ToD output (NMEA ZDA or RMC)
- GPSd is supported via ethernet port 1 (TCP protocol, port 4001)
- RTC
- OLED display
- Power consumption <10W
Specifications:
- Timing accuracy: 15ns (1σ)
- Timekeeping accuracy: ≤ 50us (normal OCXO)
- Frequency accuracy: Better than 1.0E-12 (24 hour average); better than 5.0E-10 (keep 24 hour)
- Short-term stability (T=1s): better than 1.0E-11 (ordinary OCXO)
- IRIG-B: IRIG-B 000, supporting GJB 2991A-2008
- TOD: GPZDA or GPRMC
Package Included:
- 1 x NTP Server
- 1 x 10M/32.8FT Antenna
