TF-GNSSDO-10 GPSDO Frequency Standard NTP Server (w/ DOCXO & 32.8FT Antenna) for GPS Beidou GLONASS

Availability: In stock, usually dispatched in 1 business day

  • Price:$620.08
  • Price in reward points: 6201 Reward Points: 62
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $607.68 $595.28 $576.67 $551.87 Contact US
Quantity:

TF-GNSSDO-10 GPSDO Frequency Standard NTP Server (w/ DOCXO & 32.8FT Antenna) for GPS Beidou GLONASS

Features:

- GNSS disciplined clock
- High frequency accuracy
- NTP; IRIG-B
- High and low temperature resistance
- OCXO and high precision
- Supports Beidou, GPS, GLONASS, Galileo and QZSS. In the case of unsatisfactory antenna installation, it can still receive available satellite signals
- Supports the function of time-stamping external input trigger signals. Timestamp accuracy up to 10ns
- Supports web management interface
- Meets G.811 PRC MTIE template
- Meets G.811 PRC TDEV template
- Very low phase noise (DOCXO)
- Very high frequency stability (DOCXO)

Specifications:
- Time accuracy: 15ns (1σ)
- Timestamp accuracy: 10ns
- Timekeeping accuracy: ≤5us (DOCXO)
- Frequency accuracy: Better than 1.0E-12 (24 hour average); better than 5.0E-10 (keep it on for 24 hours)
- Short-term stability (t=1s): Better than 2.0E-12 (DOCXO)
- Phase noise: DOCXO: -130dBc/Hz at 10Hz, -150dBc/Hz at 100Hz, -158dBc/Hz at 1KHz and -160dBc/Hz at 10KHz
- IRIG-B: IRIG-B 000, supporting GJB 2991A-2008
- TOD: GPZDA or GPRMC

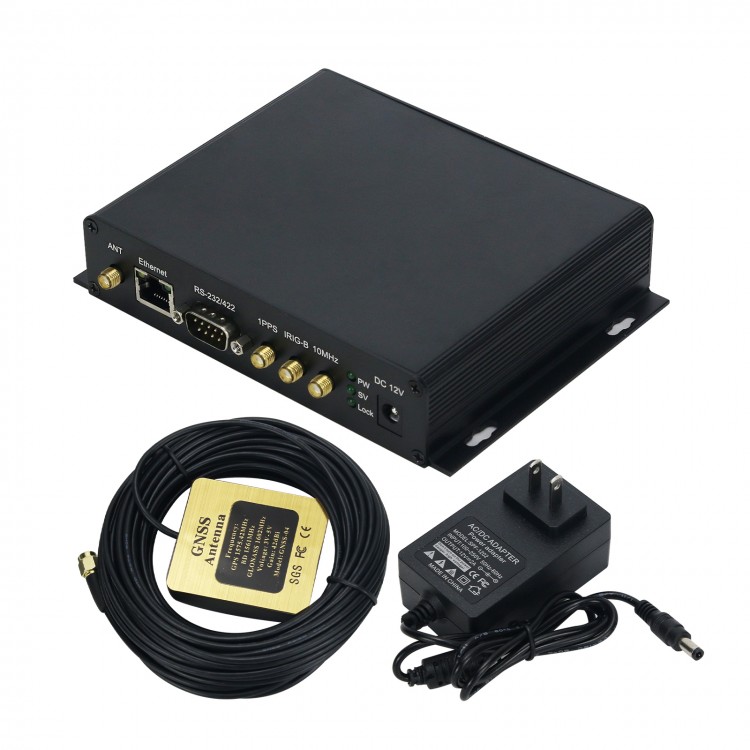

Package Included:
- 1 x GPSDO
- 1 x 10M/32.8FT Antenna

Packaging Details:

- Weight: 1.5kg
