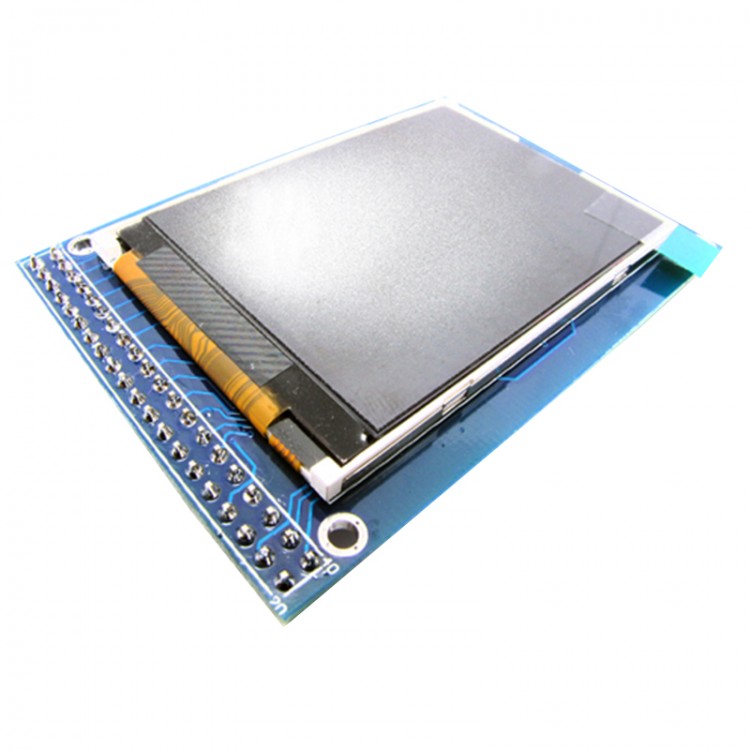

TFT01 2.4'' Color Touch Screen LCD Module LCD Module with Super Library IC, SD c
Description:
- TFT01-2.4 is a 2.4'' TFT LCD module with with 40 IO, it is not just the LCD module, and also includes an SD card slot, whether with touch functionality.
- Operating voltage 3.3V
- TFT01 LCD screen with 65K colors, 320x240 resolution, 2.4'' size, wide viewing angle
- Screen control IC is ILI9325, supports 8/16 of the screen, where the IO also limited support for SD cards, so all 8 Bit unified modules do not provide 16 TFT01 LCD
- 40 IO convenient control with LCD bus, SD cards and touchscreen bus.
- Use the back of the module the user through the PCB pad set j3 8/16 bit interface, short j3 pad module operates in 16-bit mode, not less then working in 8-bit mode, the module is not less then shipped by default, which is the cargo default is 8-bit interface, 8-bit mode only high 8 (ie DB8-DB15, DB0-DB7 is not connected to ground or open). 8-bit interface occupies more than 16 IO IO interfaces occupy less eight, but slower, 16-bit interface occupies more than 8 IO, but faster).
