TG201 TG' Signal Pro 4-20mA Current Signal Generator Simulator 24V Current Voltage Signal Generator

TG201 TG' Signal Pro 4-20mA Current Signal Generator Simulator 24V Current Voltage Signal Generator

Advantages:
- Power supply mode: external USB-5V and built-in lithium battery
- one key to switch voltage and current adjustment, and input and output displayed at the same time

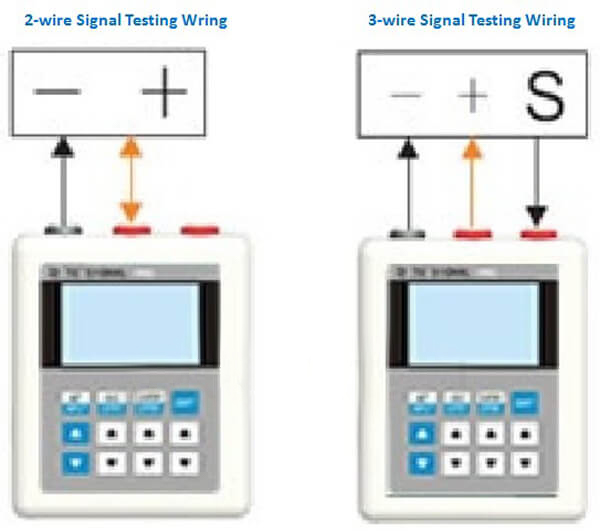

- Current output can be two-wire and three-wire; Compatible with passive and active modes
- Output with short-circuit and surge protection
- Multiple output ranges: 0-5/10/12V/1-5V, etc.; 0-20/0-24/4-20mA and the like
- Multiple display methods: actual value and percentage of voltage and current
- Quick to set value via key coarse and fine adjustment
- Lithium battery with charge and discharge over-current protection, charging automatic management, and electric display indication
- LCD display with two-digit high-precision indication; Supports single and dual tasking modes
- Its shell is beautiful and comfortable to hold
- Pluggable terminal blocks make it easy to install and carry

Features:
- 1.7" 12864 LCD display and quick button operation
- Multiple display modes can be set: single-task mode, voltage and current display, dual-task mode and percentage display
- Voltage output range: 0-5.00V, 0-10.00V, 1-5.00V, 0-12.00V and customized
- Current output range: 4-20.00mA, 0-20.00mA, 0-10.00mA, 0-24.00mA and customized
- With imported chip for stable and reliable performance, it supports uninterrupted operation. It uses MOSFETs, industrial-grade chips, imported power chips and GPU chips, and instrument chips to ensure high accuracy and stability. The signal generator can be operated uninterrupted for a long time
- Active current output: range 0-24 mA, resolution 0.01 mA, and maximum load 750 Ω
- Passive current output: range 0-24 mA, 0.01 mA resolution, external supply up to 30V
- Voltage output: range 0-12 V, resolution 0.01V
- The current and voltage have automatic output function. Users can set single rise, single descent, and cycle modes
- 24V voltage output: drive current 24mA, with loop current display
- Current input measurement: range 0-24 mA, resolution 0.01 mA
- Voltage input measurement: range 0-30 V, resolution 0.01 V
- It has input to output conversion mode, which is divided into voltage conversion active current mode, passive mode and current conversion voltage mode
- Fast output mode: No matter what output mode, you can enter the corresponding fast output mode with one click
- The output has a custom function, and the upper and lower output limits can be set
- It adopts 128*64 graphic dot matrix screen display, which has a large viewing angle, rich display content, and backlight display, even in a dark environment
- Adopt original imported high-performance ultra-low-power MCU, power management chip and low-power design to prolong the battery life
- Adopt large-capacity lithium-ion rechargeable battery
- Perfect input and output port protection circuit effectively protects instruments from being damaged in the case of wrong wiring
- When using different functions, the display screen prompts the corresponding wiring port and polarity, which is convenient for correct wiring
- This product with good hand feeling and beautiful appearance
- Simple operation
- Programmable output

Power Supply Modes:
- USB universal interface: can be connected to power bank/charger/computer USB port, etc.;
- Built-in 3.7V 2000mAh lithium battery (The charging and discharging circuit is retained, and the user can access the charging and discharging circuit.) When an external power supply is connected, it will automatically charge the battery).

Technical Parameters:
- The maximum charging current of 3.7V 2000mAh lithium battery is 0.5A
- External USB-5V: Current 0.2A (on) and 0.5A (off)
- Voltage output 0-12V adjustable, accuracy 0.1%FS, maximum current 24mA, with short-circuit protection
- Current output 0-24mA adjustable, accuracy 0.1%FS, and current sampling
- Resistor 0-1000Ω can be short-circuited
- 24V voltage output, drive current 24mA, and error 10%FS
- 0-24mA current input, 100Ω input impedance, and 0.1%FS
- 0-30V voltage input, 2.5MK input impedance, and 0.2%FS
- Process control: can set rise and fall values to run automatically
- Size: 90 x 78 x 28mm/3.5 x 3.1 x 1.1"

Package Included:
- 1 x Signal Generator
