Thermal Imager Micro Temperature Measuring Module Portable Cellphone Night Vision Temperature Sensor (Male Type-C Connector)

Thermal Imager Micro Temperature Measuring Module Portable Cellphone Night Vision Temperature Sensor (Male Type-C Connector)

Features:
- Good system compatibility, can run on systems for Windows, Mac, Linux, Android, IOS, ROS and others. Just need the platform to support WiFi and have a browser, no need to download any apps.
- Supports up to 5 clients for synchronous display, screenshot saves the image, and recording the video, making it convenient and fast.
- Supports wired and wireless connections, and wireless connections only require power supply to the module.
- Convenient network configuration method, automatic scanning of available WiFi, just open the webpage and enter the password to complete the network configuration.

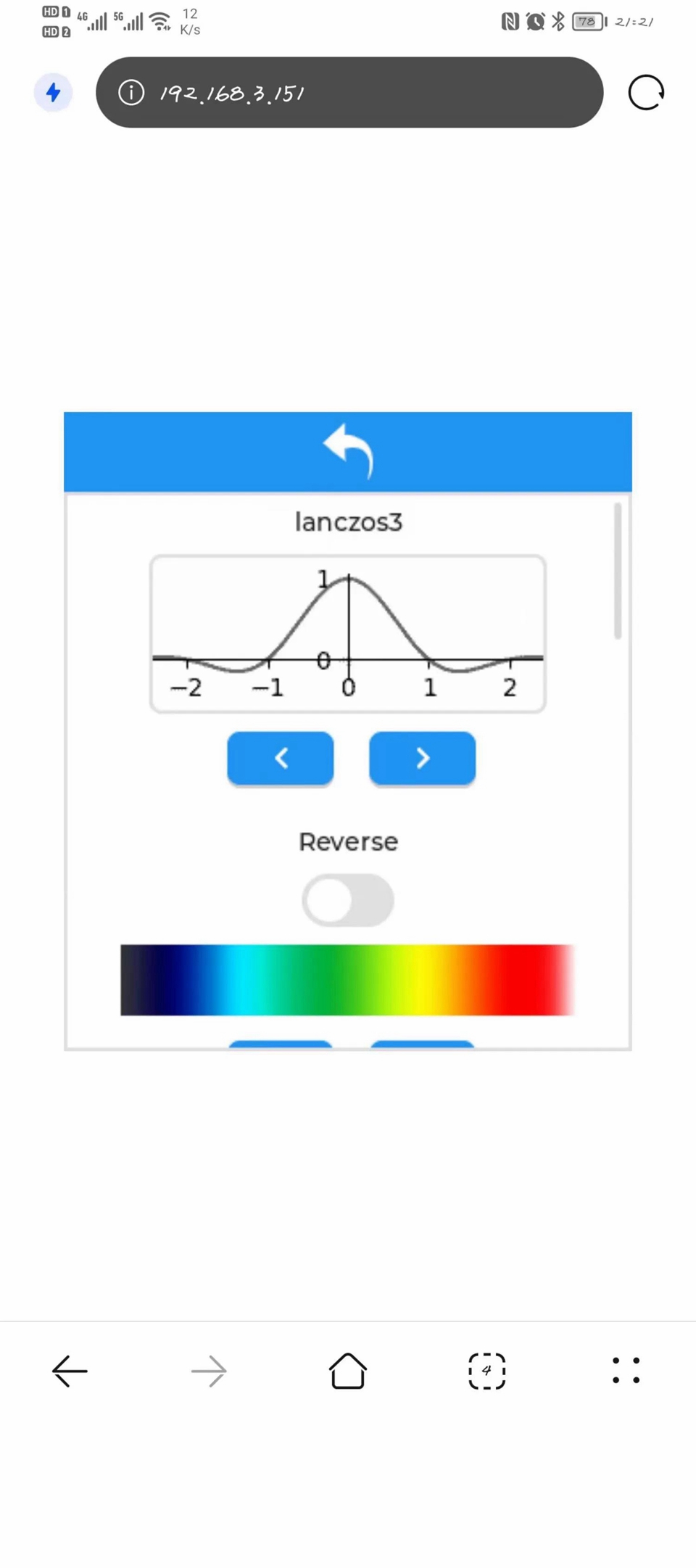

- Providing powerful algorithm support, offering up to 17 types of smoothing filters for better display effects.

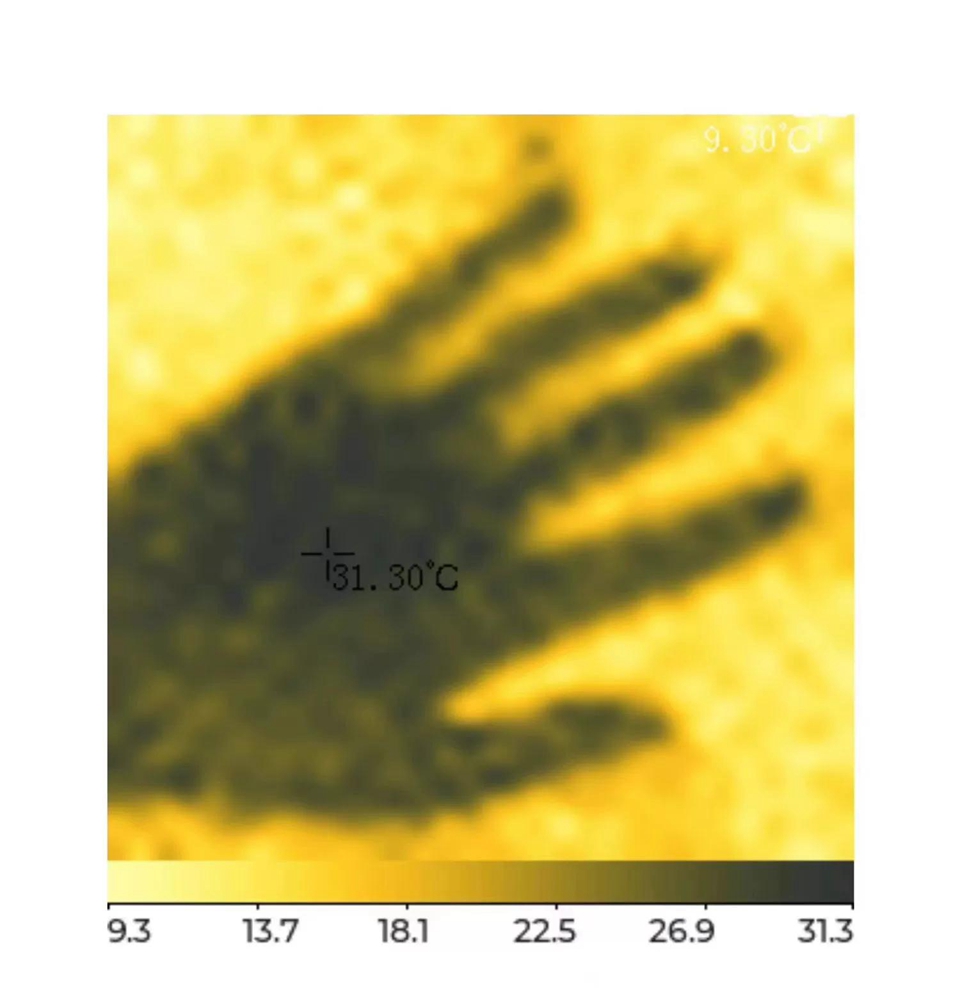

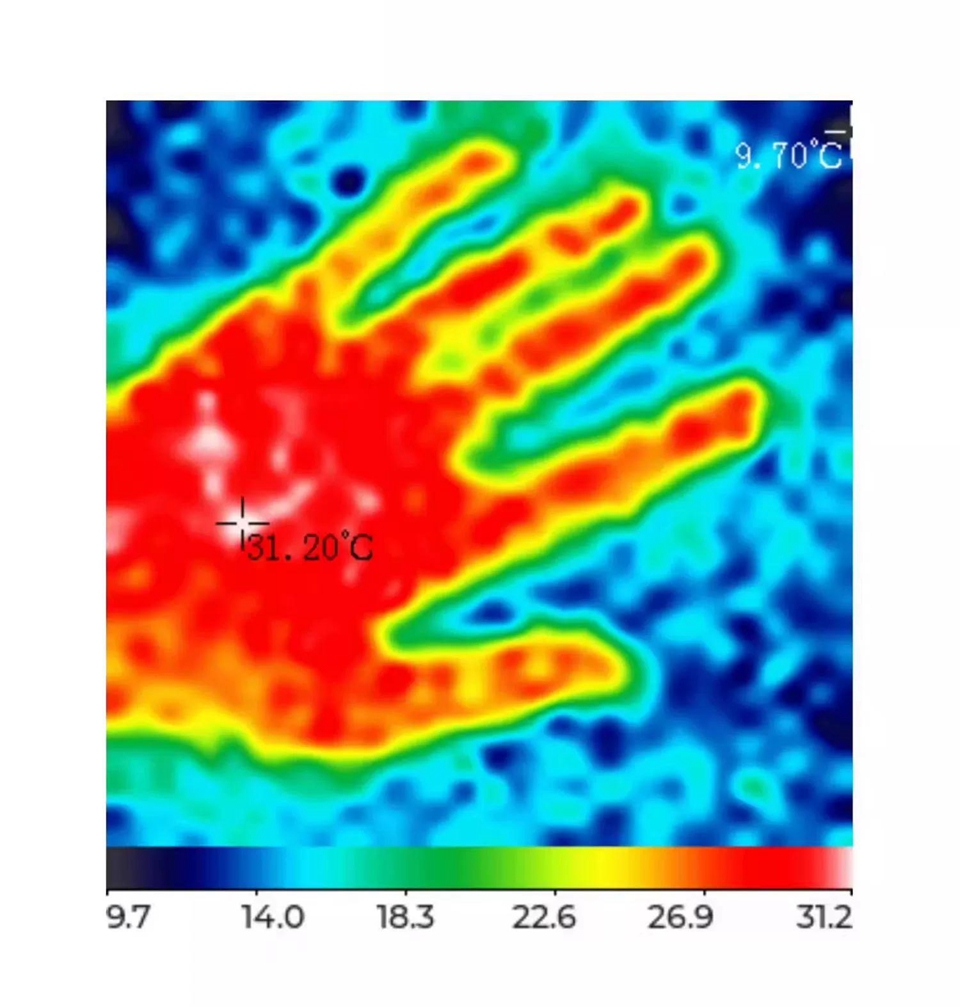

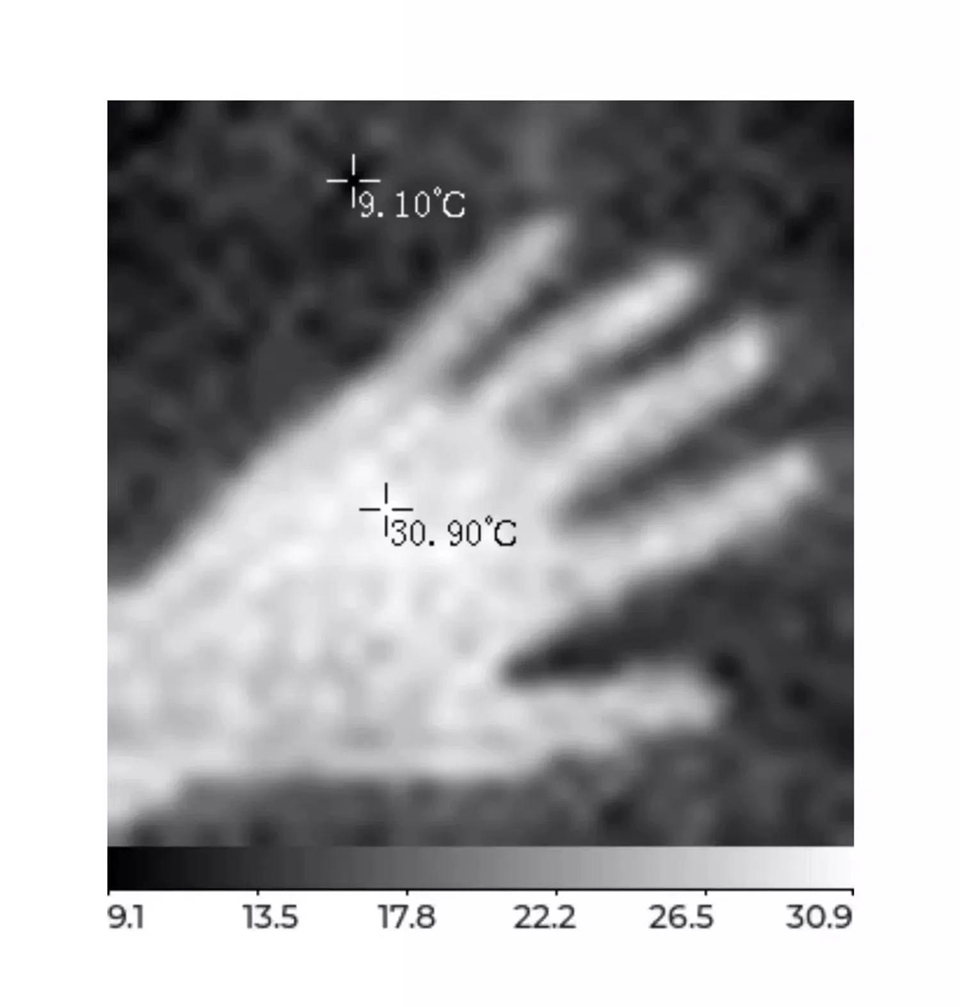

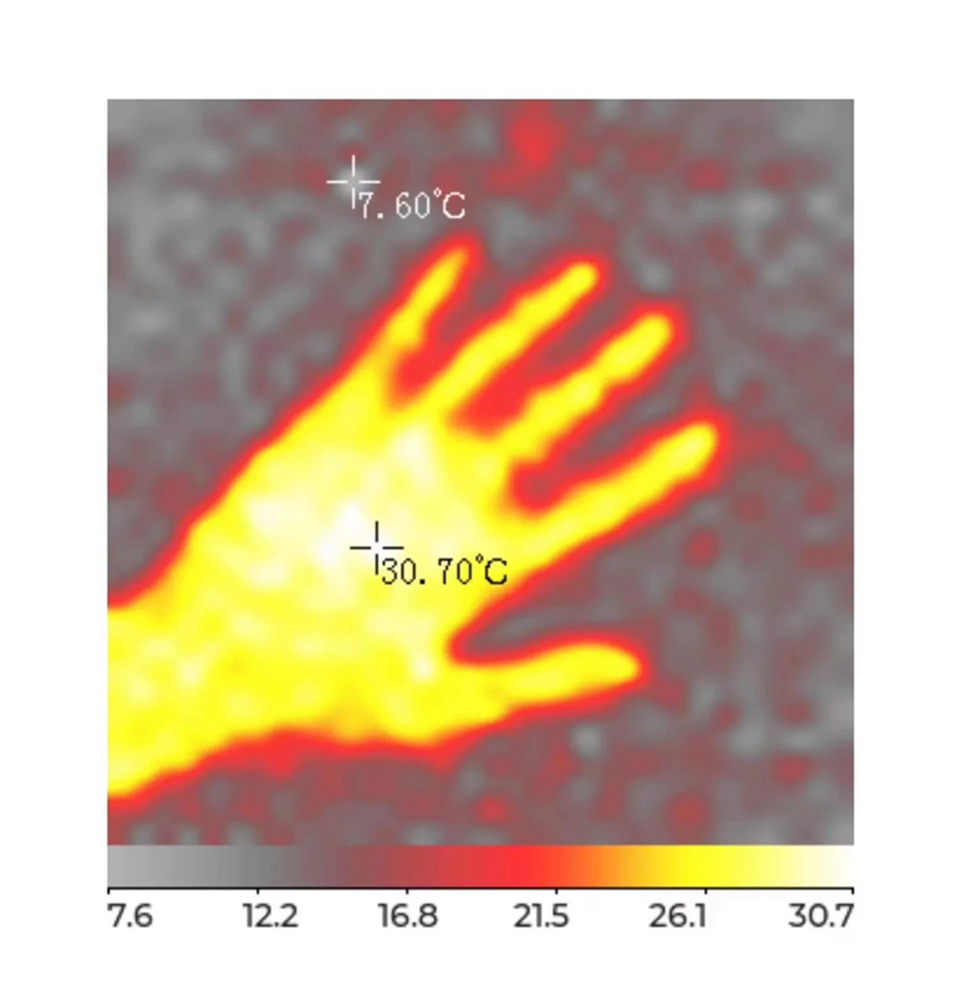

- Providing up to 31 temperature ruler color schemes, each with different display effects. The color scheme can be flipped.
- Support calibration of the highest and lowest temperatures, as well as fixed-point temperature measurement.
- Support reflectivity adjustment for more accurate measurement of object temperature.
- Support gamma correction, which can enlarge the details of the low-temperature or high-temperature range.

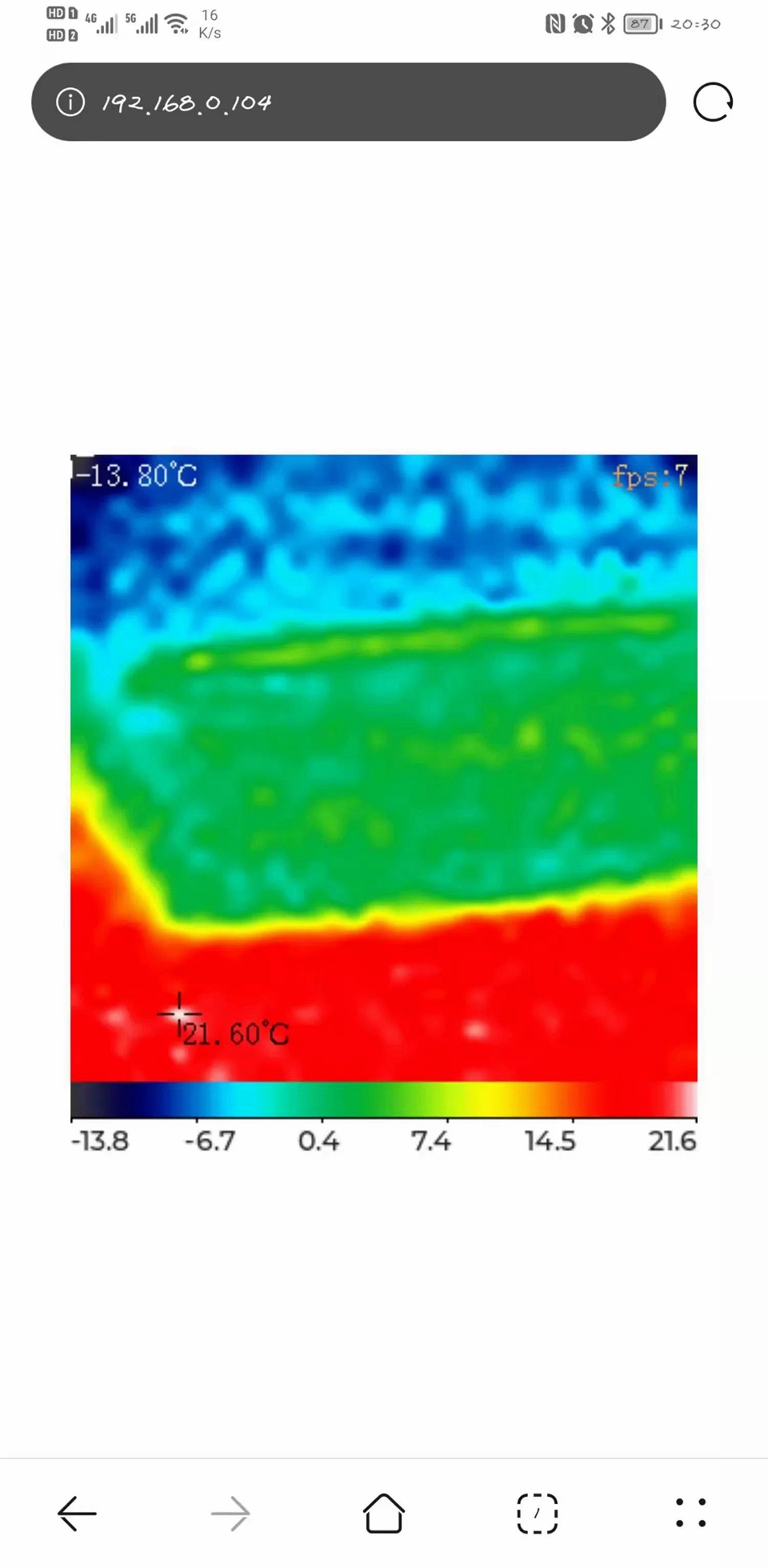

- Support the display of the frame rate of the image. The average frame rate can reach 7.5 FPS.
- Support the display of temperature curves for fixed-point temperature measurement and the downloading of temperature data for easy experimental observation.
- Support manual setting of distance compensation and temperature drift compensation.
- The screen supports left and right mirroring, up and down mirroring, and 360 ° rotation, making it convenient for installation at various angles.
- The temperature gauge supports automatic setting of temperature measurement intervals and manual adjustment of temperature measurement intervals.
- Convenient upgrade method, open the webpage to perform firmware upgrade without connecting to the computer.

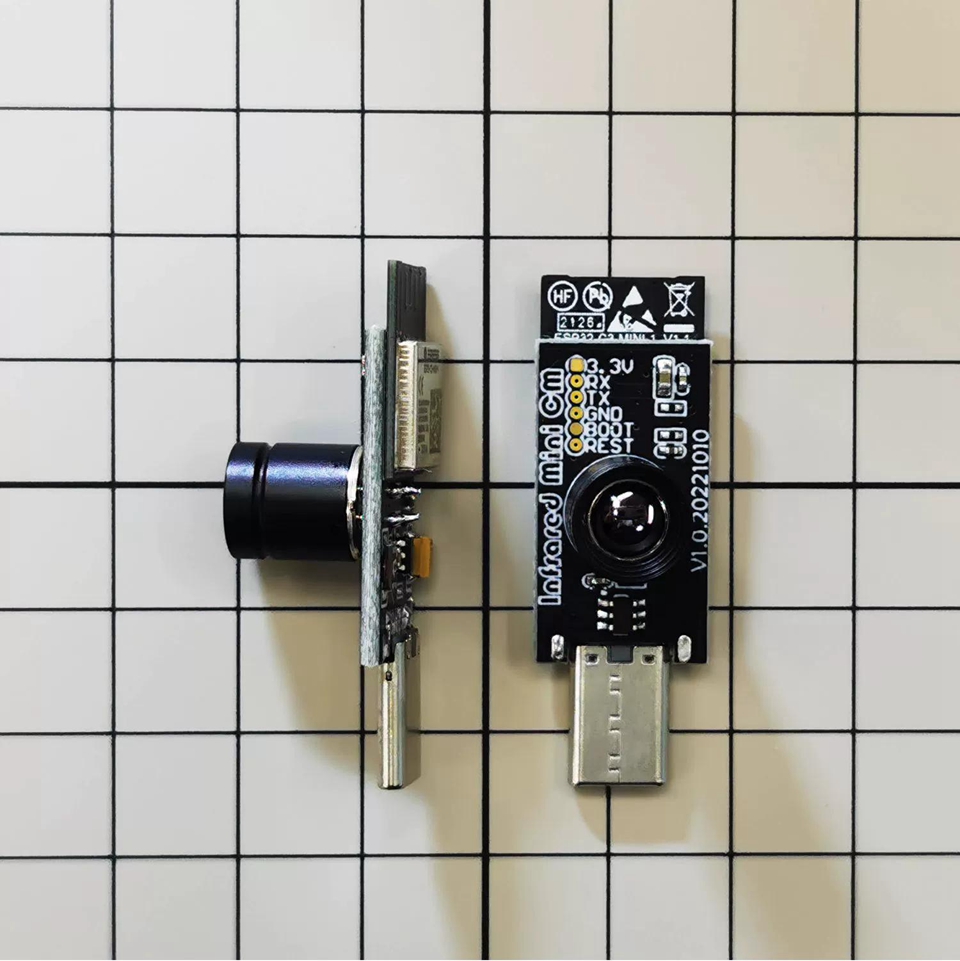

- The ultra small product size is 36.55mm long, 15mm wide, and 17mm high, making it easy to store and carry for daily use.
- Providing the source code for the upper computer, which can be connected to the upper computer through USB, TCP, and UDP, making development convenient. "Secondary development requires a relevant programming foundation and we do not provide programming development technical support."
- Imported genuine electronic components, PCB sinking technology, with superior electrical performance.

Performance Parameters:
- Sensor pixel: 32 x 32
- Field of view angle: 33° x 33°
- Picture frame rate: 7.5FPS
- Temperature measurement range: -20℃ to >1000℃
- Temperature measurement accuracy: for pixels within the radiation radius, take the larger of "the difference between the target temperature and the ambient temperature multiplied by 3%" or "plus or minus 3 Kelvin".
- The farthest temperature measurement distance: it depends on the size of the heating area and the temperature difference between the heating object and the environment. Generally, the temperature of the human body can reach around 10m.

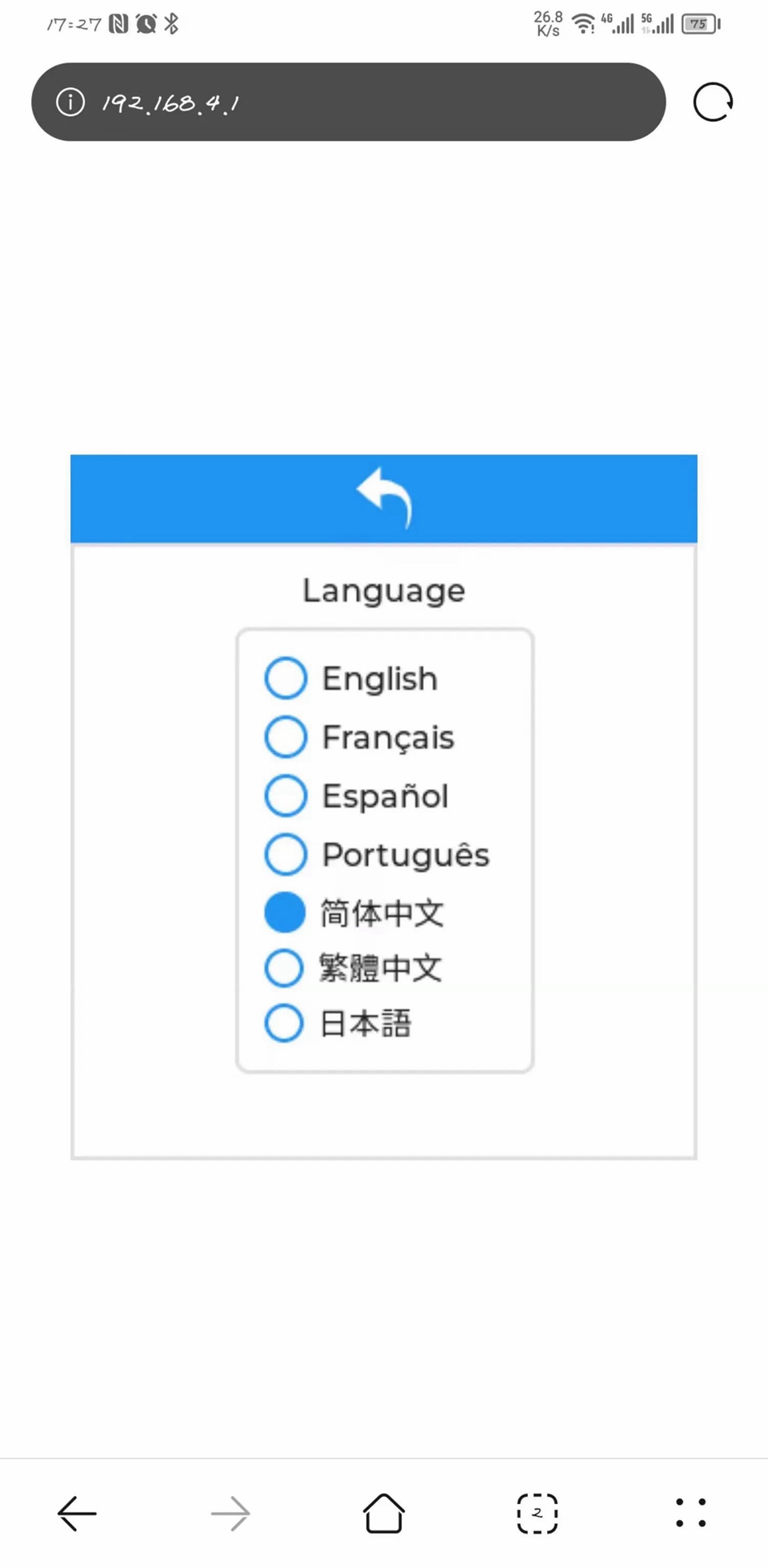

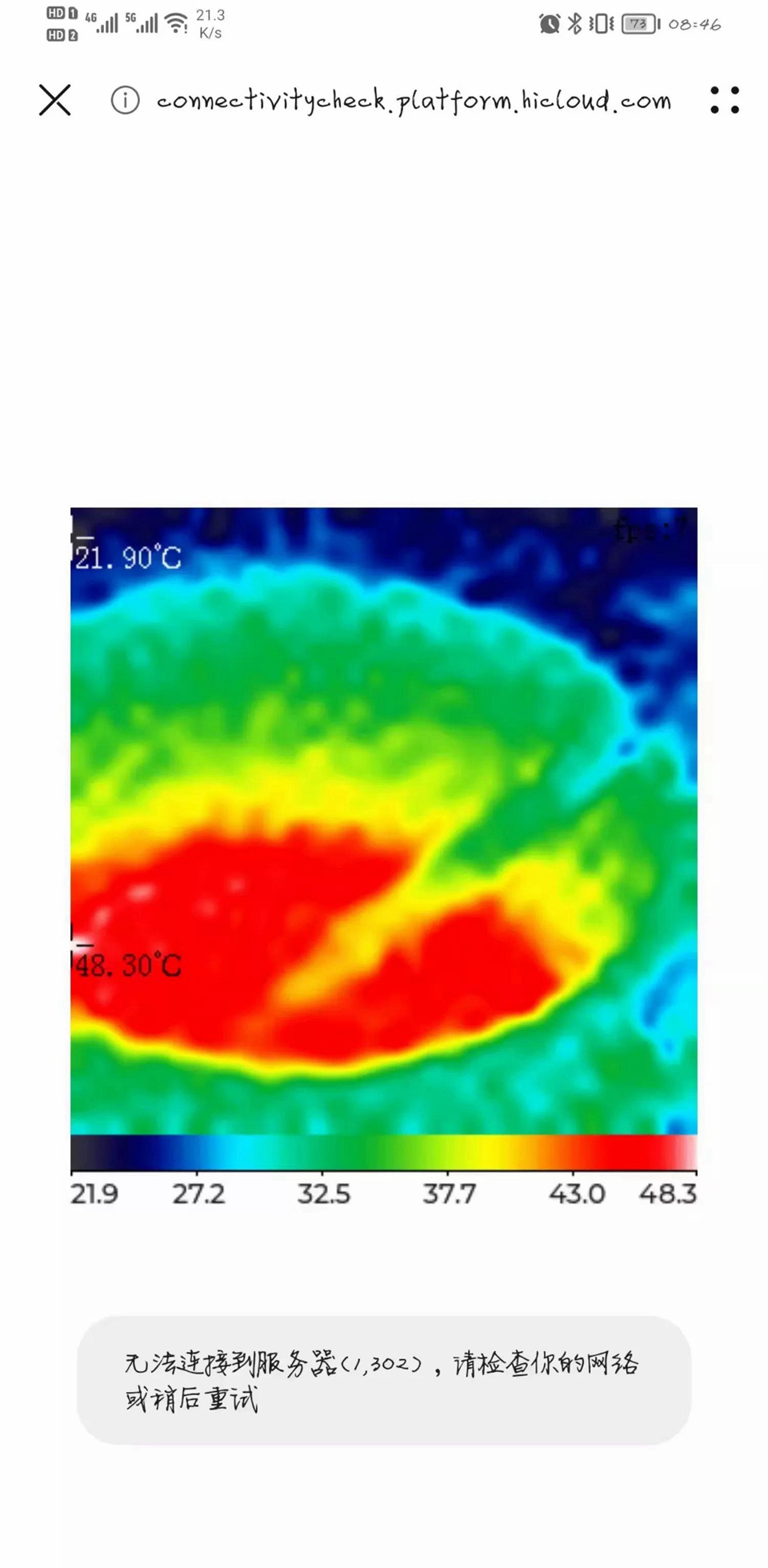

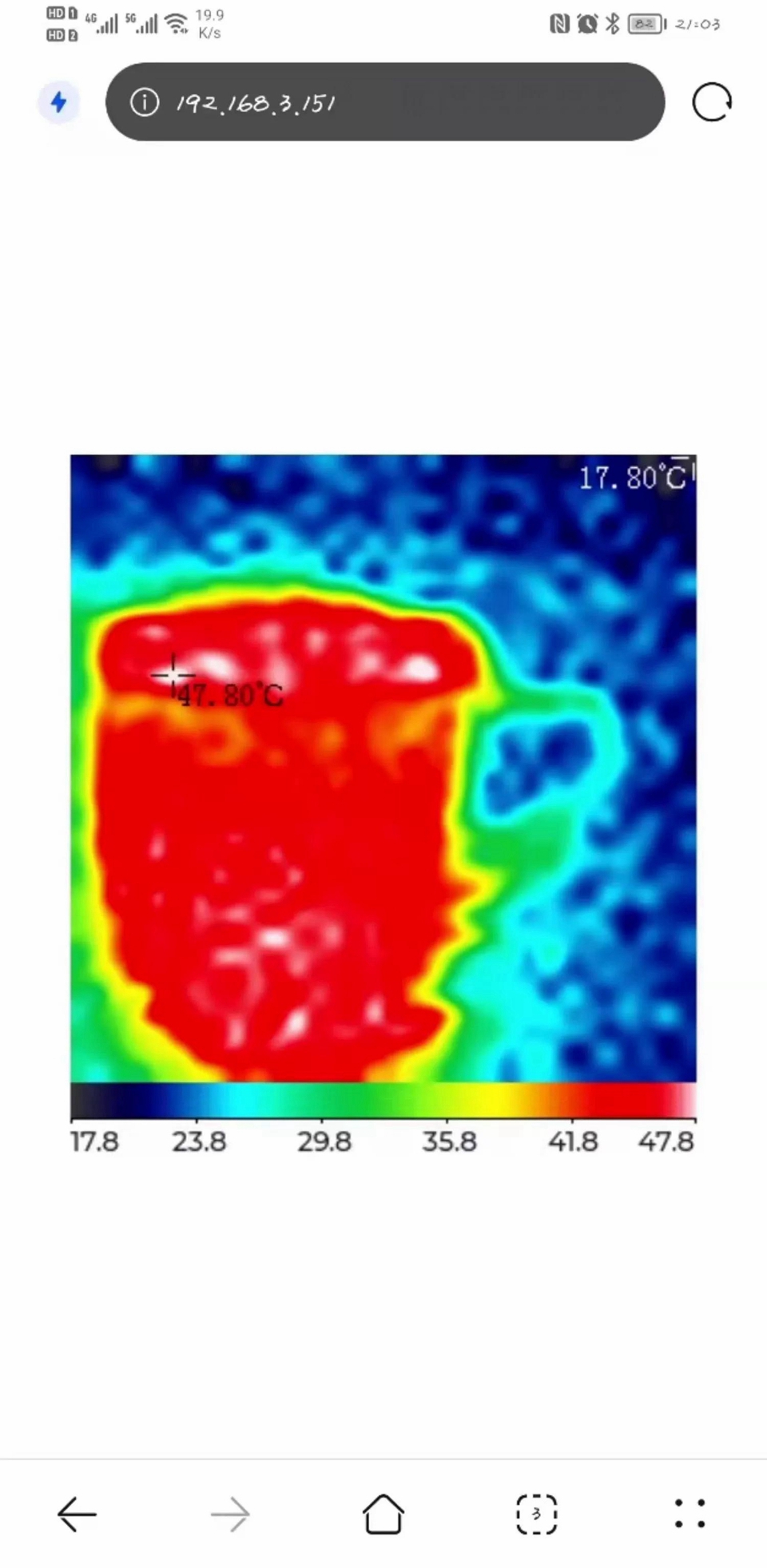

- Quick use upon arrival: When the module is powered on and the red light is on, search and connect to the module hotspot "INFRARED". Open the browser on your phone or computer and directly access the IP address "192.168.4.1" to display the imaging screen.

Precaution:

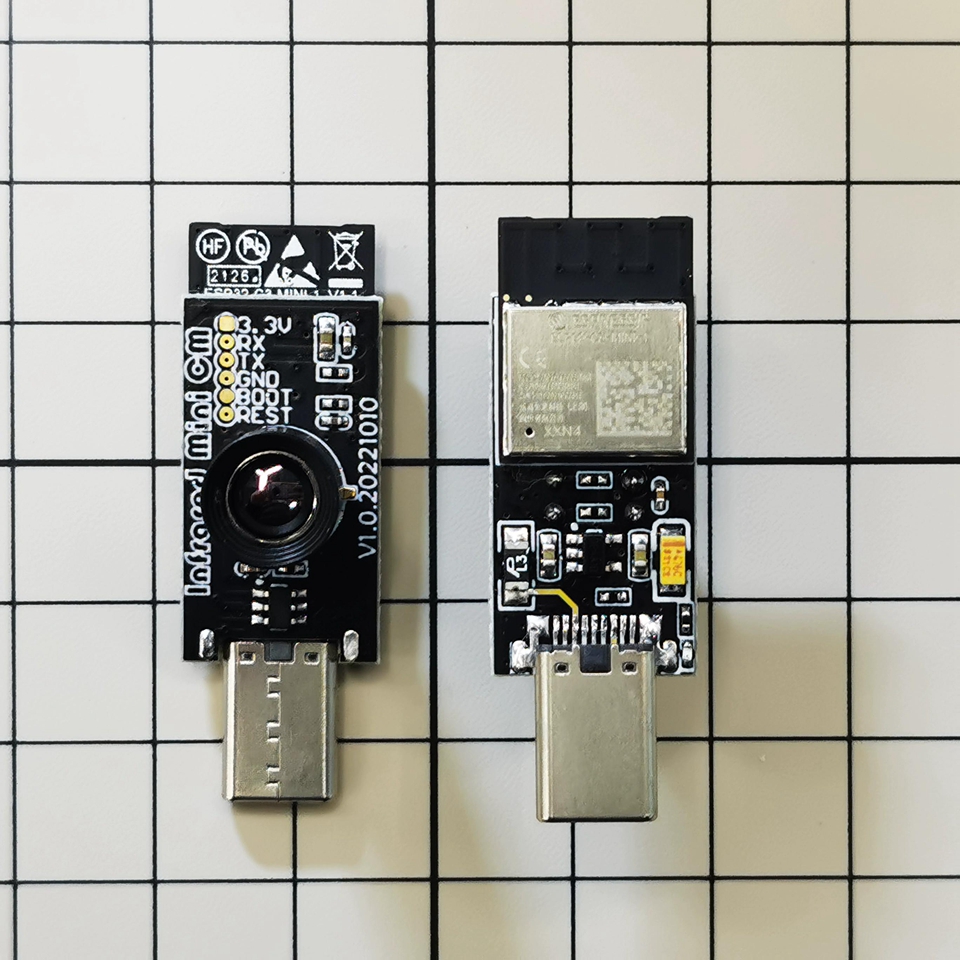

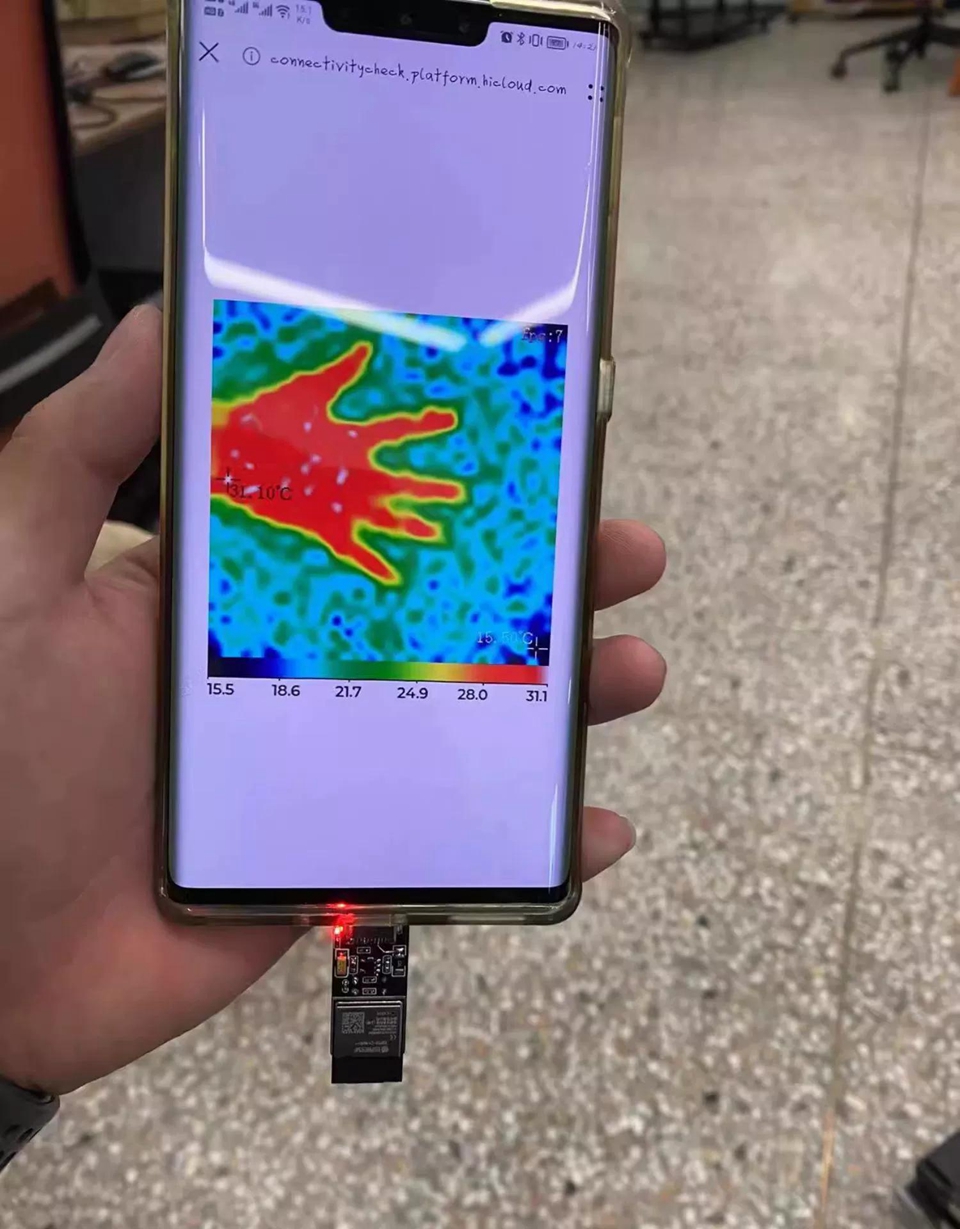

- The male and female connectors only have different power supply methods, and their functions are basically the same. Female connector version, can be connected to an adapter or power bank via a data cable, long-lasting! Male connector version can be directly plugged into Type-C port phones, portable! [Data cables and power adapter are not included.]
- For a better using experience, please do not use this product on the mobile phone for MediaTek platform.

Package Included:
- 1 x Sensor Module
