Tags: Linear Guide Rail
| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $165.88 | $162.50 | $157.42 | $150.65 | Contact US |
LD60-RM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-CM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-LM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
Features:
- Extra support unit to enhance stability
- Special made motor with max speed up to 1200rpm
- Quality ball screw with accuracy up to 0.05mm
- Oxided Alu. to avoid rusting
- M4 screws on sideways to install end stop
- Effective Stroke L: 400MM
Specification:
Ball screw:
- Model No.: G1605
- Dia.(mm): 16
- Lead(mm): 5
- Accuracy Class:C7
Motor:
- Model No.: FM5756SFD04
- Step angle: 1.8 degree
- Motor flange size: 57mm
- Motor Length: 56mm
- Holding torque: 0.95N.m
- Current: 2.0A
- Resistance: 3.0+/-20% Ω
- Inductance: 3.19mH
- Rotor inertia: 200 g.cm,2
- Lead wire: No.4
Load Capacity:
- Max Horizontal Load: 40kg
- Max Vertical Load: 10kg
- Max Horizontal Speed: 140mm/s (0-10kg);80mm/s (10-20kg)
- Max Vertical Speed: 100mm/s(0-10kg)
Package List:

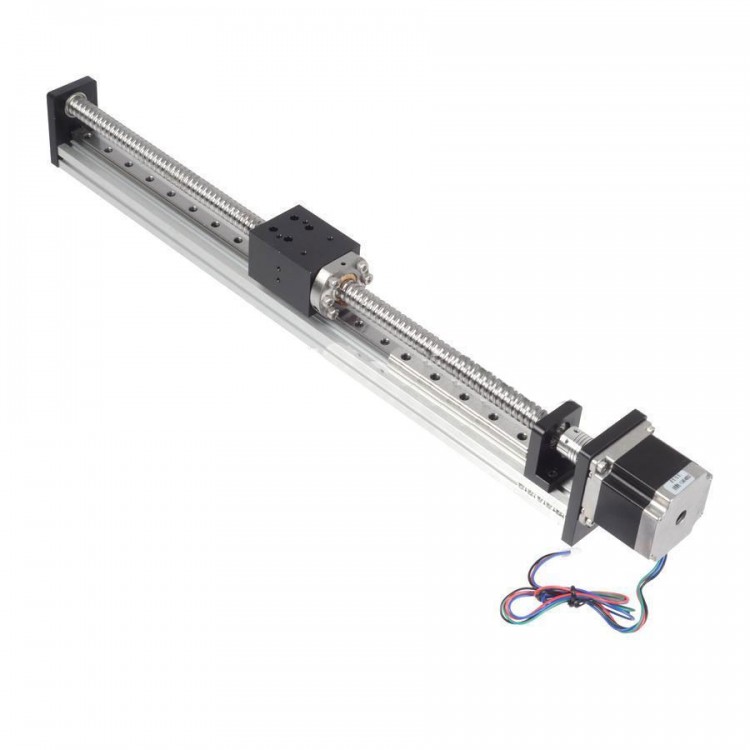

- 1 x Threaded Rod Linear Guide Rail with Motor and Ball Screw for CNC Linear Actuator 400MM
