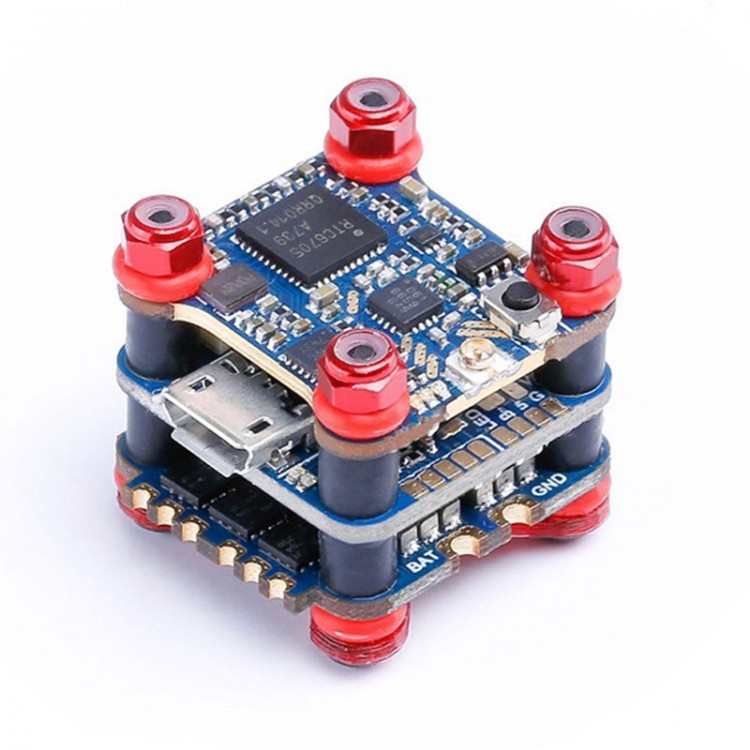

Three-Layer SucceX F4 Flight Tower F4 Flight Controller & 12A 2-4S 4-In-1 ESC & PIT/25/100/200Mw VTX

Three-Layer SucceX F4 Flight Tower F4 Flight Controller & 12A 2-4S 4-In-1 ESC & PIT/25/100/200Mw VTX

Description:
The iFlight SucceX MicroVTX is developed for small aircraft. With plug-to-play pin, it is easy for installation and maintenance. It is designed with adjustable powers PIT/25/100/200. Compatible with IRC Tramp, it can change transmission frequencies, powers, and flight controllers' parameters. PIT mode allows you to plug in safely without disturbing other flying aircraft.

iFlight SucceX MicroF4 flight controller is special for small aircraft, with mounting hole 16*16mm. With plug-to-play pin, it is easy to install and maintain. The F411 microcontroller and the MPU6000 gyroscope are equipped to optimize flight performance. With built-in programmable RGB LED interface, it can be connected to external LED, through which, you can set the color of LED, its functions, and even status. Thanks to its built-in OSD chip, you can monitor the flight status of the flight at any time.

The iFlight SucceX Micro12A is a four-in-one ESC developed for small aircraft. It uses pin linkage to facilitate the installation and maintenance. The semi-extended structure of the ESC pad does not take up space and is stable. Its mounting hole is 16*16mm. It supports 2-4s input, continuous 12A current, BLHELI_S firmware, Dshot 600 and other protocols.

Technical Parameters:
SucceX Micro VTX:
- Size: 17mm*27mm
- Mounting Hole: 16*16mm
- Weight: 1.6g
- Power: PIT/25/100/200mW
- Antenna Interface: IPEX (UFL)
- Figure Transfer Protocol: IRC Tramp

SucceX Mirco 12A 4-In-1 ESC:
- Size: 23mm*21mm
- Mounting Hole: 16*16mm
- Weight: 2.7g
- Input Voltage: 2-4S LIPO
- Continuous Current: 12A
- MCU: BB21F16G
- BEC: None
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.

SucceX Micro F4 Flight Controller:
- Size: 21mm*21mm
- Mounting Hole: 16*16mm
- Weight: 2.5g
- Single Chip Microcomputer: STM32F411
- Gyro: MPU6000
- UART Port: 2
- Firmware: MATEKF411

Package Included:
- 1 x Flight Controller
- 1 x 12A ESC
- 1 x PIT/25/100/200mW VTX
- Other Accessories

Note:
- Please note that assembling is needed.
- Battery is not included in this package.
