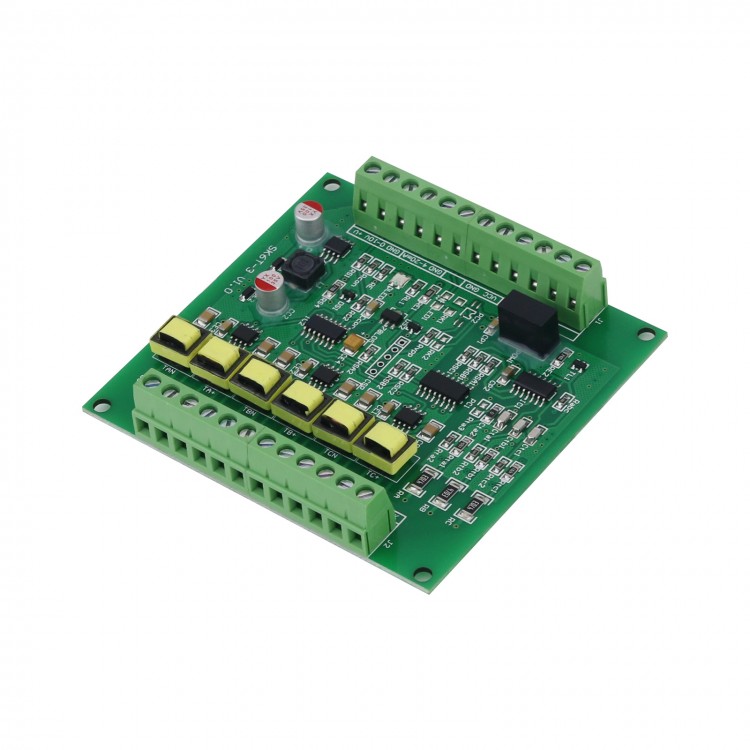

Three-phase 3-Wire Thyristor Phase Shift Trigger Board High Quality Rectifier Cabinet Control Board
Specification:
- AC synchronous signal amplitude: 3-phase 3-wire, linear voltage 380V/50Hz
- Trigger board working power: DC12 ~ 24VDC, current < 0.5A
- Controlling signal: DC0 ~ 10V (input resistance > 50Kohm) or 4 ~ 20mA
- Trigger pulse: 110 degree (pulse width); 400mA (peak current); maximum pulse asymmetry angle < 0.25
- Phase shift range: 0 ~ 180 degree
- Insulation voltage: the synchronous signal input, trigger signal output, and trigger control parts are isolated by optocouplers and transformers, with a dielectric strength of 2500V/AC above.
- Working temperature: -10 ~ 40℃
- Relative humidity: < 85%
Package Included:
- 1 x Control Board
