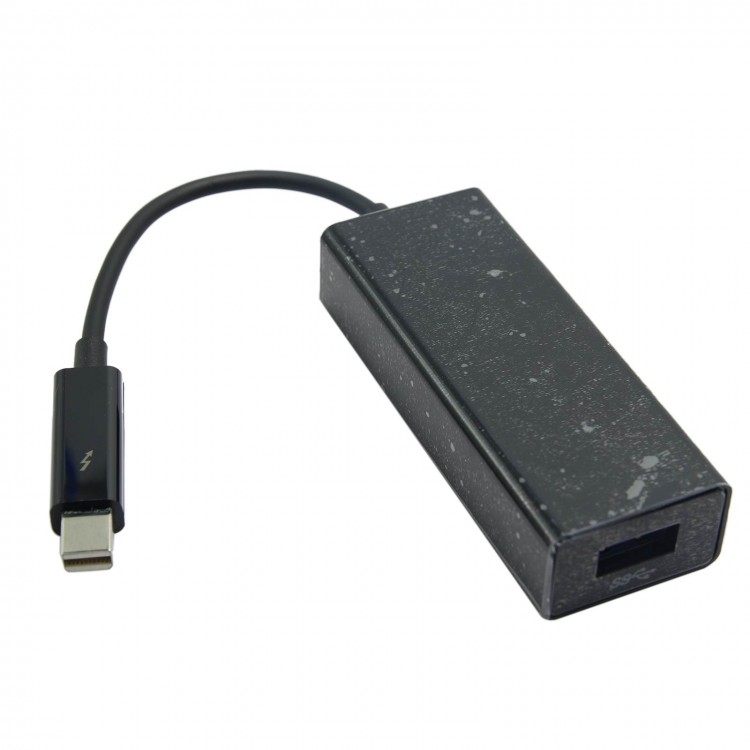

Thunderbolt Port to USB 3.0 Super Speed Hard Disk Drive Adapter Dongle for Apple MacBook iMac 2014 2015
Features:
- Easily connect your Thunderbolt-equipped Mac or PC to an USB device with the Thunderbolt to USB 3.0 Adapter.
- Small and compact, it connects to the Thunderbolt port on your Mac or PC computer, giving you an extra USB 3.0 port.
- Set-up is easy.
- Simply connect an USB device to the Thunderbolt adapter, and then plug into the Thunderbolt port of your Mac or PC.
- Use the extra USB port to connect extra peripherals.
- For even greater expandability, add the 4-port USB 3.0 hub and access up to 4 USB 3.0 devices at the same time.
- Thunderbolt to USB 3.0 Dongle.
- The cable connect to host systems or devices' Thunderbolt connector and transform Thunderbolt signal to USB 3.0 signal for applications.
- Thunderbolt to USB 3.0 dongle provides a turn-key solution for upgrading device from PCI Express design to high-speed Thunderbolt devices.
- This document specifies the electrical and mechanical properties of Thunderbolt to USB 3.0 Dongle.
- An electrical cable that transform Thunderbolt signal to USB 3.0 signal in order to provide great responsiveness with data and a easy turnkeysolution for Thunderbolt applications and devices.
- Can only be used for last Thunderbolt end-point devices in a daisy-chain link.
- Tether design is optimized with respect to providing tethers with high flexibility, good durability, natural buoyancy and minimum drag.
- No need driver for mac OS, need the belowing driver for windows: Click here http://www.connector.cn/driver/tb-022.zip
General Specification:
- Length: 15cm
- Connector: LOTES thunderbolt connector or compatible and USB 3.0 Connector
Thunder bolt Electrical Specification:
- Support Thunderbolt 1 Lane (Lane0) & PCIE Gen2 1x2 or 2x1 Operation
- Throughput: TBT side: 10Gbps, PCIE side: compatible with standard PCIE 2.0
- Link Operating Power Consumption: < 0.5W
USB 3.0 Electrical Specification:
- Max Power Consumption :<8.5W
- USB power : 5V/ 1.2A
- USB 3.0: 1.5/12/480/5000 Mbps
- USB 3.0: Specification Version 1.0
- Support USB 1.1 , 2.0, 3.0 device
- Support WOU
Package included:
- 1 x Adapter
