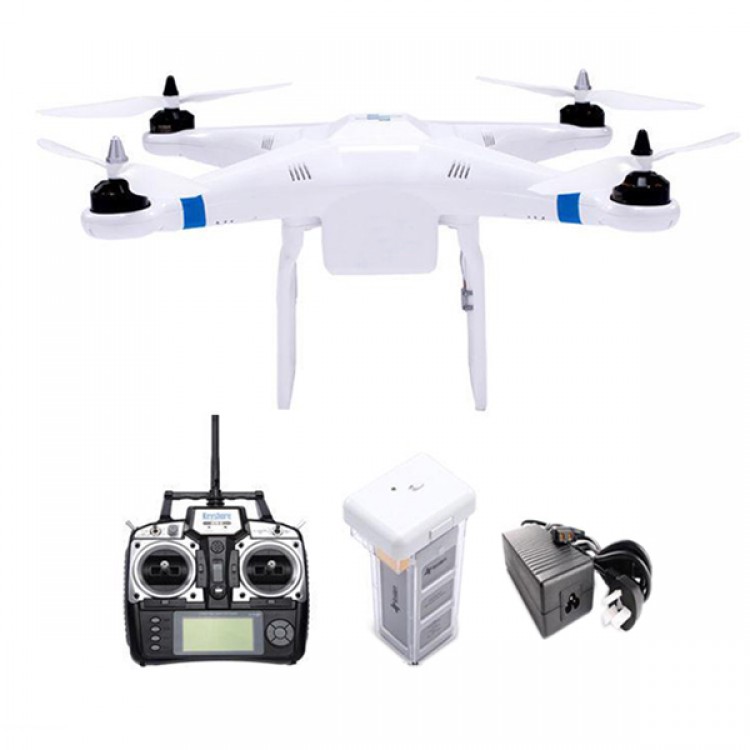

THXB Quadcopter + Remote Controller + Battery + Charger for UAV Multicopter FPV Photography
Technical Specification
Aircraft
- Material ABS
- Motor Wheelbase 450 mm
- Arm Length 150 mm
- Arm Weight(including: motor,ESC, propellers) 185 g
Motor
- Stator Size 35x11mm
- KV value 850rpm/v
- Max. Power 236.8 w
- Weight (including fan) 60 g
ESC (Electronic Speed Control)
- Working Current 20A,short-time,current 30A(≥10 sec.)
- Working Voltage 4S LiPo
- Compatible Signal Frequency 50Hz—432Hz
- Built-in BEC Output Null
- Drive PWM Frequency 8KHz
- Weight (including fan) 14g
Propeller (1045/1045R)
- Take-off Weight 1.6 -3.0 Kg
- Aircraft Weight 1.9Kg
- Flight Battery LiPo(4S,5300mAh,25C)
- Max. Power 950W
- Hover Power 370W (@ take-off weight 2Kg)
- Hover Time 18min (@5300mAh&Take-off)Weight 2 kgs
- Working Environment Temperature -10 °C ~ +40 °C
Flight Distance
Height/Radius: 800M/1200M
Pacakge includes:
- Quadcopter x 1
- Remote controller x 1
- Battery x 1
- Charger x 1
