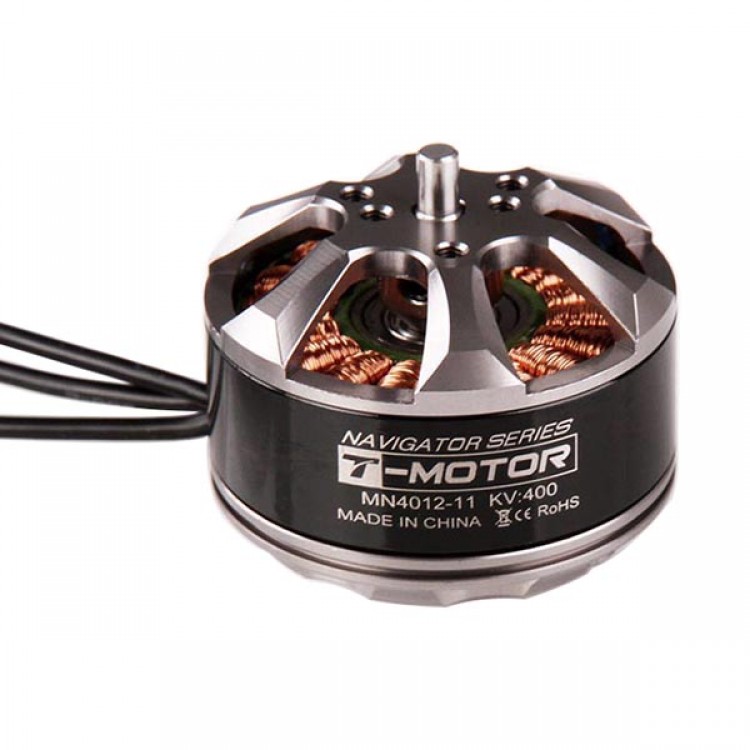

T-Motor Navigator Series MN4012 340KV 4-8S Outrunner Brushless Motor for Quadcopter Hexacopter Multi-copter

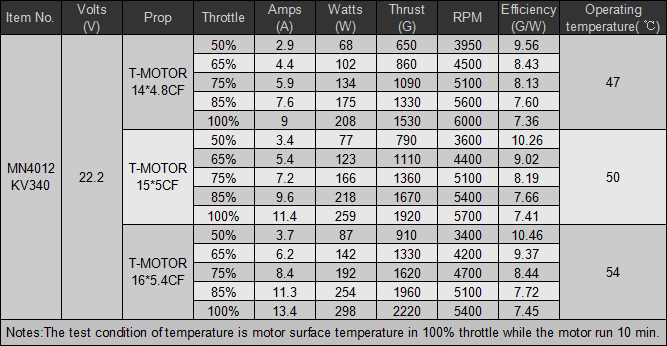

Specifications:
KV..............................................................................................................340
Configu ration.................................................................................18N24P
Stator Diameter.................................................................................40mm
Stator Length.....................................................................................12mm
Shaft Diameter....................................................................................4mm
Motor Dimensions(Dia.*Len).........................................Φ44.7×32.5mm
Weight (g)..............................................................................................131g
ldle current(10)@10v(A)......................................................................0.9A
No.of Cells(Lipo)..................................................................................4-8S
Max Continuous current(A)180S.........................................................22A
Max Continuous Power(W)180S.....................................................660W
Max. efficiency current.. ........................................................(3-10A)>83%
internal resistance...........................................................................133mΩ
