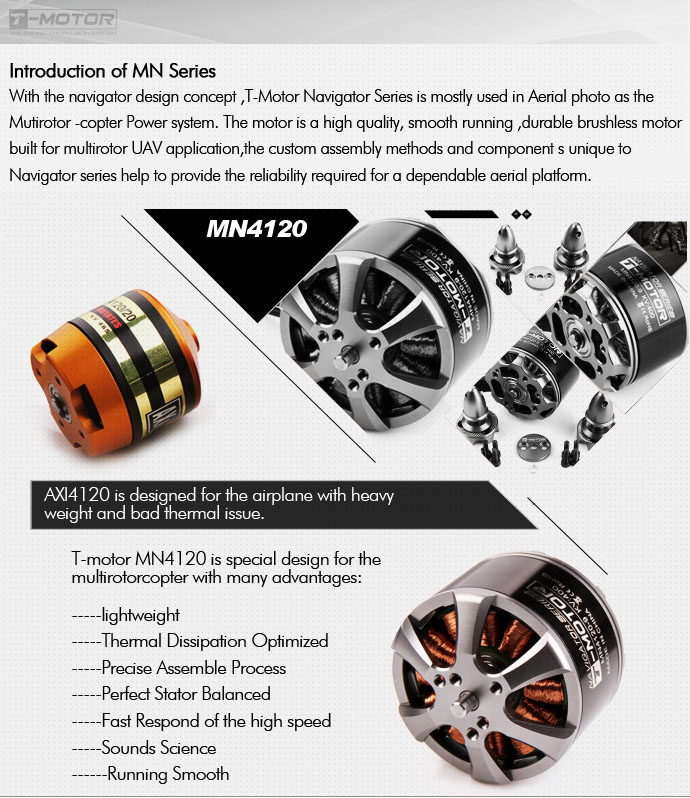

Tiger T-Motor Navigator Series High End MN4120 400KV Brushless Motor for MultiCopter DJI S800
Specifications:
- KV...............................................................................................................400
- Configu ration...................................................................................12N14P

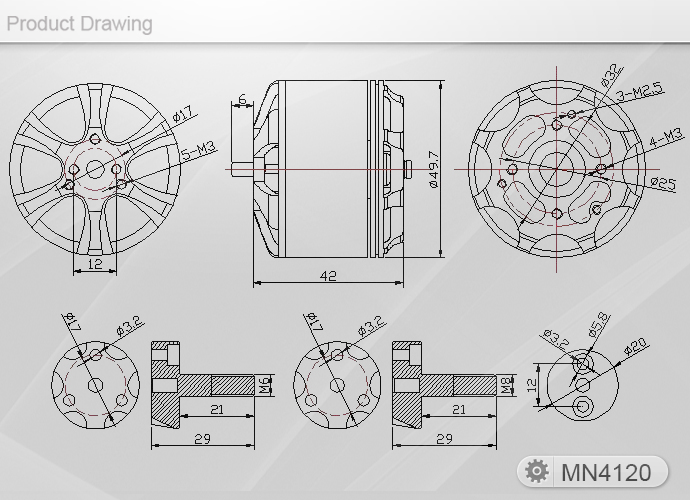

- Stator Diameter...................................................................................41mm
- Stator Length.......................................................................................20mm

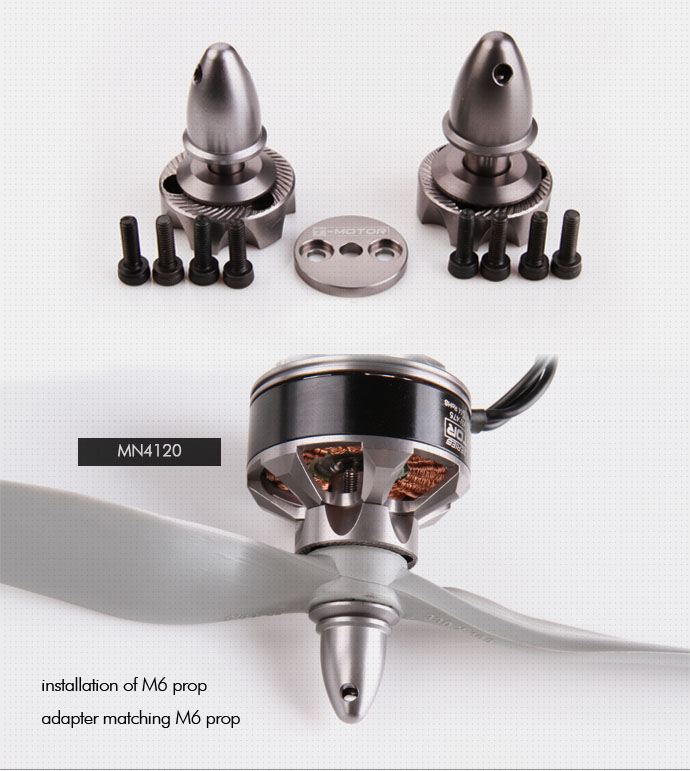

- Shaft Diameter.......................................................................................4mm
- Motor Dimensions(Dia.*Len)...............................................Φ49.7×42mm

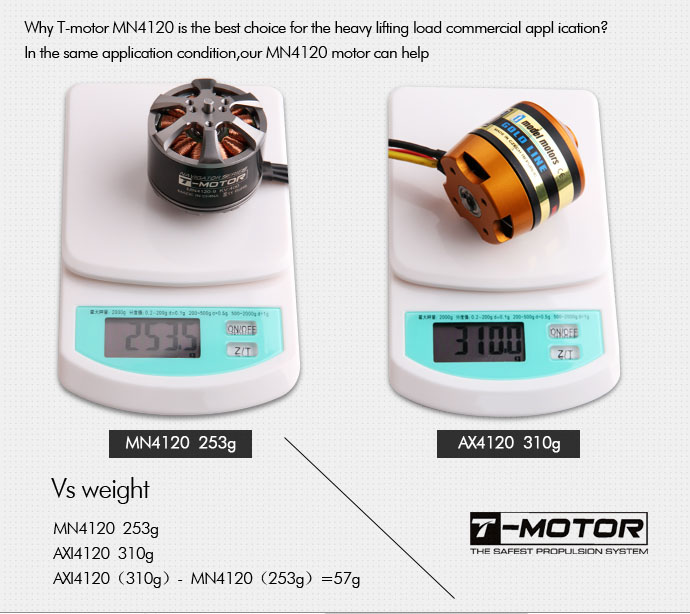

- Weight (g).................................................................................................253g
- ldle current(10)@10v(A)..........................................................................1.2A
- No.of Cells(Lipo).....................................................................................4-8S
- Max Continuous current(A)180S............................................................47A
- Max Continuous Power(W)180S......................................................1050W
- Max. efficiency current............................................................(10-30A)>84%
- internal resistance................................................................................30mΩ
