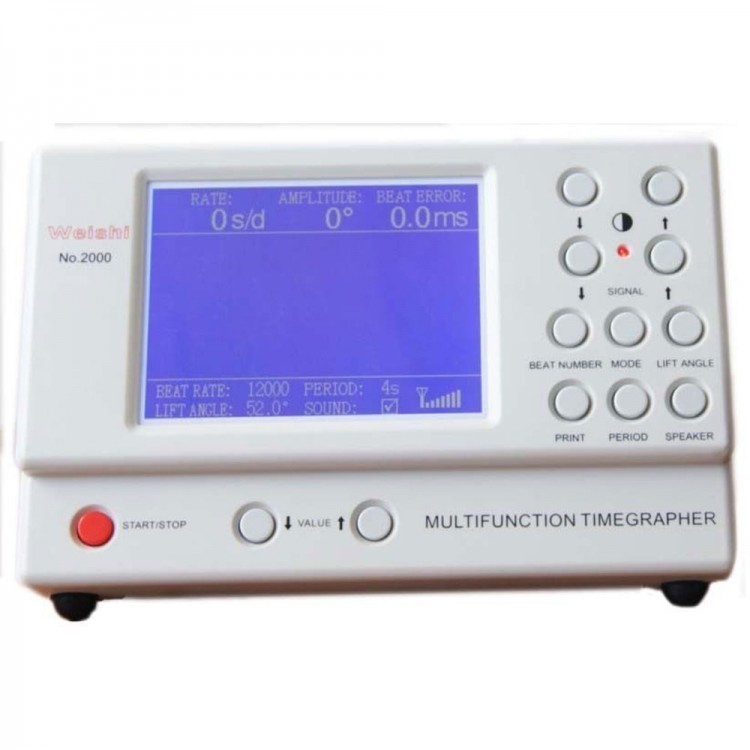

Timegrapher NO.2000 Watch Timing Machine Multifunction Tester Calibration Tool
Product Description
The WeiShi No.2000 is a precise mechanical watches test instrument. It is used for multi-testing mechanical watch by watch manufacturers and watch technician.
Feature:
- The LED screen can completely display the watch frequency.
- The instrument can automatic adjust the signal intensity according to the different watch.
- The instrument can automatic calculate and display the day rate,amplitude and beat error.
- The instrument can automatic tests the common beat watch,otherwise you can manually select for the special ones.
- The instrument can select the test period of 2S, 4S, 6S, 8S, 12S, 20S,30S, 60S, which can calculate the average value of corresponding period.
- Six kinds of test orientation can be set; the simulation sound can be set.
Specifications:
- Measuring possibilities: rate deviation, amplitude, beat error.
- Rate deviation measurement: the range of deviation is ±999 sec/day, precision 1.0 sec/day.
- Amplitude measurement: numerical display in degrees, resolution is 1°, measuring range: 100° to 360°.
- Measuring for the beat error(frequency error), numerical display in milliseconds; the measuring range is 0~9.9ms.
- Measuring position: 1 to 6 positions.
- Line length: 320 points.
- Supply voltage: single-phase AC 100V~240V±10% two-line.
- Display dimension: 113*84mm.
- Dimensions: 245*156*45mm.
- N/G Weight: 1.8kg/ 2.5KG
Parameter
- The automatic select beat number by the instrument as below: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200
- The instrument automatic display the closet beat number if the watch beat number is not in the automatic selection range, but the test result is incorrect, so need to select the beat number manually. The manual selection can select the special beat number.
- The manual select beat number as below:
3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000,
12342, 12480, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200,
14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200,
16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514,
19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600,
25200, 28800, 32400, 36000, 43200
Package list (No printer):
- 1 x Timegrapher
