TinyENC1 Video Encoder Live Streaming Encoder HD H.264/H.265 HDMI Video Encoder 1080P RTSP RTMP
Features:
- Suitable for professional cameras, conference cameras, computer graphics
- Can be powered by a power bank
- Support multiple live broadcast platforms, including for Huya, YY, Inke, Longzhu, Douyu, YOUKU, Yizhibo, Egame, TikTok, Bilibili, Zhanqi TV, Huajiao, Mudu, Aodianyun and Tencent Cloud
- Support a variety of peripheral devices. Suitable for TV set-top boxes, laptops, camcorders, SLR cameras, network surveillance cameras, USB cameras, mobile phones, game consoles, etc. Support HDCP, supporting connection for PS4, Blu-ray player and other equipment. For details, please contact customer service. (Mobile phone access requires additional purchase of MHL adapter or dedicated adapter for Apple , wireless screen projector, etc.)
- Support mobile terminal control. No installation, scan the code via a mobile phone to open the App. Most of the functions of the web terminal can be operated through the App. Automatically discover all encoders in the LAN
- Multi-platform live broadcast. Only one encoder is needed to push live streams to any number of platforms at the same time
- Group management. When there are multiple encoding devices in the network, the devices will be networked automatically. Access to any one can manage all encoders and generate a unified program list, one-key synchronization of encoding and streaming settings
- Remote assistance, no need to log in to a PC. On-demand use, convenient and fast to use, ensuring privacy and safety
Specifications:
Core Performance:
- Main chip: Hi3516EV300
- CPU: for ARM Cortex-A7 900MHz 32KBI-Cache, 32KBD-Cache
- Memory: 128MB DDR3
- FLASH: 128MB SPI Nand Flash
Video Parameters:
- Input interface: HDMI 1.4 supports up to 1080P at 60fps
- Resolution: 1080P, 720P, 1600x1200, 1440x900, 1366x768, 1280x1024, 1024x768, 800x600, - 640x480
- Encoding format: H.264 Baseline profile; H.264 Main profile; H.264 High profile; H.265 Main profile; MJPEG/JPEG Baseline
- Decoding format: H 264, H 265, MJPEG
- Coding resolution: Main: 1080P, 720P, 360P; Sub: 720P, 360P
- Frame rate: 1~30 adjustable
- Multiple reference frames: support for SmartP, DualP
- Maximum bit rate: 60Mbps
- Rate control: CBR/VBR/AVBR/FIXQP/QPMAP
Audio and Video Parameters:
- Input interface: HDMI, 3.5mm Line-In, audio can be used at the same time
- Sampling rate: 48K, 44.1K, 32K, 16K, 8K
- Encoding format: AAC, MP3, MPEG2, PMCA, PMCU
Network Parameters:
- Wired interface: 10/100M RJ45 network port
- Transmission protocol: RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast
- For ONVIF: Support
Basic Parameters:
- Power supply: choose one of USB-C or DC-12V/1A power supply (can be plugged in at the same time)
- Power: <4W
- Working temperature: 0~70℃
- Dimensions: 58 x 62 x 16mm/2.3 x 2.4 x 0.6" (LxWxH)
Software Function:
- Basic functions: WEB configuration, parameter hot update, firmware upgrade, network setting, password management

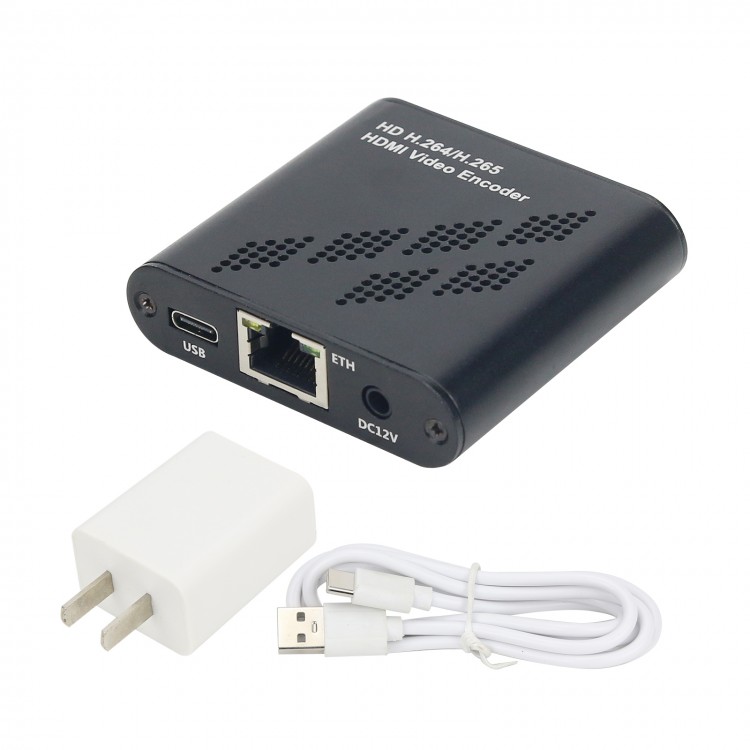

Package Included:
- 1 x Video Encoder
- 1 x USB Power Adapter
