TKL 4.8PRO Digital Audio Processor Multifunction Audio Processor 4 Input 8 Output for Bars Stages

TKL 4.8PRO Digital Audio Processor Multifunction Audio Processor 4 Input 8 Output for Bars Stages

Features:
- 4 in 8 out digital audio processor
- Noise gate function: It reduces normal noise in the system
- Upgraded and multifunctional: ADSP21489 the fourth generation SHARC processor for ADI is used. Built-in routing/gain/delay/limiting/mute/parametric equalization/graphical equalization/high-pass and low-pass filters/all-pass filters and phases and many other audio algorithms
- Sound acquisition rate: 96KHz, higher timbre reproduction
- USB driver: no driver required and ready to use
- Panel operation: simple and intuitive
- Main functions: voltage limit, parametric equalization, crossover, delay and gain (with noise gate, graphical equalization and all-pass filtering)
- Delay parameters: input 1000ms; Output 1000ms
- Equilibrium parameters: 10 segments of parametric equalization input; Output 10 segments (with 31 segments per channel input graphic equalization)
- Processing chip: ADSP21489 the new fourth-generation SHARC processor for ADI
- WiFi function: with built-in wireless WiFi reception, it can realize wireless remote debugging
- 96KHz acquisition rate: 96KHz sound acquisition rate and higher timbre reproduction. The higher sample rate avoid audio loss that can occur when converting to a lower sample rate
- Fourth generation processor: ADSP21489 the fourth generation SHARC processor for ADI is used. Built-in many audio algorithms, 96KHz sampling operation and digital-to-analog conversion, and 4 inputs and 8 outputs
- Three connection methods: easy connection via USB, Wifi and RS485/232

More Details:
- Durable metal body
- Individual control for each channel
- Multifunctional menu key
- With side vents

Specifications:
- Frequency response: ±0.5dB 20Hz-20kHz
- Dynamic Range: >110dB 20Hz-20kHz (unweighted)
- S/N: >105dB
- THD+N: ≤0.01% at 1kHz
- Maximum output level: >+20dB
- Input gain: -80dB to +20dB
- Output gain: -80dB to +20dB
- Input impedance: >10kΩ. XLR input
- Output impedance: <60Ω. XLR output
- Graphical equalization: 31 segments per input channel
- Parametric equalization: 10 segments per input channel
- High-pass filter: LinKwitz/Bessel/Butterworth; Slope 12/24/36/48
- Low-pass filter: LinKwitz/Bessel/Butterworth; Slope 12/24/36/48
- Input delay: 1000ms per channel
- Output delay: 1000ms per channel
- Output equalization: 10 segments per channel; support parametric/high-low shelf tone/all-pass filter
- Output limit: threshold/start-up/recovery time/compression ratio are fully open
- Mute Control: Input/output per-channel control
- Phase control: Input/output per-channel 0/180° flip
- Connection control: USB/WiFi/RS485
- Display mode: 2.0 color LCD screen
- UV meter: 7 segments per channel with limiting status indication
- Power supply range: 85V-260V and 50Hz-60Hz
- Net weight: 3.6kg/7.9lb

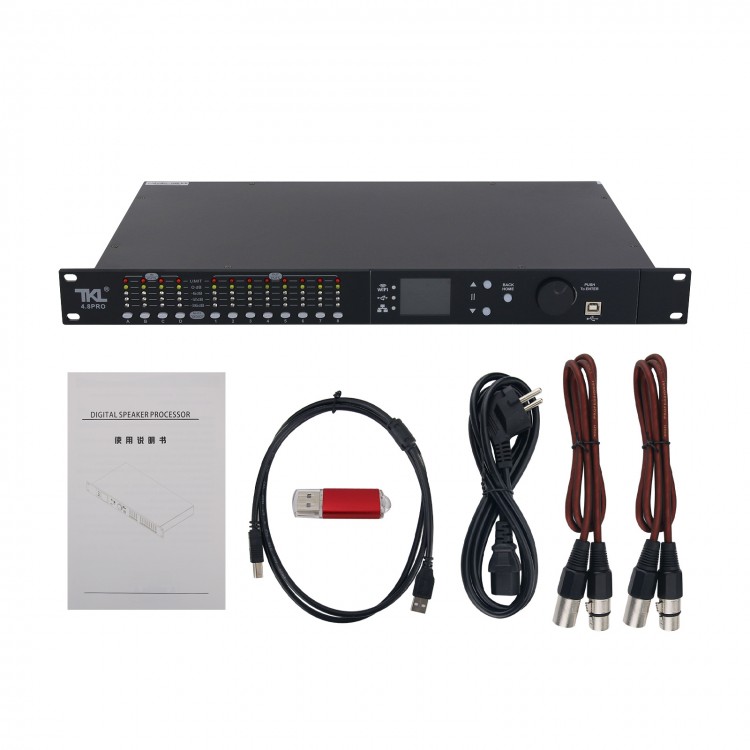

Package Included:
- 1 x Audio Processor

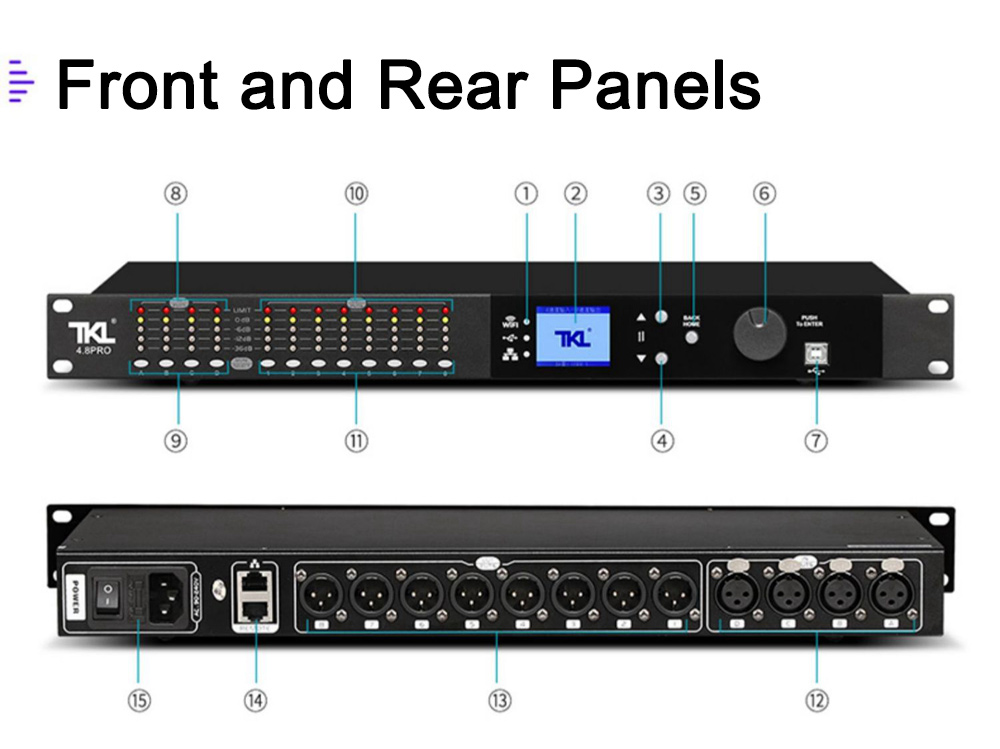

1. Connection indicator: After connecting through the PC, the corresponding connection mode lamp will light up
2. LCD display
3. Once in the menu, it is the up button for the sub-menu option
4. Once in the menu, it is the down button for the sub-menu option
5. System menu entry and quick exit button
6. Menu selection and parameter confirmation. Usually, it can be mute by pressing this button
7. USB connection interface
8. Input level indication
9. Long press this button to edit the input channel; Tap this button to mute the input channel
10. Output level indication
11. Long press this button to edit the output channel; Tap this button to mute the output channel
12. Signal input balanced port
13. Signal output port
14. RS485 connection interface
15. Power input and switch
