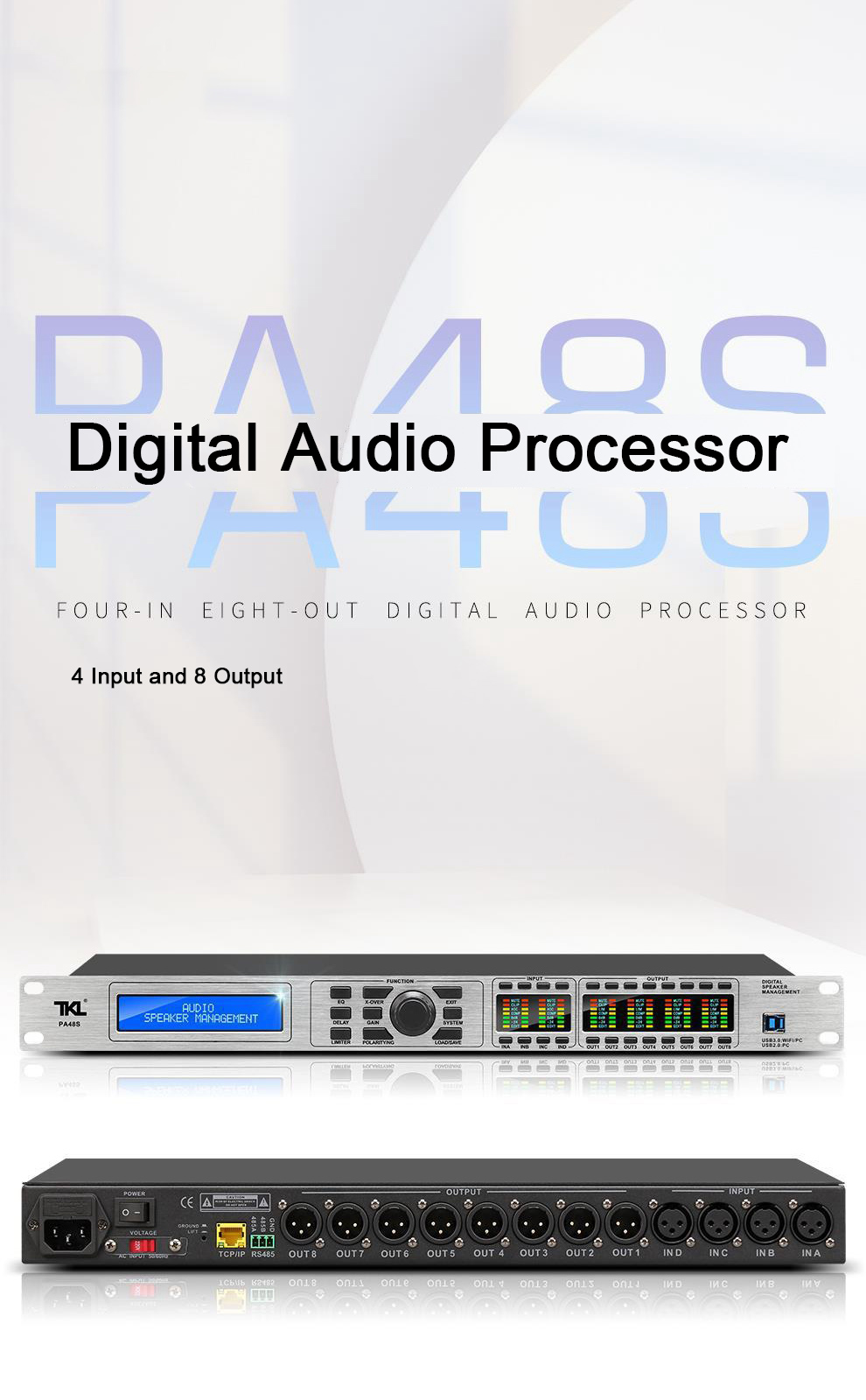

TKL-PA48S High-level Four Input and Eight Output Digital Audio Processor 32-Bit DSP Processor with 96KHz Sampling Frequency

TKL-PA48S High-level Four Input and Eight Output Digital Audio Processor 32-Bit DSP Processor with 96KHz Sampling Frequency

Features:
- 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion.
- Multiple frequency division modes can be flexibly combined, and the high and low pass frequency division points can reach 20Hz~20KHZ.

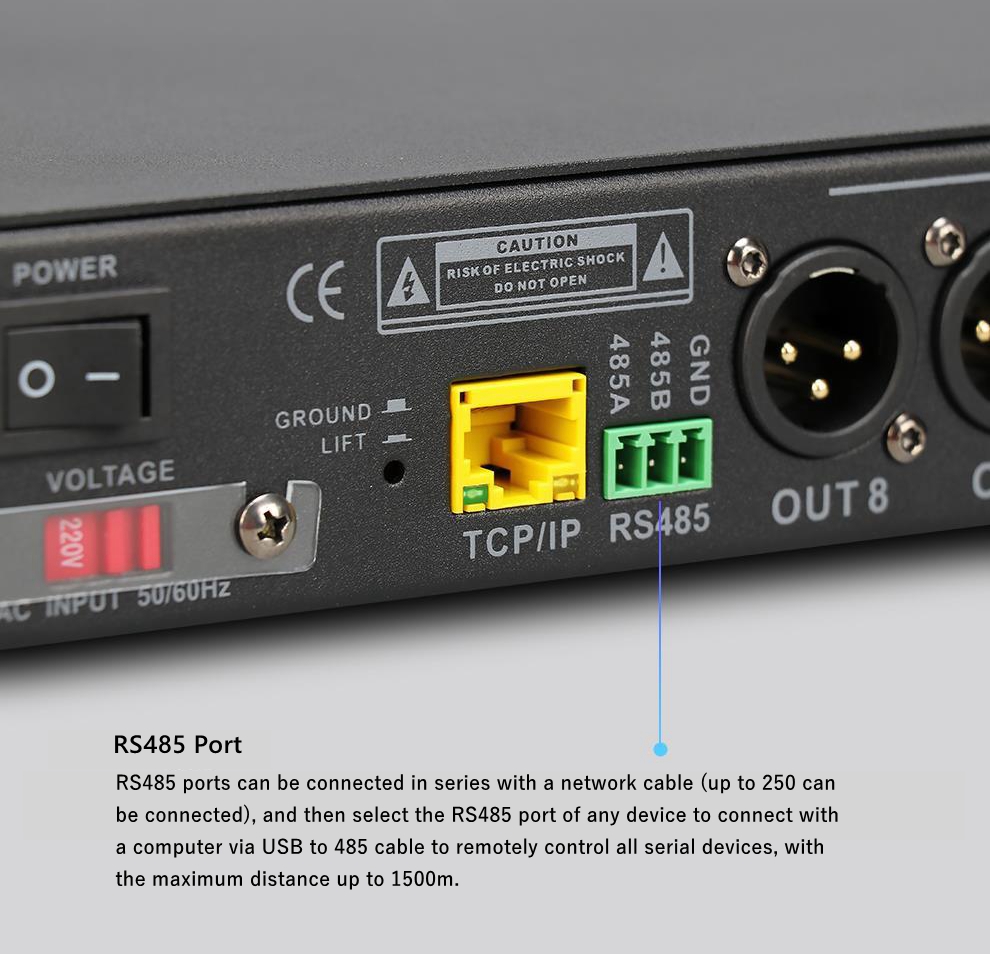

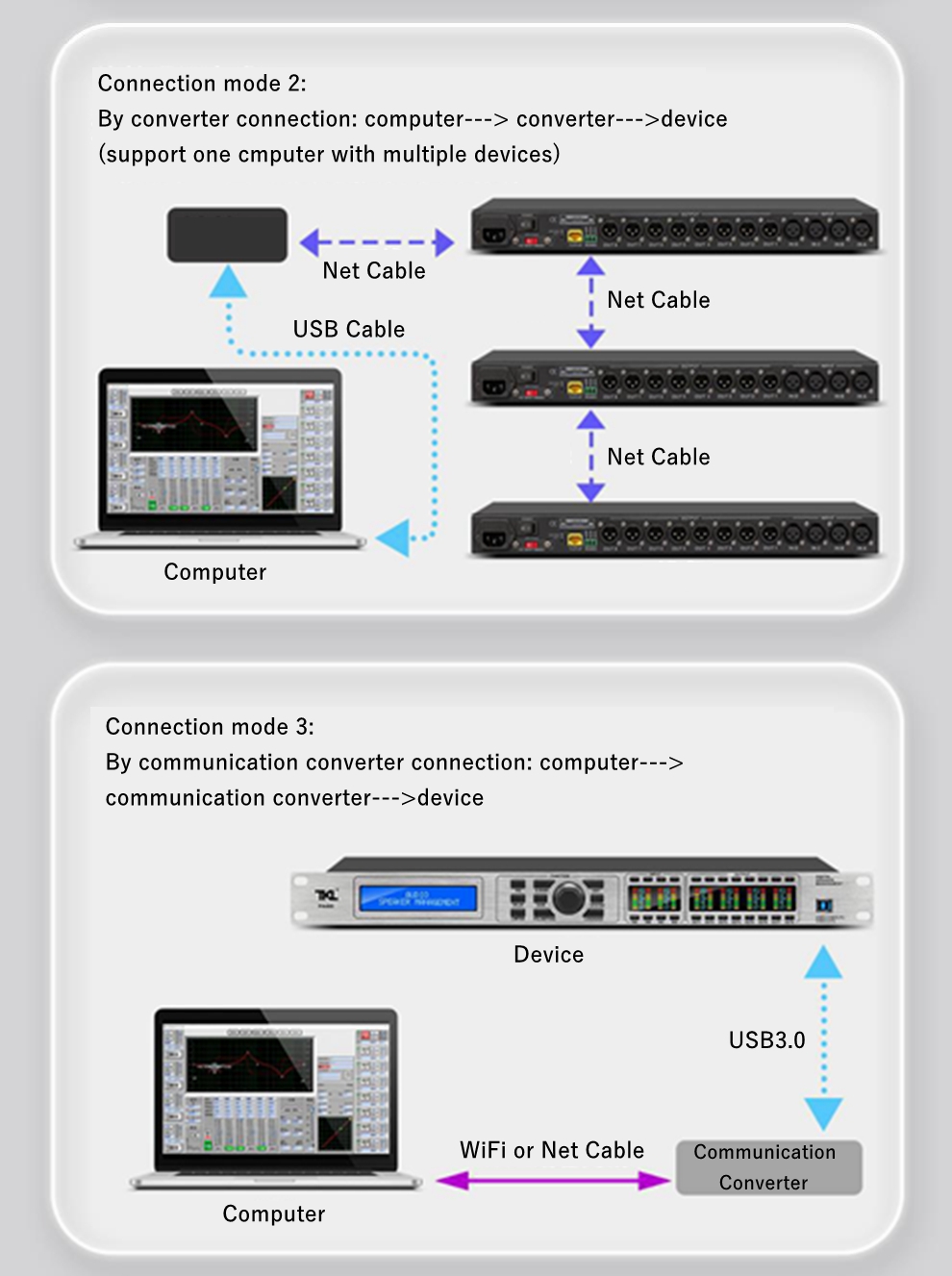

- USB2.0, USB3.0 and RS485 are provided to connect with computers. The RS485 interface can be connected to 250 devices at most and controlled by external computers at a distance of more than 1500 meters.

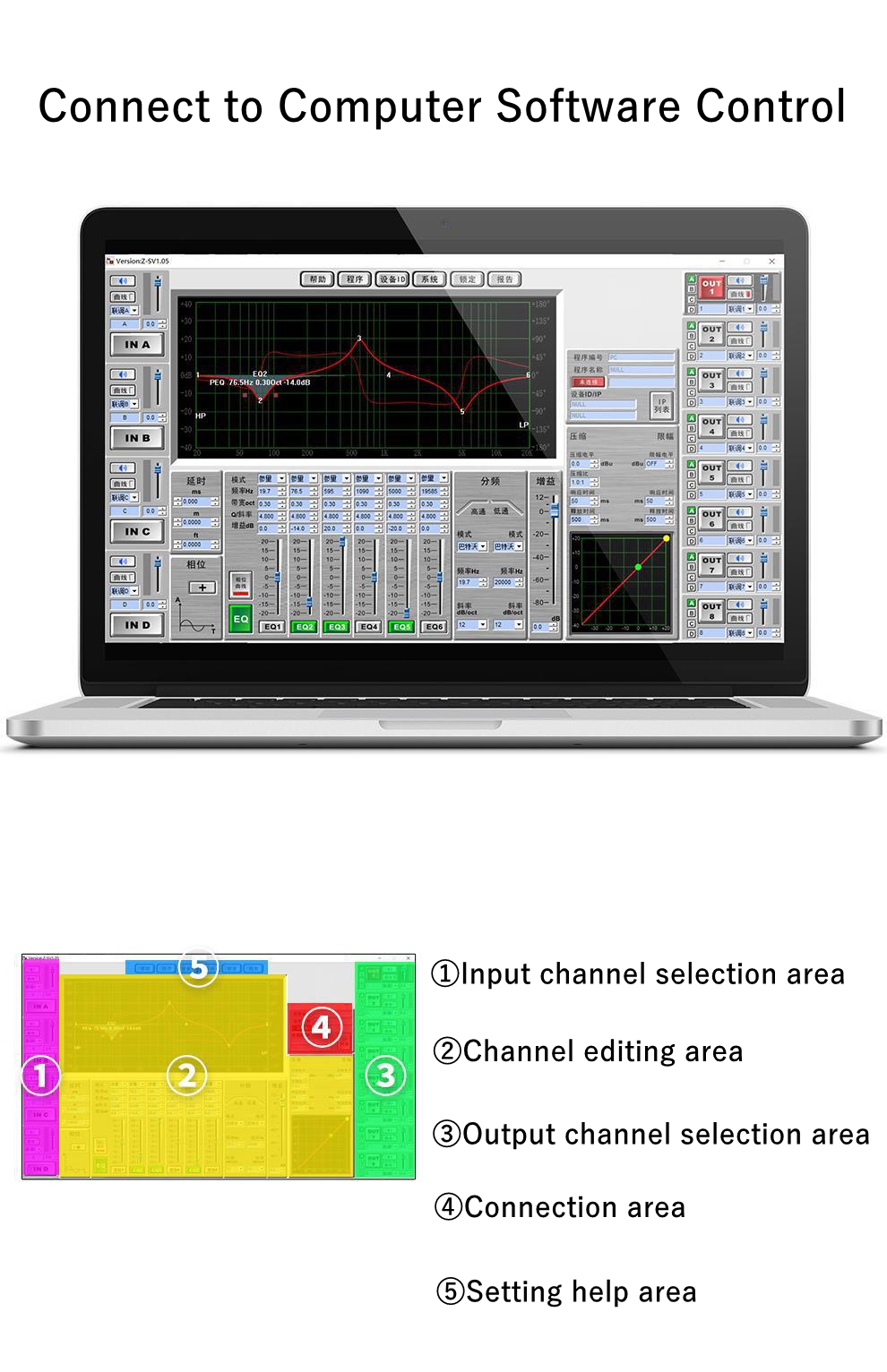

- It is very convenient, intuitive and simple to directly use the function keys and pullers on the panel to set the function or connect the computer to control it through PC control software.
- A single machine can store up to 30 groups of user programs.
- The control function of the locking panel can be set through the SYSTEM key of the panel to prevent the parameters from being modified.
- Each input and output has six independent full-parameter equalization, with the adjustable gain range of ±20dB. At the same time, you can also choose five equalization modes: parametric, high-pitched, low-pitched, first-order all-pass and second-order all-pass.
- Each input channel has adjustable noise gate, and each input channel has two full-parameter adjustable dynamic equalization (DEQ) and automatic gain control.

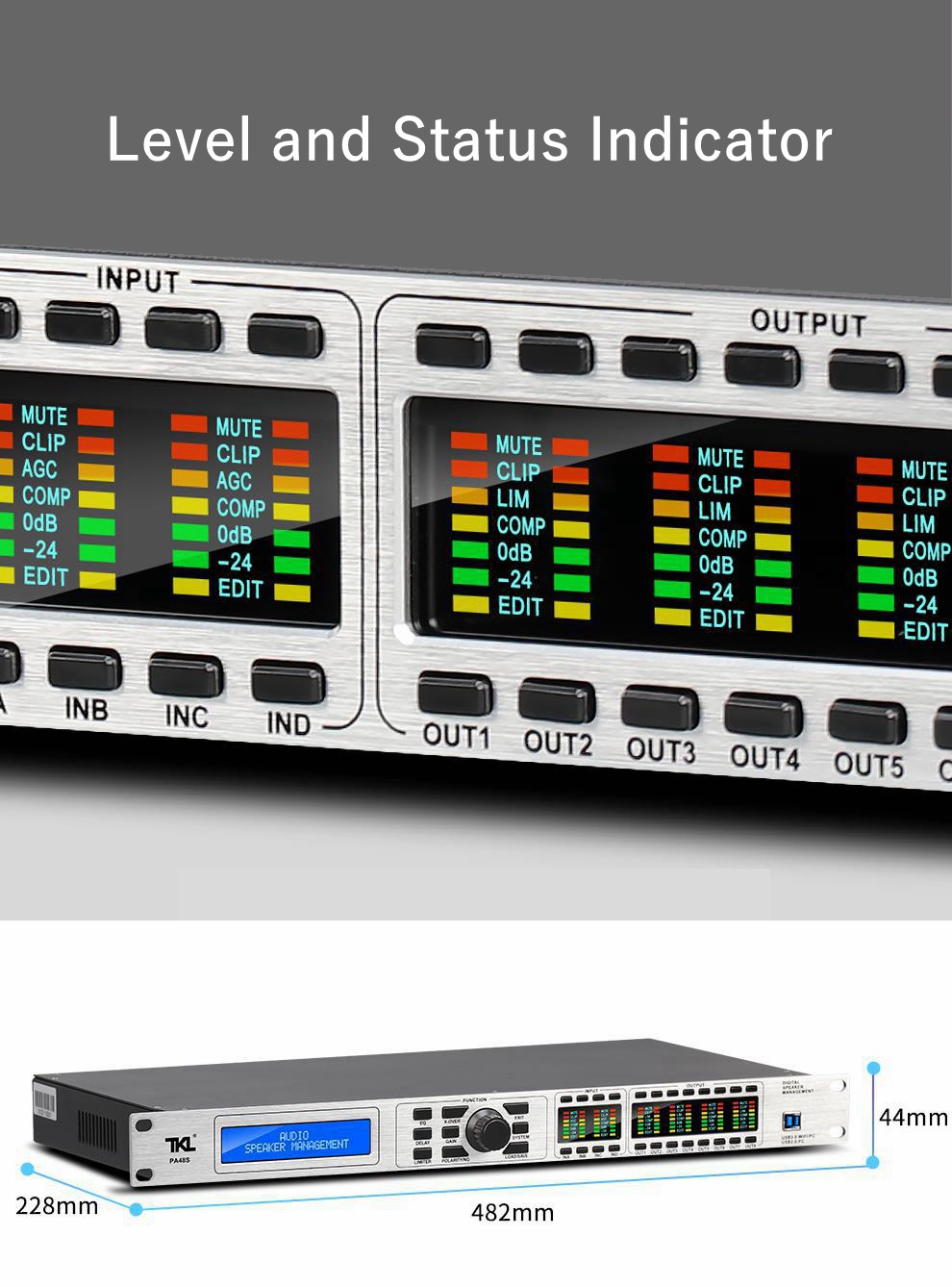

- 2 x 24LCD blue backlight shows the function setting, and 5-segment LED shows the precise digital level meter, mute and editing status of input/output.
- Each input and output has delay, phase control and mute settings. The maximum delay can be 1000ms. The delay units can be milliseconds (ms), meters (m) and feet (ft). The delay can be adjusted through coarse and fine adjustment modes.
- The output channel can also control the compression, limiting and selection of input signal channels, and can copy all parameters of one channel to another channel for linkage control.
- The central control can be connected through RS485 interface to control the mute of matrix and channel.
- Support the device input, output and system functions to set the password and lock them respectively to achieve data confidentiality.
- The device software has a built-in central control code generator, which can switch between Chinese and English with one key.

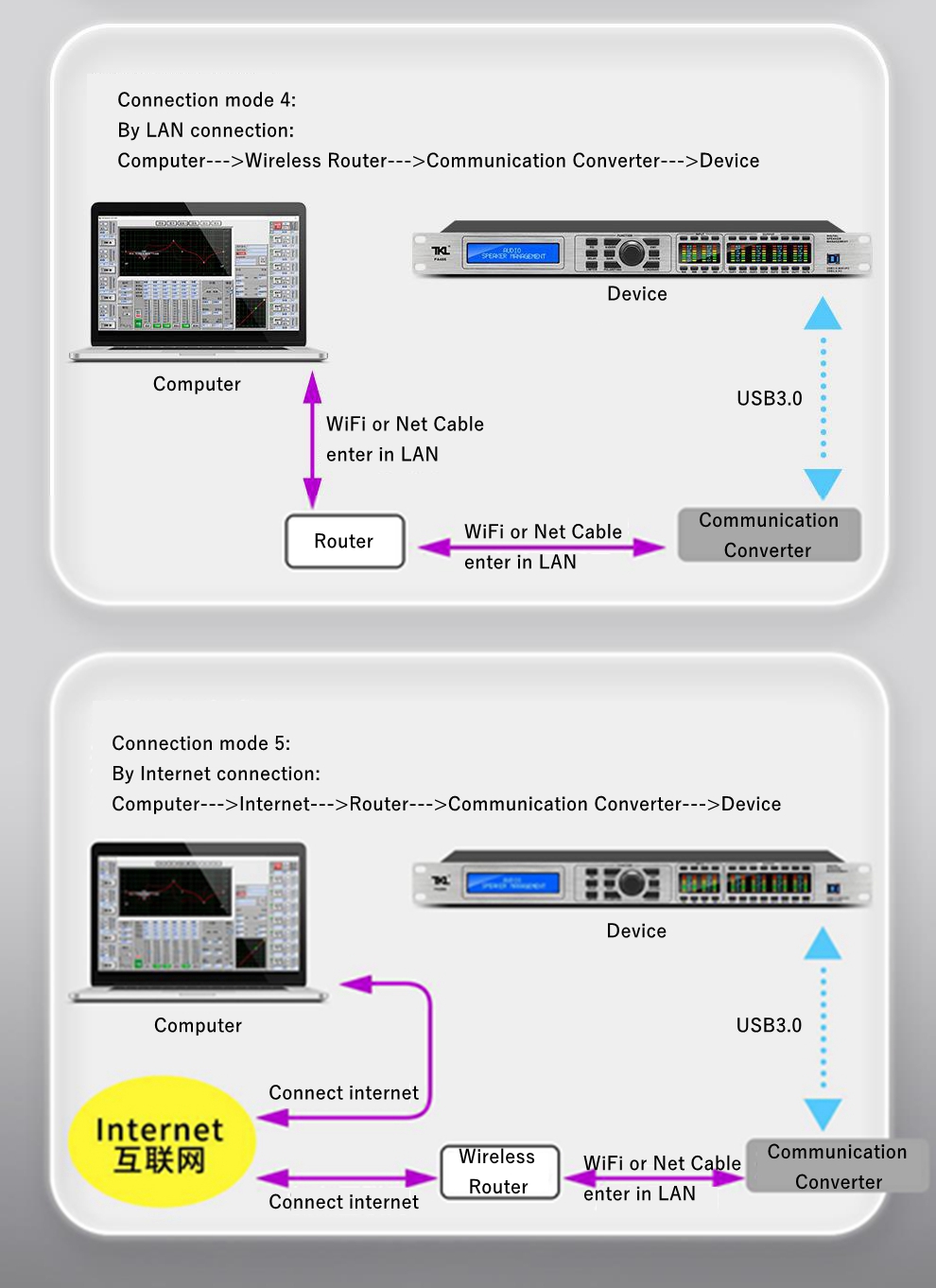

- It can be connected with the computer through the external communication converter, and can realize the remote control of the Internet.

Specification:
- Channel: 4 in and 8 out
- Input channel and socket: 4 channels XLR female port
- Output channels and socket: 8 channels XLR male port
- Input impedance: balanced: 20kohm
- Output impedance: balanced: 100ohm

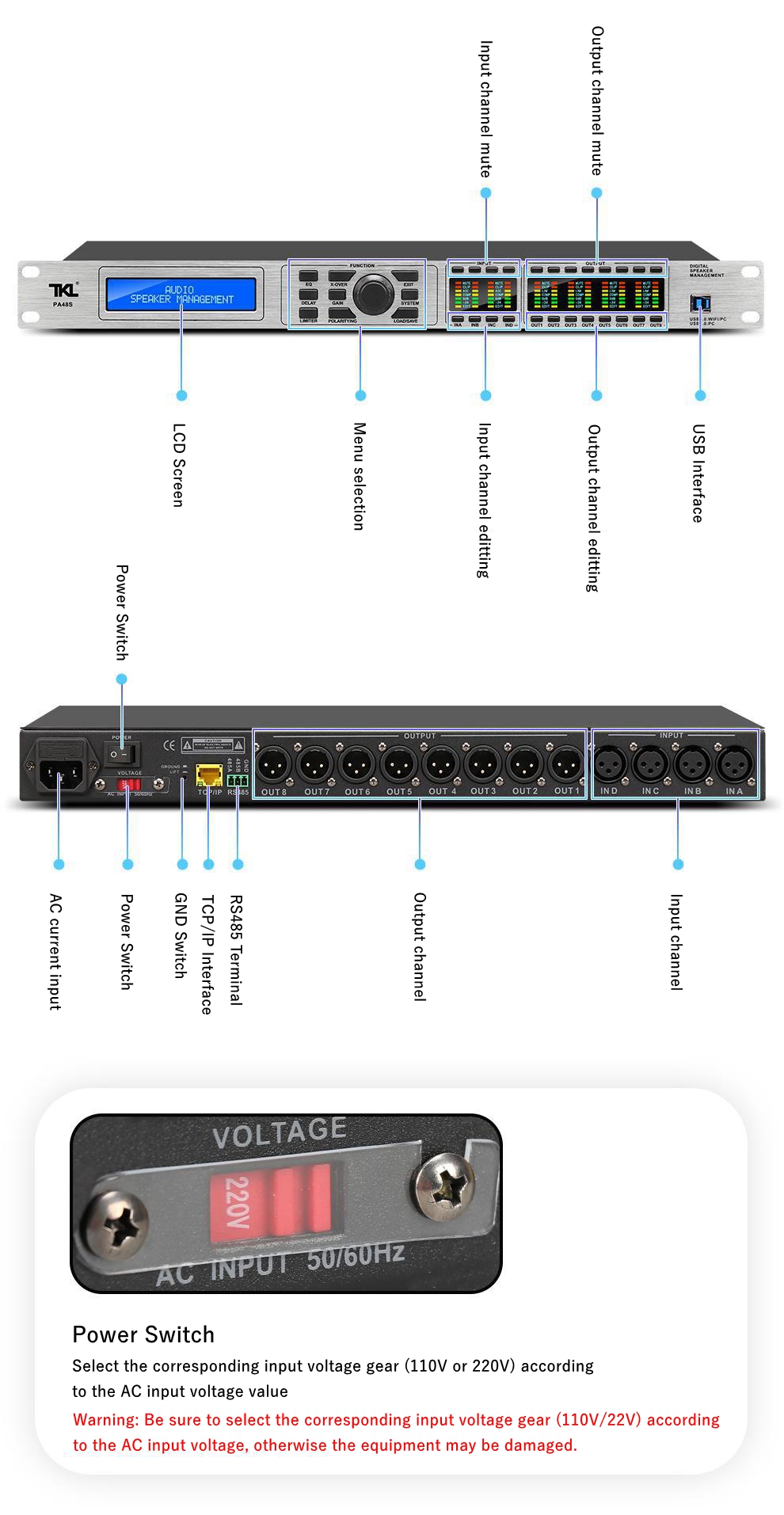

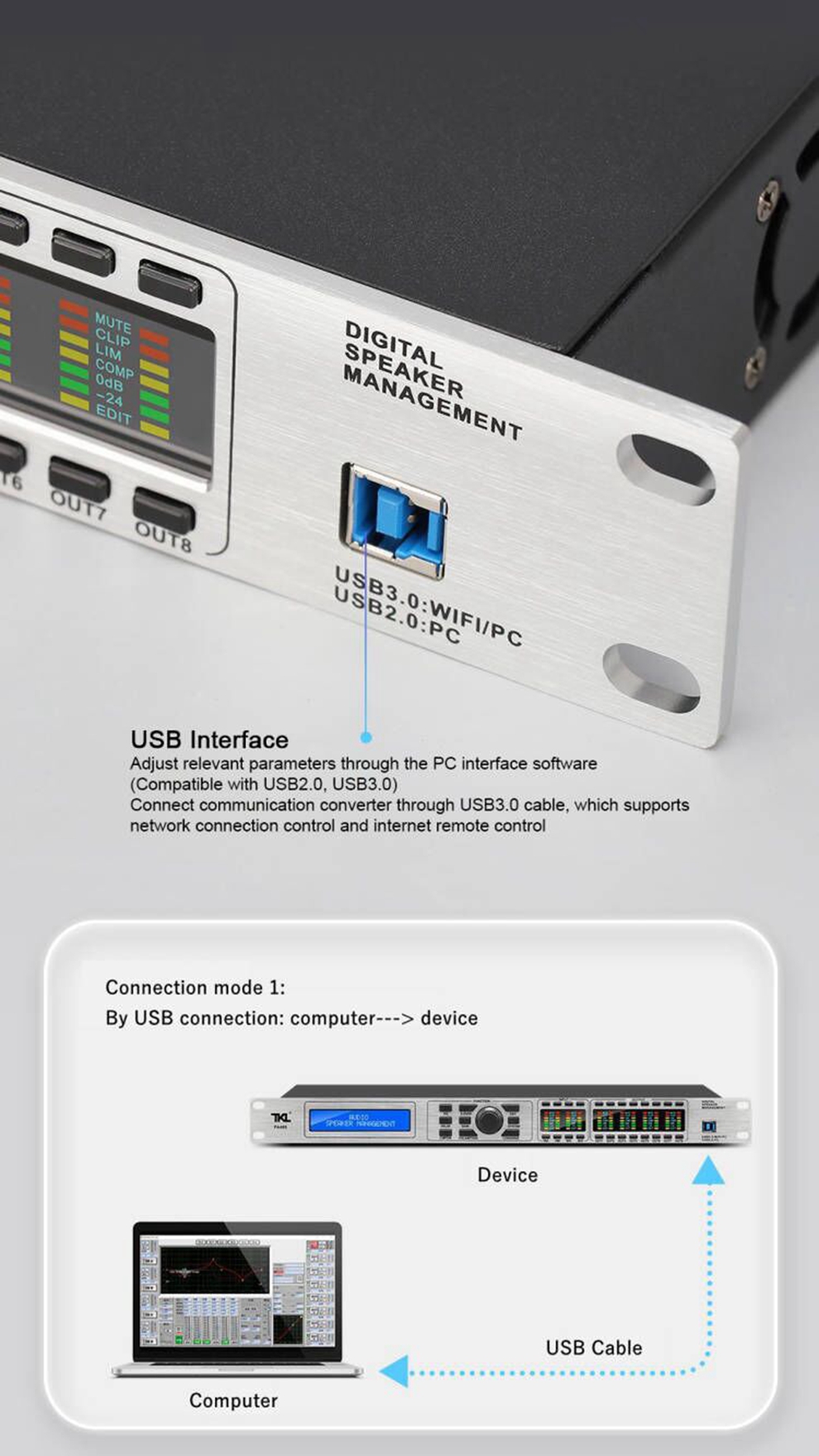

- PC interface: one USB interface (USB3.0 controlling interface can be expanded to WIFI controlling interface) on front panel; two RS485 interfaces (RJ-45 port) on rear panel
- Co-analog ratio: > 78dB (1kHz)
- Input range: ≤ +19dBu
- Frequency response: 19.7Hz - 20kHz (±0.5dB)
- SNR: > 108dB
- Distortion: < 0.002% output = 0dBu/1kHz
- Channel separation: > 106dB (1kHz)
- Power consumption: ≤25W
- Power: AC110V/220V 50/60Hz
- Dimension: 482 x 228 x 44mm

Input channel function:
- Input noise gate: each input channel is equipped with noise gate function; threshold value: -120dBu ~ 0dBu; pace: 1dBu
- Input mute: each channel is equipped with independent mute control
- Input gain: -80dB ~ +12dB; pace: 0.1dB
- Input delay: each input channel is equipped with independent delay control; adjustment range: 0~1000ms; fine tuning pace: 21us; coarse tuning pace: 1ms
- Input phase: same phase (+) or opposite phase (-)
- Input equalization: each input channel is equipped with 6 parameter equalization
- Input dynamic equalization: each input channel is equipped with 2 dynamic equalization
- Input compression: each input channel is equipped with single input compression setting
- Input automatic gain: each channel is equipped with single input automatic gain function

Output channel function:
- Output mute: each channel is equipped with independent mute control
- Output gain: -80dB ~ +12dB; pace: 0.1dB
- Output delay: each output channel is equipped with independent delay control; adjustment range: 0~1000ms; fine tuning pace: 21us; coarse tuning pace: 1ms
- Output phase: same phase (+) or opposite phase (-)
- Frequency divider setting: each output channel can set independent LPF and HPF
- Amplitude limiter: each output channel can set independent amplitude limiter
- Compressor setting: each output channel has independent output compression setting
- Output equalizer: each output channel can set 6 equalization

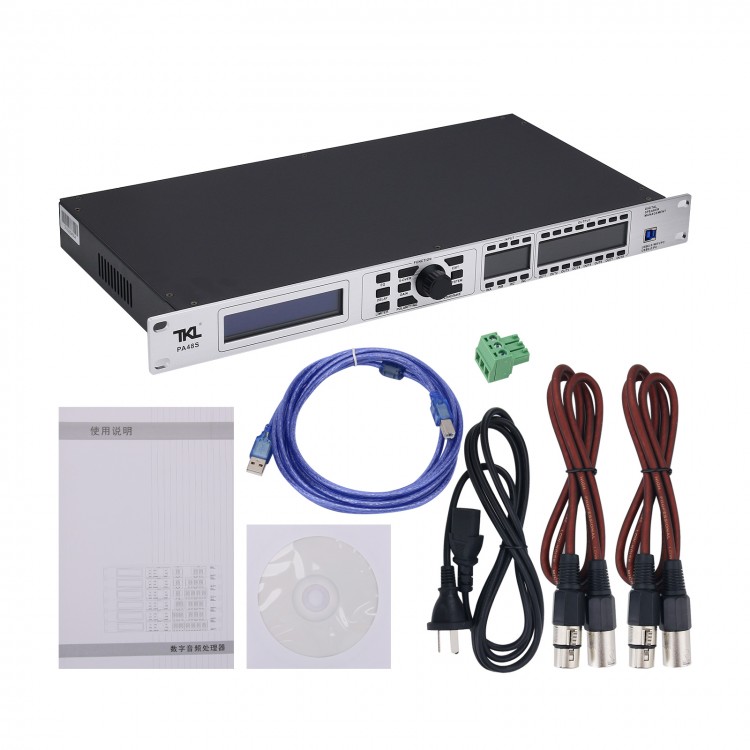

Package Included:
- 1 x Audio Processor
