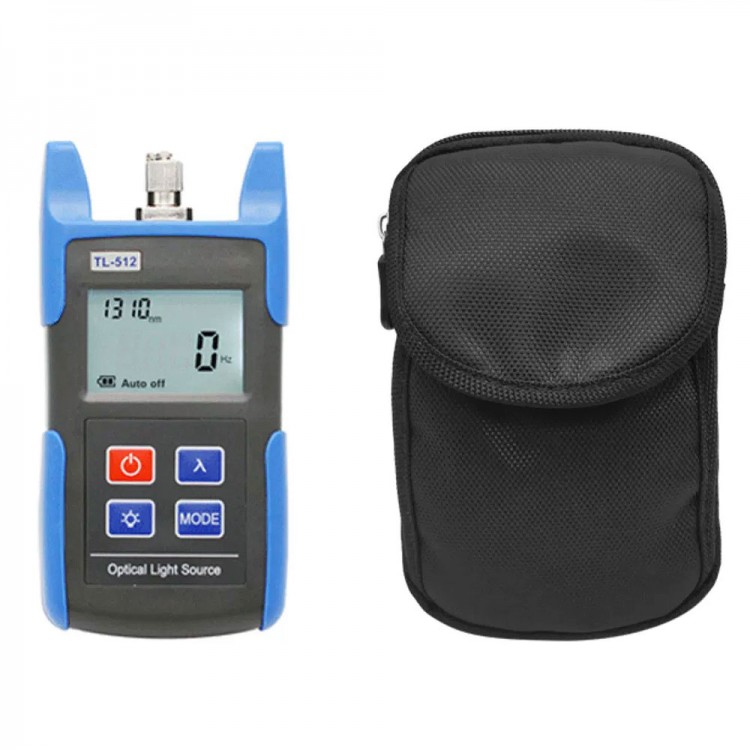

TL-512 850/1300nm MM Optical Light Source Fiber Optic Light Source Designed with FC/PC Connector

TL-512 850/1300nm MM Optical Light Source Fiber Optic Light Source Designed with FC/PC Connector

Features:
- Two wavelengths can meet the different needs of customers
- Large LCD display is user-friendly and intuitive. Small size; simple and easy to use
- Calibration is available for optical power meters and optical attenuators
- With a highly stable laser, it provides a highly stable output power
- It has a continuous wave output and 3 modulation frequencies, including 270Hz, 1KHz and 2KHz
- Portable design: its body is equipped with a shockproof sleeve to improve the instrument's field adaptability, and there is a dust cover to protect the optical interface
- Low electric quantity indication and automatic shutdown
- Easy to use: single interface achieves dual wavelength output
- Power saving mode: it will automatically power off when it is not used for 10 minutes
- A soft portable bag protects the instrument well and makes it easy to carry

Specifications:
- Model number: TL-512
- Output wavelength: 850/1300nm
- Output power: >-7dBm
- Laser type: LD
- Spectral width: 5nm
- Short-term stability: 0.01dB at 5 minutes
- Long-term stability: 0.1dB at 24 hours
- Connector type: FC/PC
- Optical fiber type: MM
- Audio carrier: 0Hz, 270Hz, 1KHz and 2KHz
- Display information: Selected wavelength, electric quantity, carrier status, output power and power supply status
- Power automatic power off: Automatically power off in 10 minutes
- Continuous working hours: >30 hours
- Servo stabilization circuit: With
- Operation sound prompt: With
- Storage temperature: -20 to 70°C
- Operating temperature: -10 to 60°C
- Relative humidity: <95%
- Operating altitude: 2500m/8202.1ft
- Weight: 160g/0.4lb
- Product size: 130 x 63 x 29mm/5.1 x 2.5 x 1.1"

Package Included:
- 1 x Optical Light Source
- 1 x User Manual (Chinese-English)
- 1 x Carry Bag

Note:
- Batteries are not included in the package. Alkaline batteries or rechargeable AAA NI-MH batteries can be used.

Packaging Details:
- G.W.: 0.33kg

Maintenance:
1. Always keep the end face of the sensor clean to be fat-free and pollution-free. Do not use non-clean, non-standard adapter connectors. Do not insert a poorly polished end face, as this will damage the sensor end face.
2. When it is not in use, cover the dust cap to keep the end face clean and prevent the measurement error caused by dust.
3. Carefully plug and unplug the optical adapter connector to avoid scratches on the end face.
4. Clean the sensor surface frequently.
5. When it is not used for a long time such as one month, please remove the batteries.
