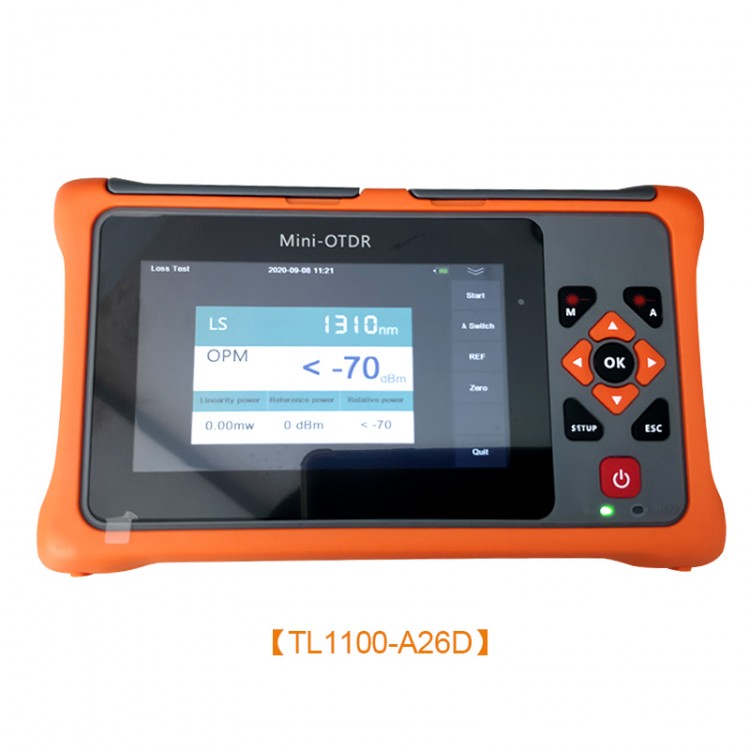

TL1100-A26D 1310/1550NM 26/24DB OTDR Tester Optical Time Domain Reflectometer OPM For Optic Fiber

TL1100-A26D 1310/1550NM 26/24DB OTDR Tester Optical Time Domain Reflectometer OPM For Optic Fiber

Functions:
1. OTDR
2. OPM
3. VFL
4. LS
5. Network cable test
6. Fiber inspection
7. Event map
8. Loss test
9. Flashlight

Instrument Characteristics:
1. Nine in one function
2. 4.3-inch full-view capacitive touch screen supports multi-touch
3. Cover type tempered glass panel, no need to worry about screen scratches
4. Support horizontal and vertical versions, perfect integration of two user operating habits
5. Support power bank charging, don’t worry about low electricity
6. With the help of perfect simulation software, test data in line with international standards, your report is simpler
7. Sink-type optical port design makes the optical port of the instrument better protected
8. Support U disk, SD card and Micro USB export data protection
9. Any interface supports screenshots

Physical Indicators:
1. 4.3-inch capacitive touch screen, full screen display, TFT 800x480 resolution
2. CPU frequency 1GHz, equipped with 1g DDR and 8g memory card
3. Lithium battery: 5200mAh / 3.7v, standby time> 10 hours
4. Size: 175x105x45mm, weight: 560g (including battery)
5. Working temperature: -10 to +55°C, storage temperature: -20 to +80°C

Dual Wavelength Sequence:
* TL1100-A22D: Wavelength 1310/1550nm. Dynamic range 22/20dB. Measuring range 70km.
* TL1100-A24D: Wavelength 1310/1550nm. Dynamic range 24/22dB. Measuring range 80km.
* TL1100-A26D: Wavelength 1310/1550nm. Dynamic range 26/24dB. Measuring range 90km.

Technical Indicators:
- Measuring range: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 70/80km/90km
- Sampling resolution: Minimum: 0.2m
- Sampling point: 64,000 point
- Linearity: ≤0.05dB/dB
- Loss threshold: 0.01dB
- Loss resolution: 0.001dB
- Range resolution: 0.01m
- Range accuracy: ±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error）
- Memory: >100000
- VFL: 10mW, CW/2Hz
- Data interface: 2xUSB (Type Ax1, Micro usbx1), SD card
- Screen: 4.3-inch TFT-LCD (Standard distribution capacity touch screen)
- Battery: 3.7V/5200mAh
- Temperature: Working temperature：-10℃ to +55℃；Storage temperature：-20℃ to +80℃
- Humidity: ≤95%（No condensation）
- Size/Weight: 175x105x45mm / 0.56kg (Contain the battery)
- OPM: Type A: -10dBm~-70dBm; Type B: +26dBm~-50dBm
- LS: Output power: -5dBm, Modulation frequency: CW/270Hz/1KHz/2KHz
- Network Cable test: Support network wire sequence testing and wire alignment

Package Included:
- 1 x Set of OTDR

Note:
- Items in different colors will be delivered at random. Please make sure that you don't mind before purchasing.
