TL510 Optical Power Meter with FC SC Connector +TL532 Fiber Cable Locator Tester 10km

Availability: In stock, usually dispatched in 1 business day

  • Price:$73.90
  • Price in reward points: 739 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.42 $70.94 $68.73 $65.77 Contact US
Quantity:
Buy it now Add cart

You might like

Optical Power Meter TL510+ FC-6S Fiber Cleaver +TL532 Fiber Cable Tester 10km

Optical Power Meter TL510+ FC-6S Fiber Cleaver +TL532 Fiber Cable Tester 10km

$149.90

(0)

TL510 Optical Power Meter with FC SC Connector +TL532 Fiber Cable Tester 10km


1. TL510C Optical Power Meter with FC SC Connector:

Feature:
  1. User self calibration function
  2. Comfortable LCD display and optional backlight LCD display supports
  3. Night operation
  4. Power measurements in dBm or mw and insertion loss in dB
  5. Low battery consumption, more than 120 hours continual operation time
  6. for three 1.5V alkaline batteries
  7. Optional 10 minutes Auto-off function

Application:
  1. Maintenance in Telecom
  2. Maintenance CATV
  3. Test Lab of  optical fibers
  4. Other Fiber Optic Measurements

Specification：

Wavelength(nm)

(800nm to 1650nm )

Detector

InGaAs

Measurement Range (dBm)

-50~+26

Calibrated Wavelength(nm)

850,1300,1310,1490,1550,1625

(more calibrated wavelength can be optional)

Resolution(dB)

Linear 0.1% or Non-linear 0.01dBm

Connector

SC, FC,ST/ Universal 2.5mm adaptor

Power Supply

3pcs AAA batteries

Battery Operating Time

240 h with 1.5V Battery(3)

Operating Temperature(oC)

_ 10 ~ +50

Storage Temperature(oC)

_ 20 ~ +70

Working hours

                               >120 hours ( without backlight

Relative Humidity

90% (+30oC )

Weight

     200 g



2. TL532 10mW Visual Fault Locator Fiber Optic Cable Tester Meter

Feature:

  1. 2.5mm universal connector
  2. Operates either in CW or Pulsed
  3. Constant output power
  4. Lower Battery warning
  5. Long battery life (up to 60 hours)
  6. Crash-proof and dust-proof design for laser head
  7. Laser case ground design  prevents ESD damage
  8. Burning testing to ensure the reliability.
  9. Portable and rugged, easy to use



Specfication:

Type

TL532 Pen-type Visual Fault Finder

Central Wavelength

650nm+-10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power

 10mW

Optical Connector

2.5mm universal connector for test different ST, SC, FC interferes

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2  AAalkaline batteries

Battery Operating Time

650nm 1mw >65hour 650nm 3mw>50hour 650nm 10mw>15hour

Test with Panasonic LR6AAALKALINE battery

Operating Temperature

-10~+45 (oC)

Storage Temperature

-40~+70 (oC)

Dimension (mm)

15X180

Weight

200g(Without battery)

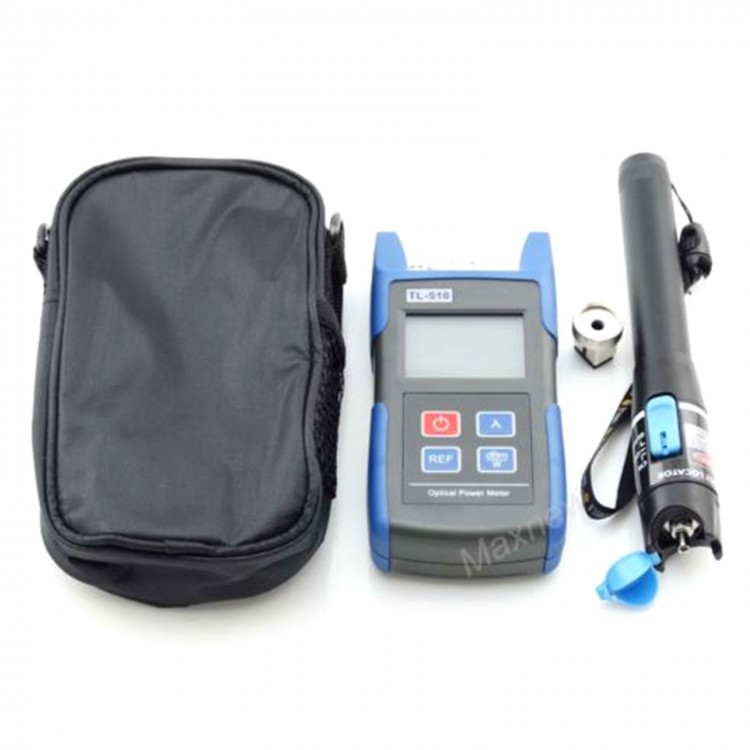

Package Content：
  • 1 x Portable Optical Power Meter
  • 1 x Visual Fault Locator Fiber Tester
  • 1 x Carrying case
  • 1 x FC,SC connector
  • 1 x English manual
