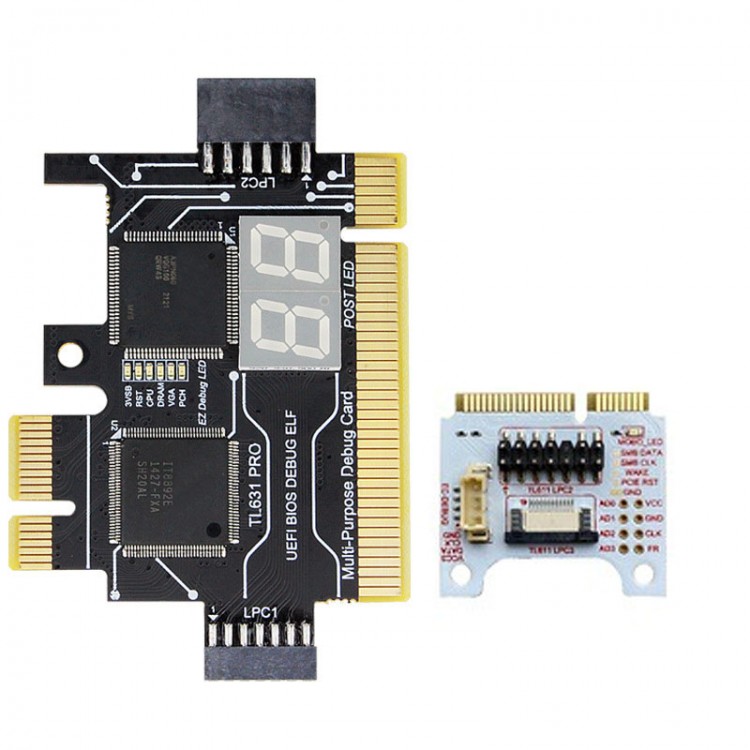

TL631 PRO PCIE Diagnostic Card with Mini PCIE Adapter Card for PC Laptop COM DEBUG MAC LPC Test

TL631 PRO PCIE Diagnostic Card with Mini PCIE Adapter Card for PC Laptop COM DEBUG MAC LPC Test

Description:

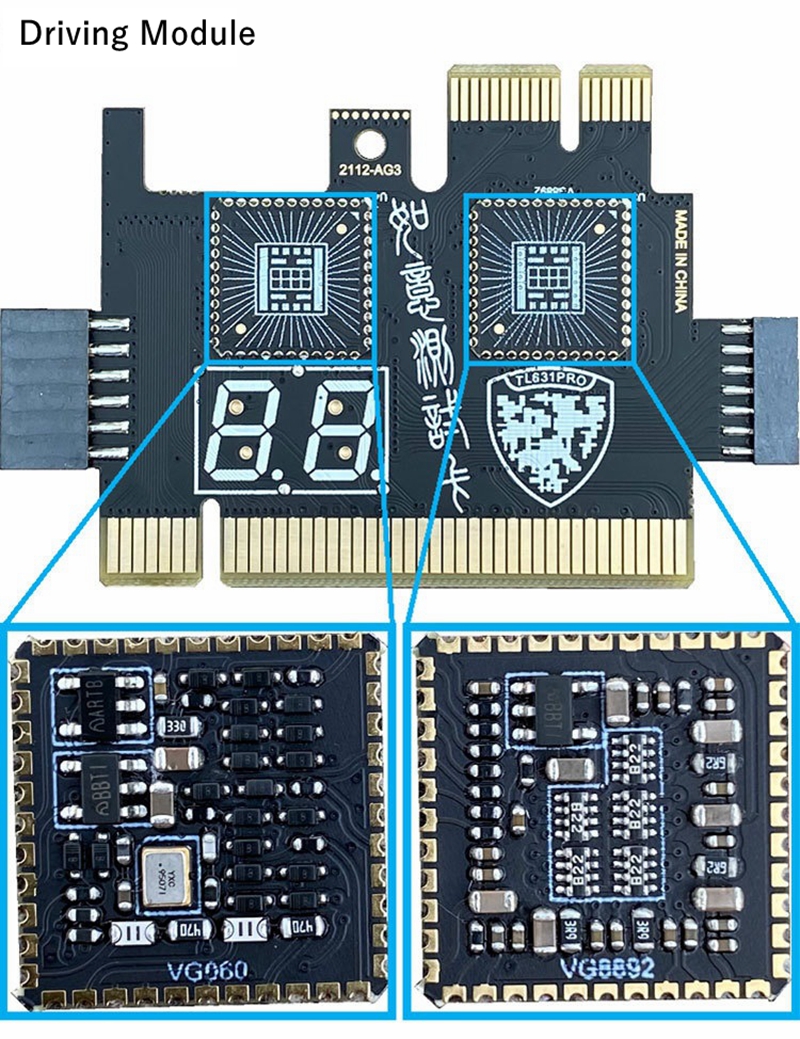

- The main core has been replaced with a new 128 bit (AES) advanced encryption standard on a large capacity chip. Serial communication protocols have been added, including for Asustek COM-DEBUG, for ASRock UART1, and for MSI JDP, providing more comprehensive support.

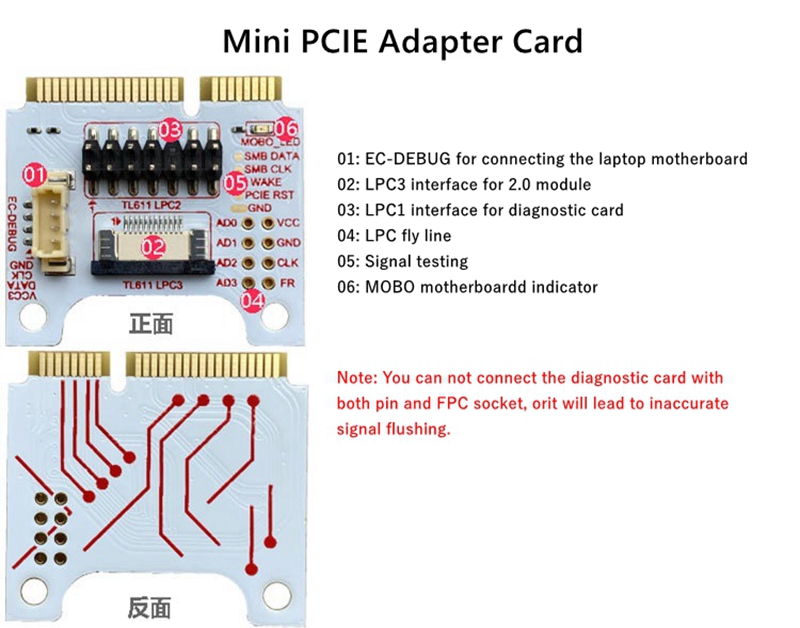

- Mini PCIE support for Compal, for Quanta, for Acer, for Lenovo; and the interface must connect with the LPC or EC bus, or it will not run.

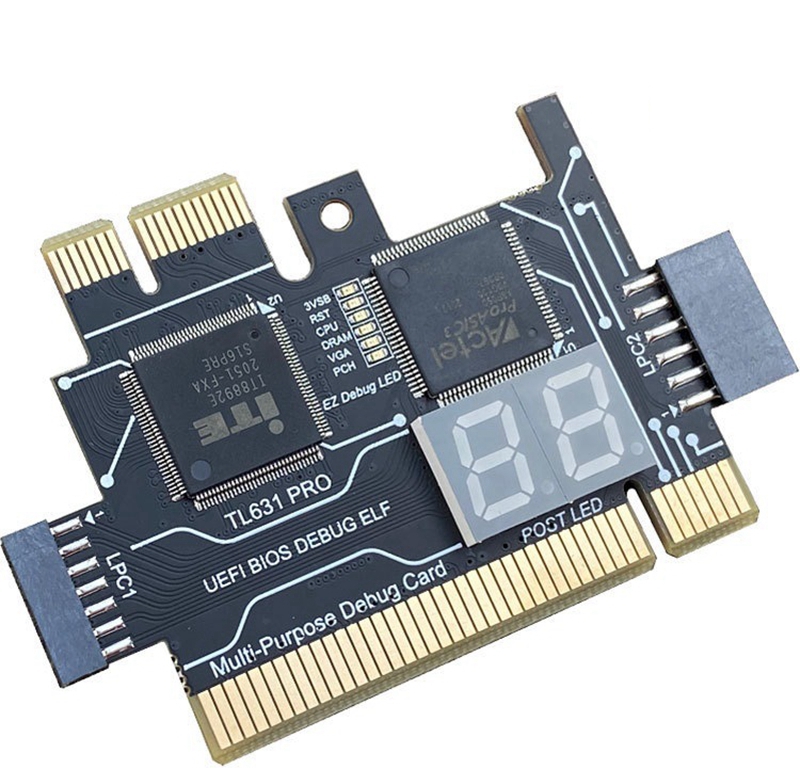

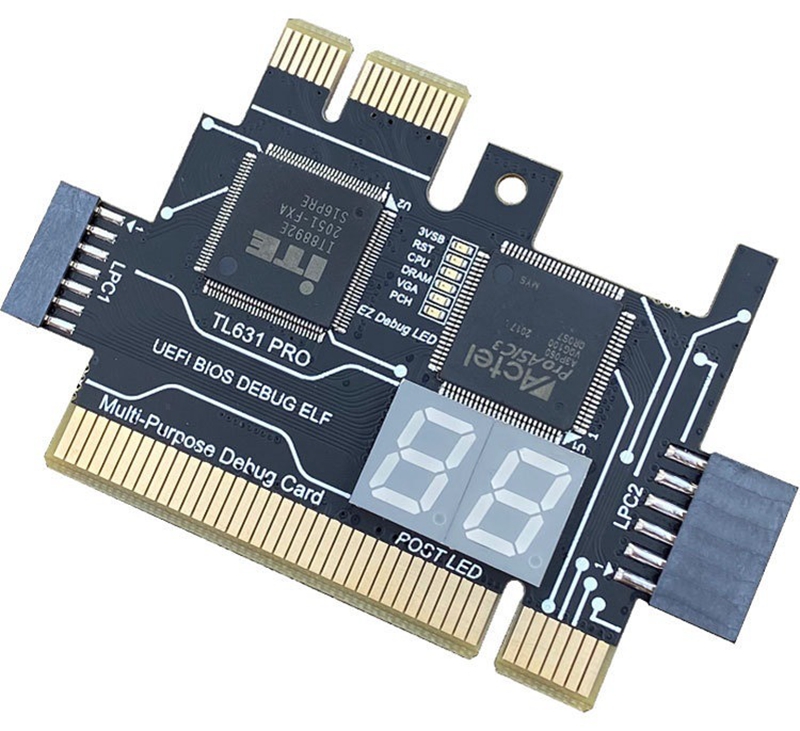

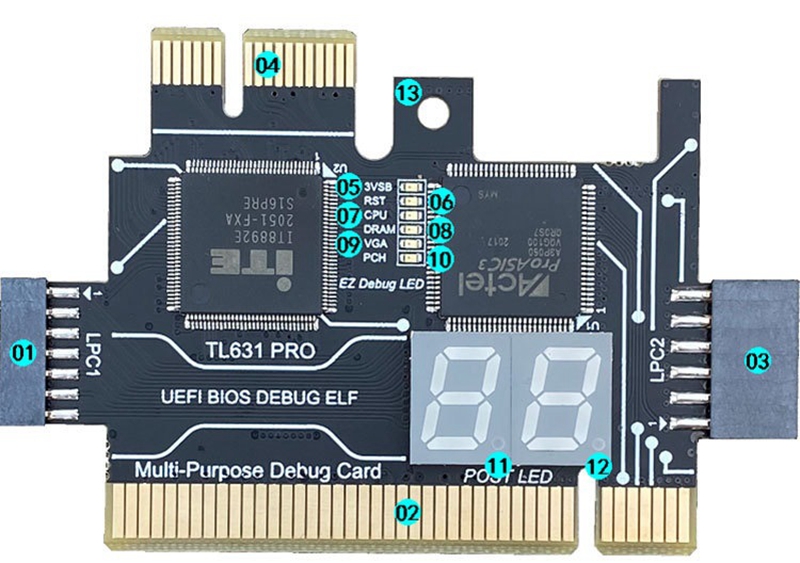

TL631 PRO Function:

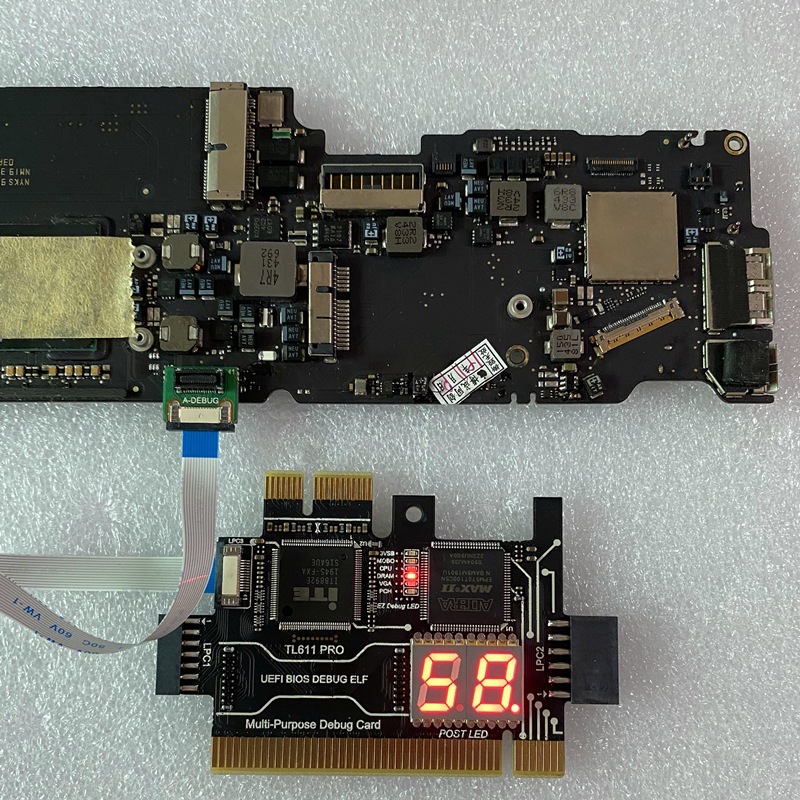

1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface and 2.0 module (Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, for ASUS notebook DEBUG-CON, EC-DEBUG).

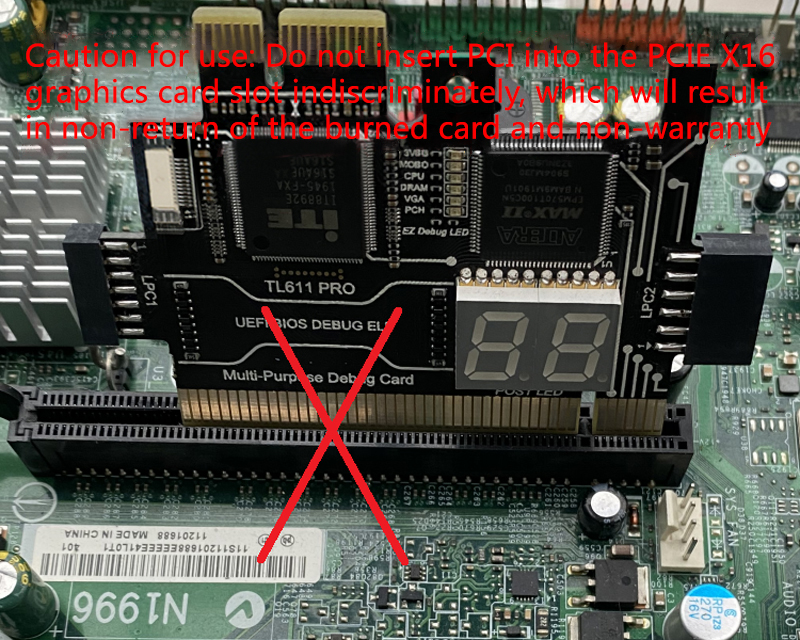

2: PCI high-speed channel = support all PCI slots.

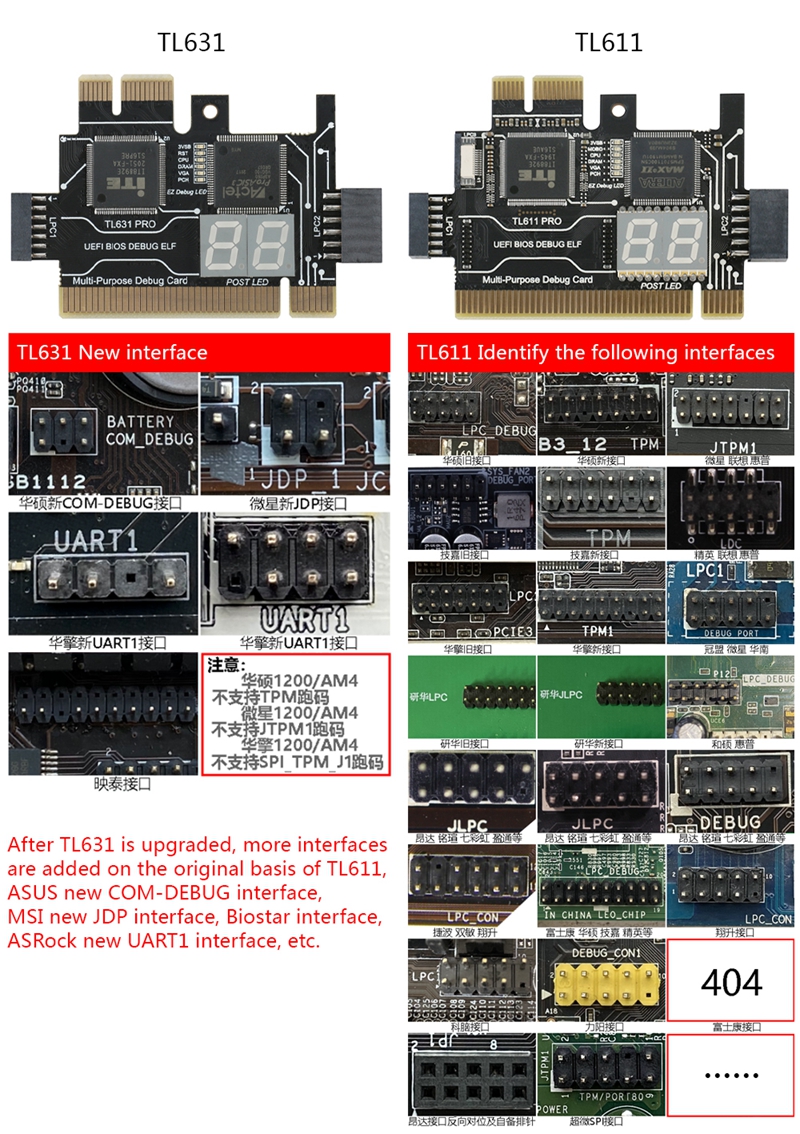

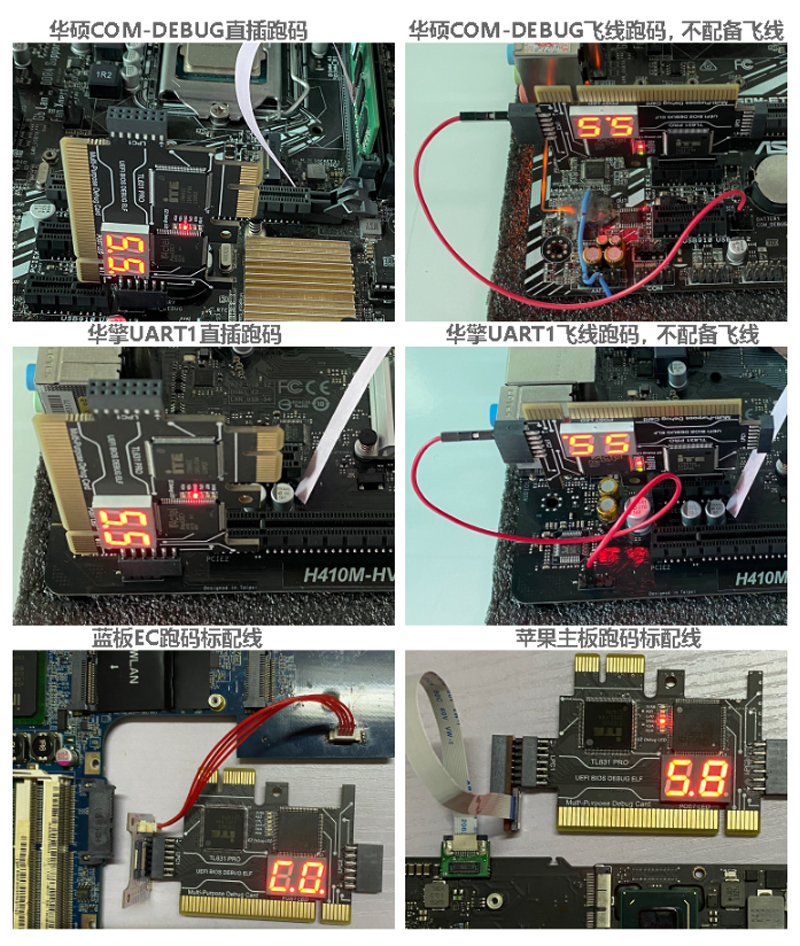

3: LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, for ASUS COM-DEBUG, for ASRock UART1, for MSI JDP, for Supermicro SPl.
4: PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).
5: 3VSB power indicator, to detect whether the power is normal.
6: RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
7: CPU indicator light, to detect whether the CPU module is normal.
8: DRAM memory indicator, to detect whether the memory module is normal.
9: VGA graphics indicator light, to detect whether the graphics card module is normal.
10: PCH south bridge indicator light, to detect whether the south bridge module is normal.

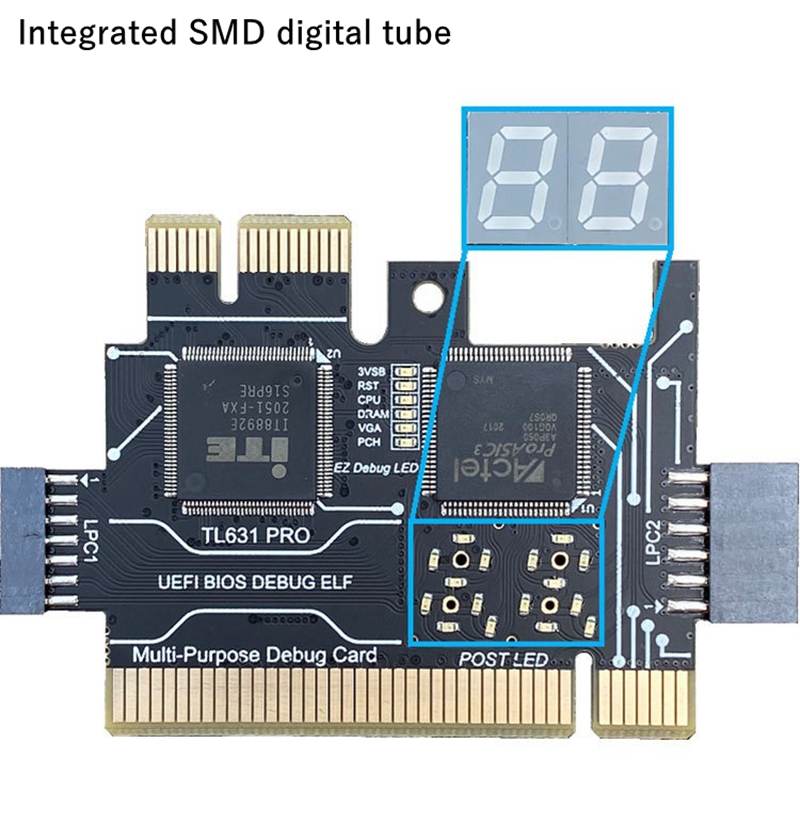

11: DP decimal point, CLK signal display.
12: DP decimal point, FRAME frame signal display.
13: threading hole

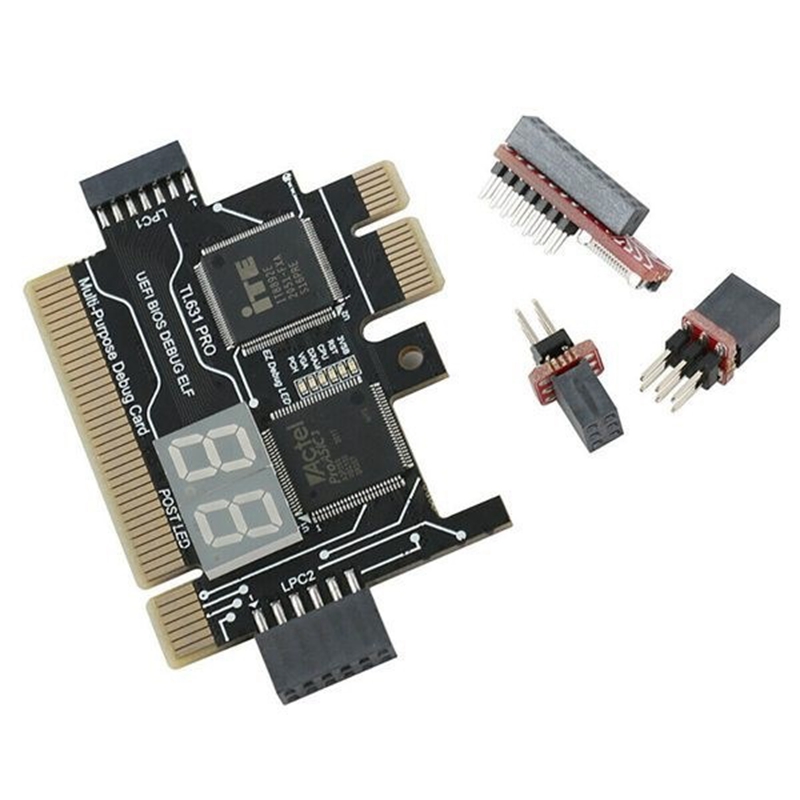

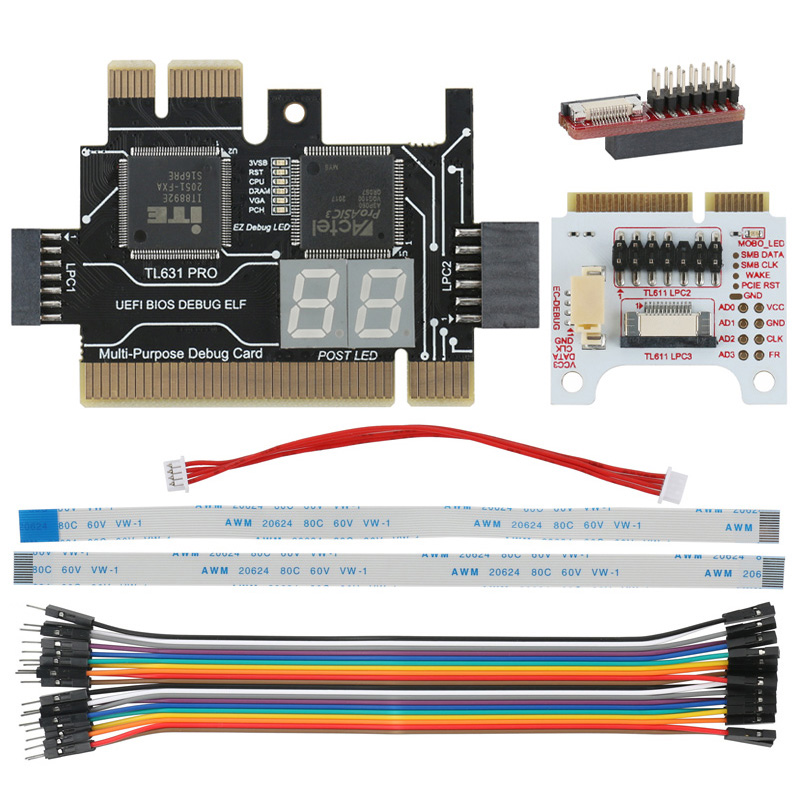

Package Included:
- 1 x TL631 PRO Card Kit
- 1 x Adapter Card
- 1 x Pin Cable
- 2 x Flat Cable
