TL866II Plus USB rogrammer BIOS Programmer with 10 IC Adatpers High Speed

TL866II Plus USB rogrammer BIOS Programmer with 10 IC Adatpers High Speed

Special Functions:
- AVR micro-controller series high speed programming
- PIC full range of 8-bit micro-controller programming
- Serial 24/25/35/45/93 series programming
- High performance BIOS programmer
- Car computer commonly used chip programming

Features:
- Support one computer with 4 programmers to run at the same time.
- Small size, high density, low power consumption, high performance, and comprehensive programmer.
- All chips do not require an external power supply, and their low power consumption ensures that the USB port provides enough power.
- Best internal 40-pin over-voltage protection, the strongest VPP, VCC four-level over-current protection. It won’t reset the PC or the programmer when there is short-circuit.
- Support 15000+ chips, support for serial series, parallel series 40-/44-/48-pin large capacity FLASH.
- Unique serial programming ICSP interface, supporting both serial download and high speed parallel high voltage programming.
- Really test 74/54 CMOS4000 series integrated circuits. Can be located to the door circuit error.
- The chip serial number function is the most complete and practical.
- Originally support AVR micro-controller with internal RC correction byte calibration for chip mass production operation. The brute-forced software cannot be run directly on another chip of the same model.
- Automatically detect poor chip pin contact or mis-insertion to avoid damage to the device.

More Details:
★ High Speed Programming
Built-in high-performance, high-capacity USB interface micro-controller, communications speed 12Mbps, with (for each chip) well-designed programming algorithms and USB high-speed communications. Probably the fastest one of the integrated development programmers, which is already in line with the needs of small batch rapid production. Compared with similar products, the chip programming speed is several times faster, even 10 times or more, 4Mbits parallel FLASH ROM, the programmer programming (erasing, writing, verifying total time) only takes about 36 seconds, reading and writing a 32MB TE28F320 only needs 32+79 seconds, and most of the parallel FLASH chip programming simultaneously check, found that the error can terminate the programming immediately, read and write a 8Mbits serial 25P80 only 9.3 seconds (read) + 1.7s (write) time . The 64MB chip is only 14.5 seconds + 69 seconds. Supports large capacity 25 series chips in common 8PIN and 16PIN packages. The same computer can be connected to 4 programmers for mass production.

★ Ultra Low Power Consumption
Powered by ultra-low-power chips and USB interface, all chips are programmed without an external power supply. The measured power consumption is less than 20mA. 7mA when not programming, the maximum power consumption is 5mA per LED power indicator. The default is working in the micro power state. The power loss rate during programming is less than 20%. Provides superior VCC VPP programming current through the USB interface. Provides sufficient programming power for all programmable chips (up to 2W of programmed power output). And even if the programmer continuously programs the chip for a long time, you can hardly feel the programmer has heat.

★ Super Portable Performance
Compact size: 10 x 6 x 2.5cm, only the size of the driver's license. In addition, thanks to its ultra-low power consumption, the external power supply is truly eliminated, and the portable performance is superior.

★ Programmed Programming Power Supply
The VPP and VCC programming voltages are independently programmed, with programmable VCC from 1.8 to 6.5V and VPP from 1.8V to 18V powered chips. The power supply is multi-stage LC filtered with minimal ripple.

★ Over-voltage & Over-current Protection
The programmer VCC VPP power supply has independent 3-level over-current protection inside, and added software function to automatically cut off power supply. Each 40P programming socket pin has VPP overvoltage protection. It effectively prevents short-circuit caused by mis-inserted chips or other causes. When any external short circuit occurs, the programmer is not damaged and the programmed chip is well protected. When a short circuit occurs, the programmer turns off the programming power supply VPP and VCC at 100us and sends a message to application program. Thanks to the multi-stage overcurrent protection, the programmer and PC reset will never be triggered by a short circuit.

★ 40PIN Universal Pin
When all chips are programmed, no chip needs to be shifted or turned. The chip is unified forward, and the direction of the programming socket handle is PIN1, which is more in line with the operation habits of users.

★ Super Upgrading Function
Built-in upgrading function for hardware firmware, programming timing is completely controlled by the micro-controller firmware. It can guarantee the update of your programmer firmware FLASH and application software. Download the upgrade program via the Internet and upgrade it by yourself.

★ Chip Serial Number Secondary Development
A variety of automatic numbering functions are commonly used in the programmer. You can use a custom algorithm to implement arbitrary serial numbers through the DLL dynamic library. This feature allows you to generate a unique identification message for each chip during mass production. The logo can also be encrypted with a custom algorithm to protect your product rights more effectively.

★ Universal Serial Programming Interface ICSP
An ICSP serial programming port is perfect for chips that can be serially programmed in-circuit. You can select the ICSP interface to program the MCU on the target board, the wiring method of the ICSP port, and the HD picture prompt in the program. This makes it easy to update the chip that has been soldered on the board. ICSP now supports 24/25/93A series serial EEPROM, TMEM89S51, 52, ATMEGAxxx AVR full range and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx full range, Xinmao SYNCMOS SM59Dxx/SM59Rxx full range of chips for online serial programming. There are more and more microcontrollers that support serial online programming. The 6 lines of the ICSP of this programmer, except for one ground line GND, lead to the full-featured I2C, SPI and UART serial bus, suitable for various serial communication. And each line can give VCC, VPP or GND of super high current.

★ Powerful 54/74F/LS/HC CMOS4000 Series Integrated Circuit Comprehensive Function Test
The first development programmer to test common logic ICs, test errors that can be located to logic gates, and test any combination of inputs that may occur with an integrated circuit.

★ Programmer Self-test Function
The programmer can check the VPP VDD GND and input and output signals of each pin, and perform internal actual short-circuit self-test operation on VPP and VCC over-current (simultaneously apply VPP VCC and GND to a pin for short-circuit).

★ AVR Single-chip Micro-controller One-to-one Encryption
There is RC Calibration (correction byte) in AVR micro-controller. Byte value may be the same every dozen chips and cannot be modified. The micro-controller software can read value and determine whether the code can be used on another chip. A custom encryption algorithm ensures that hackers cannot use it directly. The programmer can automatically read in the RC byte before programming. Developers can get the value of the byte in the DLL dynamic function, and then automatically calculate the encrypted data into the memory according to the value and your requirements. Mass production is enabled. (The installation package contains an example of ATMEGA8 detailed encryption for reference).

★User-friendly Operation Interface
The operation interface is perfect for Windows software users. Built-in binary editor is comparable to professional pure editing software. It can directly read and write modification of BIN files, HEX files, JED and other format files. A complete and practical engineering model makes batch production more convenient and safe.

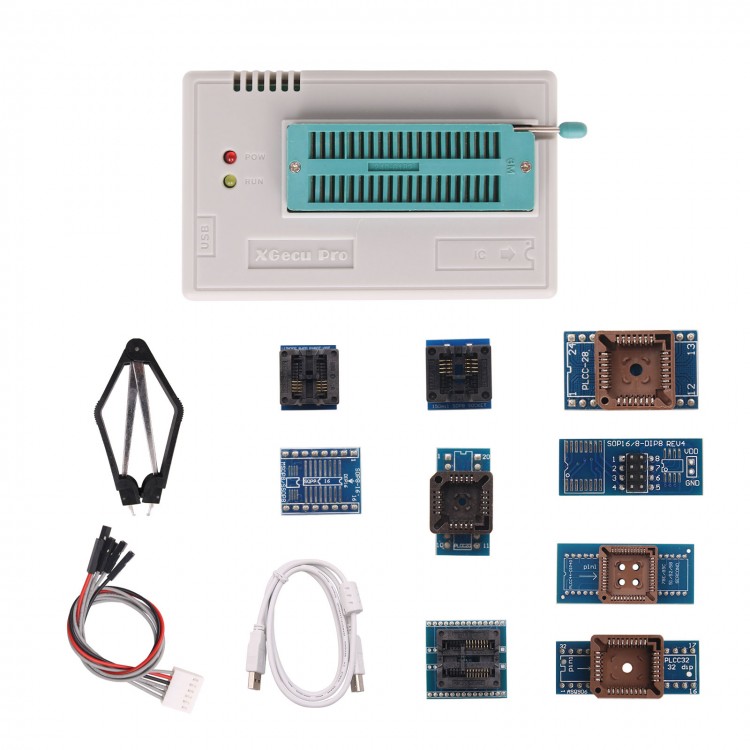

Package Included:
- 1 x Set of TL866II Plus USB Programmer
