TLL-90S Protractor Inclinometer Laser level 0.005deg Accuracy + Bluetooth Dongle

TLL-90S Protractor Inclinometer Laser level 0.005deg Accuracy + Bluetooth Dongle

    Features:

    Introduction

    The SlopeView TLL-90 is a low cost and high accurate device for measuring surface and single axis inclinations. It is based on the revolutionary technology called Micro-Electro-Mechanical Systems (MEMS), in conjunction with sophisticated software techniques to accomplish a guaranteed accuracy of better than ±0.05?? and with measurement resolution of 0.01?? in the favorable measurement range.

    SlopeView TLL-90 provides not only ultra high precision measurement of angle but also bundles with a Class2 tile laser for extending the angle projection and provides alignment aid for the user’s work. Together with other distinguished features such as dot matrix LCD, beeper alert and precision settings, SlopeView TLL-90 is the best tool to make your work better and easier

Specifications
- Power Consumption: Standby: 10uA, Operation: 20mA.
- Standby Battery Life: 4000 hours
- Operating Battery Life: 30 hours

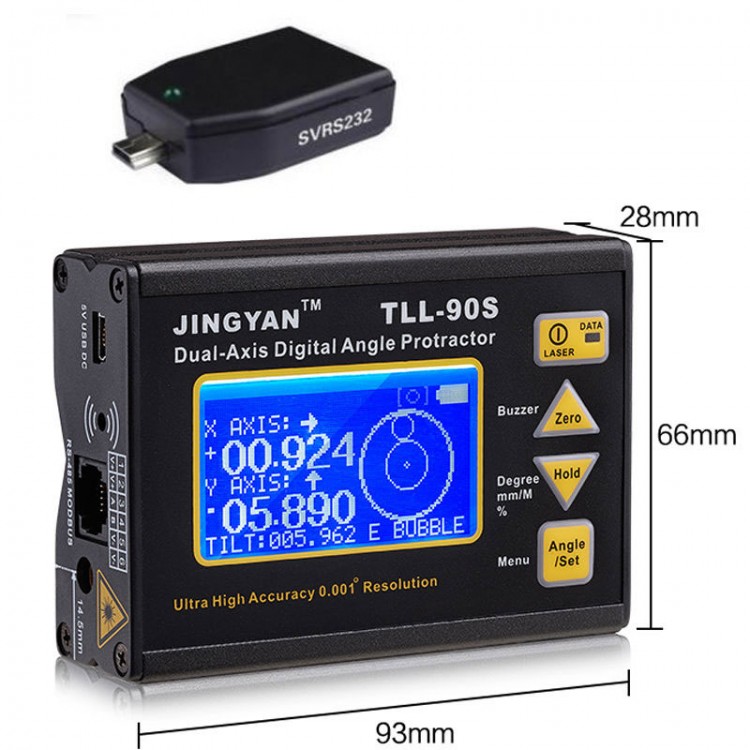

- Dimensions (in mm): 93(L) x 66(W) x 28(H)
- Magnetic Base: affix at 2 face
- Magnetic Force: N35
- Weight: 120gram

    1) TLL90S: High accuracy ±0.005°, high resolution 0.001°
    2) Dual and Single axis with user friendly LCD display angle
    3) Laser module installed for alignment
    4) Rechargeable
    5) V Shape Aluminum metal case for easy to fit at the corner or pipe.
    6) 2 Side Magnetic base with milled surface
    7) Audible alarming at settable angle range
    8) Any angle measurement with gyro
    9) USB / Bluetooth to pc connection need adapter
    10) PLC Modbus RS485 connection with 6P6C socket, connect up to 255 unit in one network


    Specifications
    Gravity Measurement Accuracy: 0 to 20°: ± (0.005°)
    20 to 70°: ± (0.01°)
    70 to 90°: ± (0.005°)
    *After Calibrated
    Measuring range: Single axis: 360°, Dual axis: ±40°
    Resolution: 0.001°
    Gyro Measurement 0.5°
    Accuracy:
    Gyro Measurement 0.1°
    Accuracy:
    Gyro Rotation Speed: <50°/s
    Display Response time: <0.6 second
    Audio sound: 60dB @ 30cm
    Zero offset drift angle per °C: 0.002° (typical)
    Operating temperature: 0 to 50°C
    Storage temperature: -10 to 60°C
    User Interface: Mono-color LCD with backlight
    Supply Power: Rechargeable Li-Polymer 3.7V
    Charger port: 5V 500mA Mini type-B USB port


    Application
    -Interior decoration
    -Construction area
    -Plumbing
    -Floors & Stairs
    -Woodwork


    Including:
    1 pc TLL90S Protractor
    1 pc  Charger  (US or EU type, we will ship according to your country type)
    1 pc USB cable (Charging only Not for PC communication)
    1 pcs Bluetooth PC Adapter


    Bluetooth PC Adapter (TLL-90S, DXL360 series inclinometer)
    Connect TLL-90S, DXL360 series inclinometer to computer by bluetooth.
    Wireless communication can easy for connection.
    Using SV-PC interface software can data logging and save as excel file.

    Specification:
    1) PC connection: Bluetooth Wireless
    2) Distance: 10m @ open area
    3) Protocol: Serial Communication
    4) Buad rate: 9600
    5) Battery life: 1.5hrs *Can operate during charging
    6) Size: 38X28X10mm
    7) Weight: 20g

    Notice: The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
