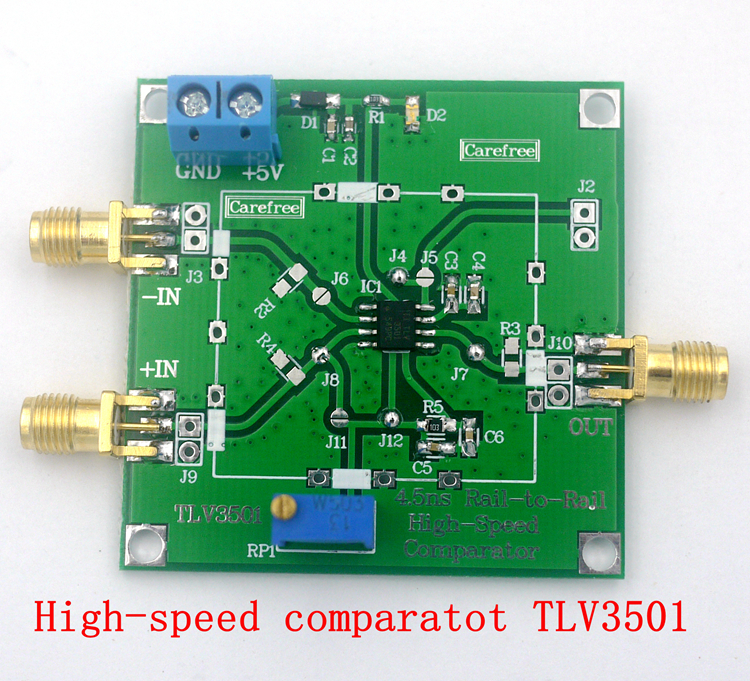

TLV3501 High Speed Comparator Frequency Meter Front-End Shaping Module 4.5ns
Description:
The TLV3501 is a single-channel, high-speed push-pull output comparator with a 4.5 ns delay time and a supply voltage range of + 2.7V to + 5.5V. The TLV3501 is ideal for low-voltage applications where the input common-mode range extends beyond the swing input. Rail-to-rail output can drive CMOS or TTL logic directly. The module can be wide-voltage range of the periodic signal shaping, as frequency, phase difference and other time-domain measurement of the front conditioning module.
Application:
- Sine wave to square wave
- Zero-crossing comparator
- Universal comparator
Technical Parameters:
- Power Supply Voltage: 2.7-5VDC
- Input Voltage: 10-1000mV (effective value)
- Output Level: Rail-to-rail output which can directly drive TTL / CMOS level
- Input Frequency: DC - 200MHz
- Interface Type: SMA female
- Input Impedance: 50Ω

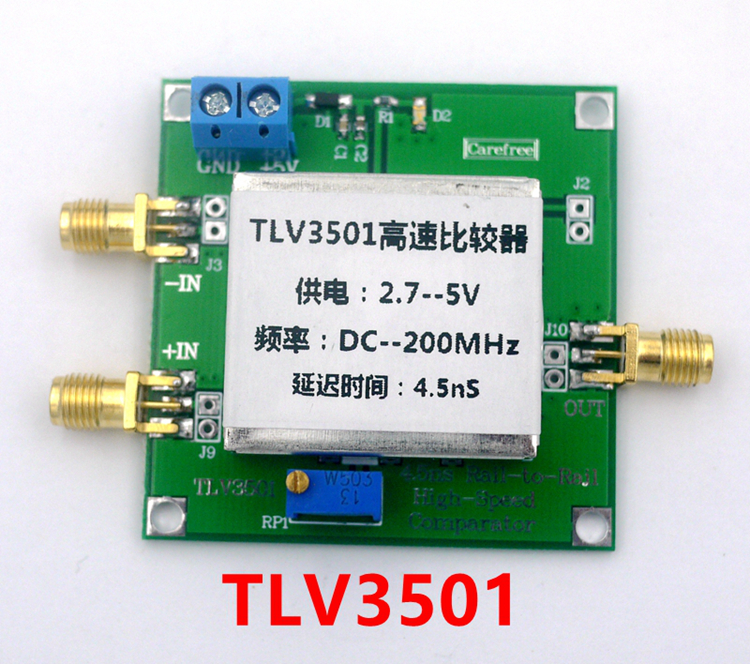

- Shielded housing
- Provide PDF schematic diagram
Measured Waveform:
1MHz (With 1VPP sine wave input, waveform is output after passing the comparator)

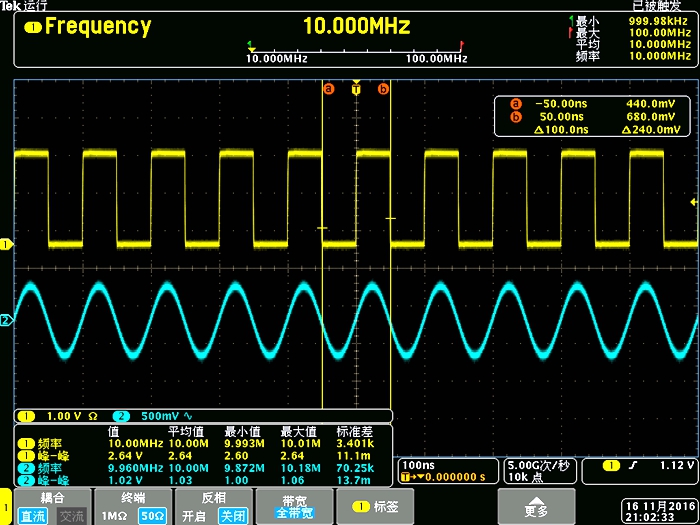

10MHz (With 1VPP sine wave input, waveform is output after passing the comparator)

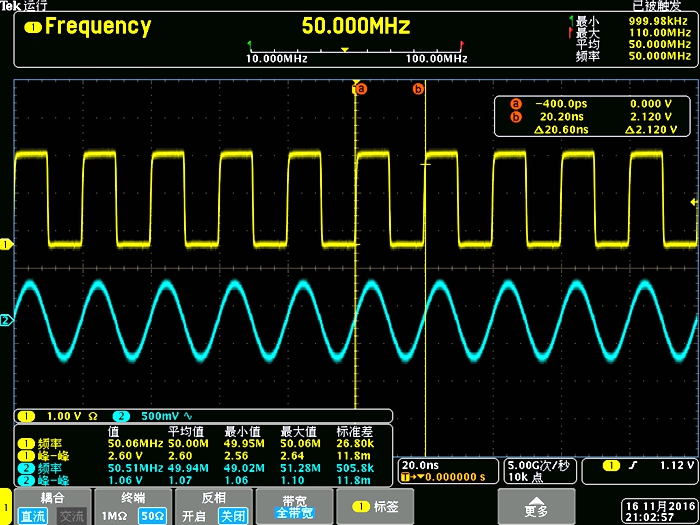

50MHz (With 1VPP sine wave input, waveform is output after passing the comparator)
100MHz (With 1VPP sine wave input, waveform is output after passing the comparator)

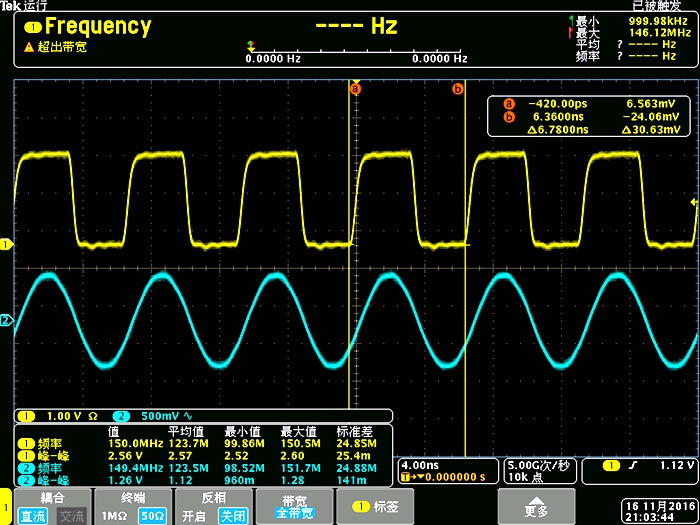

150MHz (With 1VPP sine wave input, waveform is output after passing the comparator)

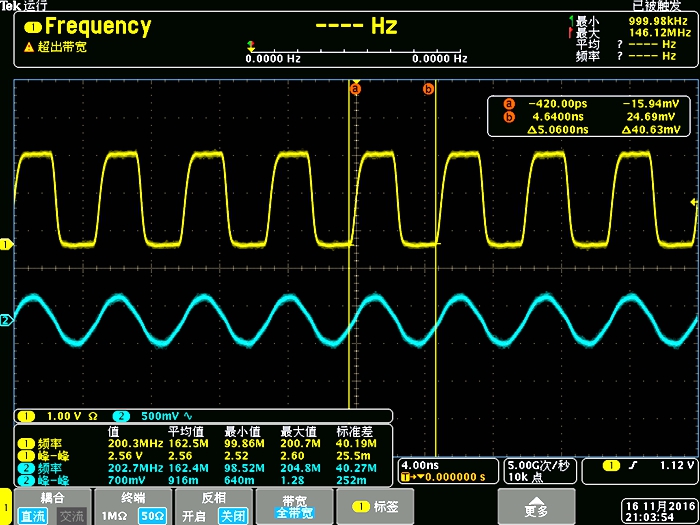

200MHz (With 1VPP sine wave input, waveform is output after passing the comparator)
Package Included:
- 1 x High Speed Comparator TLV3501
