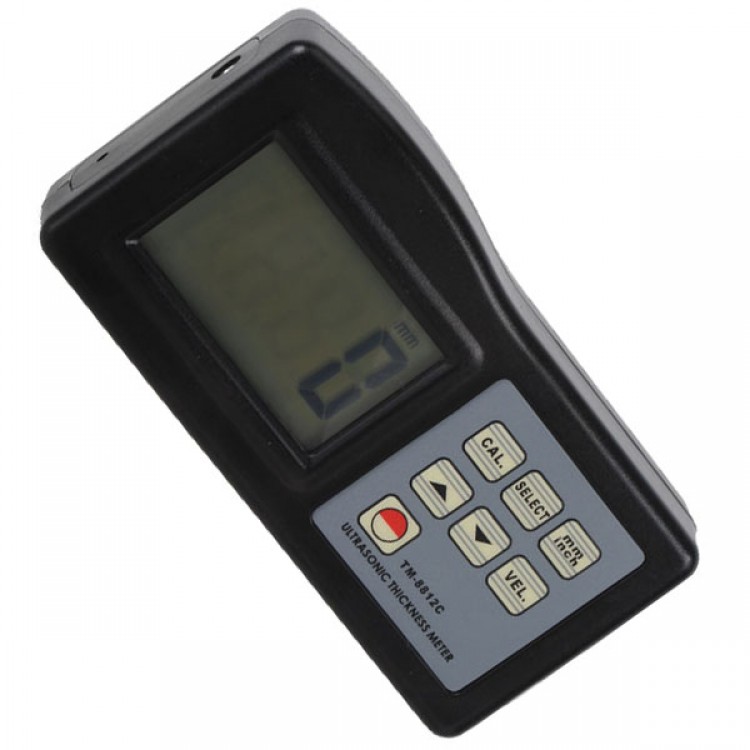

TM-8812C 0.01mm Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC Testing
Introduction:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.
in industries of petroleum,shipbuilding,power station,and machine manufacturing
Specifications:
- Measuring range (metric/imperial): 1.0-200mm,0.05-8inch
- Operating principle: ULTROSONIC
- Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
- Sound velocity: 500-9000m/s
- Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
- Calibration block: included
- Resolution: 0.01mm
- Accuracy: ±(0.5%n+0.1)
- RS232C interface: with RS232C
- Power supply: 4x1.5V AAA (UM-4)battery
- Battery indicator: low battery indicator
- Operating conditions:0-+45℃(32℉-104℉),≤90%RH
- Dimensions: 120x62x30mm
- Weight: 164g(not including battery)
