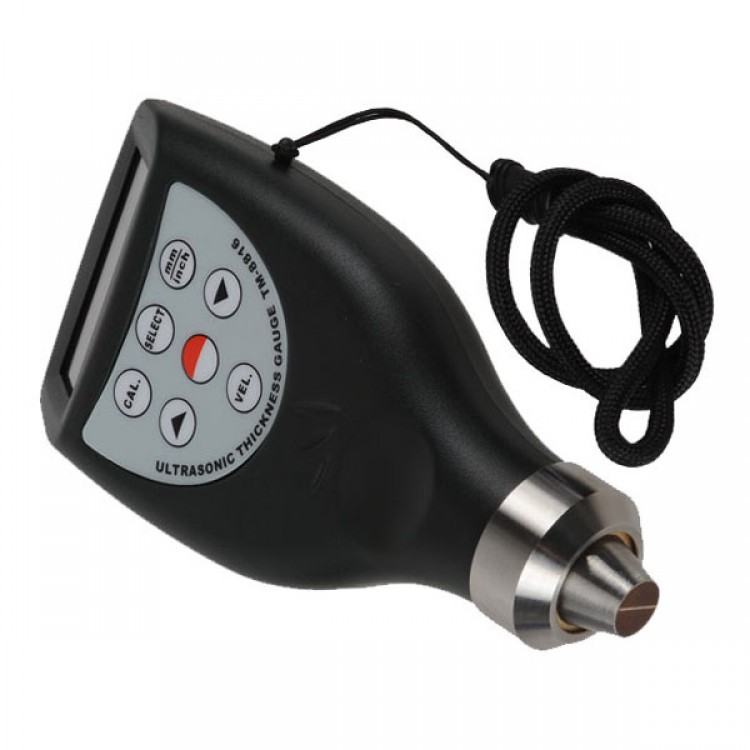

• TM-8816C 0.01mm Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC Testing

TM-8816C 0.01mm Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC Testing

Availability: Out Of Stock

  • Price:$213.33
  • Price in reward points: 2133 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $209.06 $204.80 $198.40 $189.86 Contact US
Quantity:

TM-8816C 0.01mm Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC Testing


Introduction:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.
in industries of petroleum,shipbuilding,power station,and machine manufacturing

Specifications:

- MMeasuring range (metric/imperial): 1.0-200mm,0.05-8inch(45# steel)
- Resolution: 0.01mm
- Operating principle: ULTROSONIC
- Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
- Sound velocity: 500-9000m/s
- Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
- Calibration block: included
- Resolution: 0.1mm(TM8816C 0.01mm)
- Accuracy: ±(0.5%n+0.1)
- RS232C interface: with RS232C
- Power supply: 4x1.5V AAA (UM-4)battery
- Battery indicator: low battery indicator
- Operating conditions:0-+45℃(32℉-104℉),≤90%RH
- Dimensions: 120x62x30mm
- Weight: 164g(not including battery)
