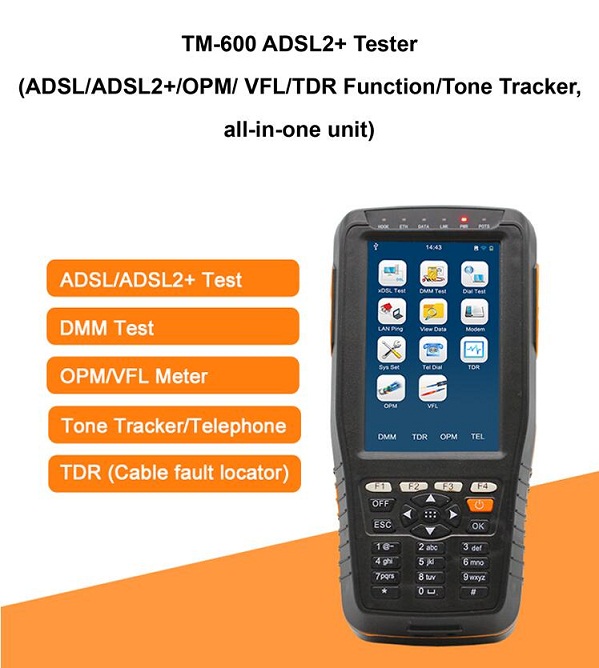

TM600 ADSL2+ Tester ADSL/ADSL2+/OPM/ VFL/TDR Function/Tone Tracker All-in-one

TM600 ADSL2+ Tester ADSL/ADSL2+/OPM/ VFL/TDR Function/Tone Tracker All-in-one

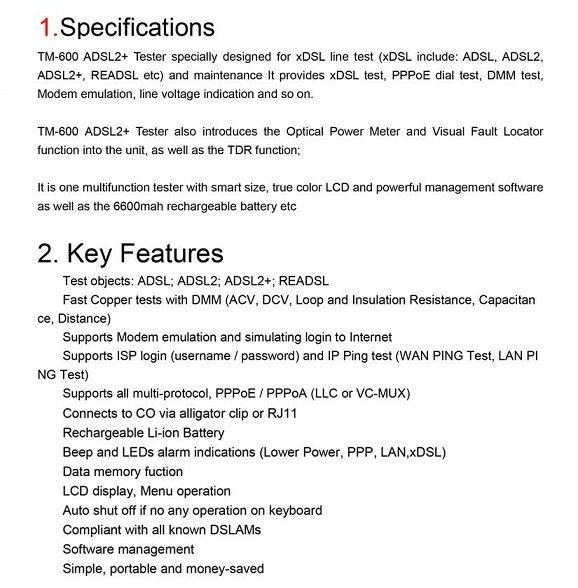

Specifications:
- TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
- TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;
- It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc


Key Features:
Test objects: ADSL; ADSL2; ADSL2+; READSL
Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
Supports Modem emulation and simulating login to Internet
Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

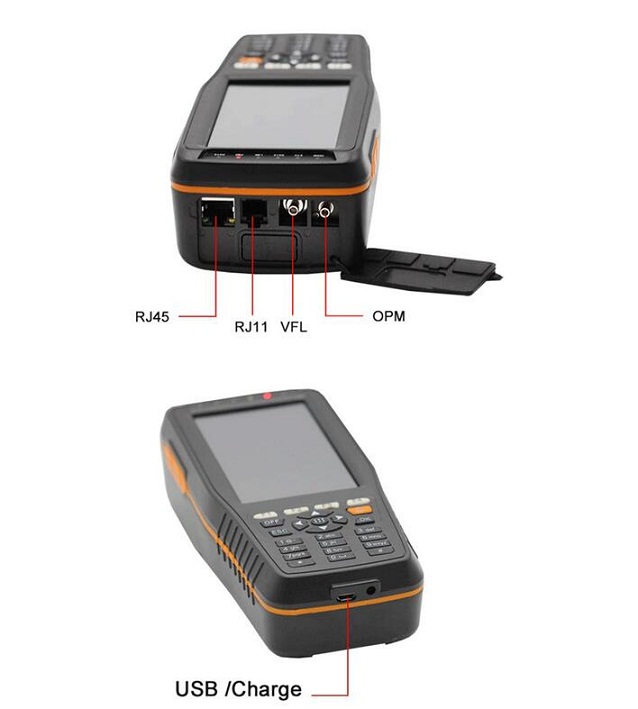

Connects to CO via alligator clip or RJ11
Rechargeable Li-ion Battery
Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
Data memory fuction
LCD display, Menu operation
Auto shut off if no any operation on keyboard
Compliant with all known DSLAMs
Software management
Simple, portable and money-saved

Functions:
DSL Physical layer test
Modem Emulation (Replace the user Modem completely)
PPPoE Dialing (RFC1683,RFC2684,RFC2516)
PPPoA Dialing (RFC2364)
Telephone Function
DMM Test
Ping Function (WAN & LAN)
Data upload to computer and software management
Setup system parameter: backlight time, shut off automatically time without operation, press tone,
Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
Check dangerous voltage

Optical Power Meter (Optional)
Visual Fault Locator (Optional)
Tone Tracker (Optional)
TDR Cable Fault Locator (Optional)

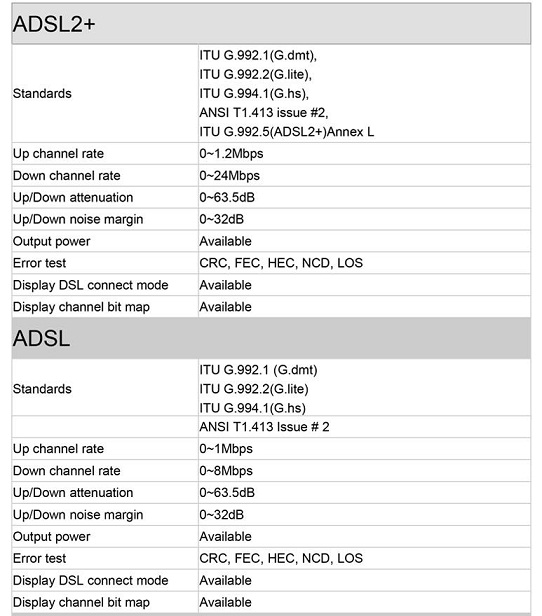

ADSL2+:
Standards: ITU G.992.1(G.dmt),
ITU G.992.2(G.lite),
ITU G.994.1(G.hs),
ANSI T1.413 issue #2,
ITU G.992.5(ADSL2+)Annex L,
Up channel rate:0~1.2Mbps
Down channel rate:0~24Mbps
Up/Down attenuation:0~63.5dB
Up/Down noise margin:0~32dB
Output power:Available
Error test     CRC,FEC,HEC,NCD,LOS
Display DSL connect mode:Available
Display channel bit map:Available

ADSL:
Standards
ITU G.992.1 (G.dmt)
ITU G.992.2(G.lite)
ITU G.994.1(G.hs)
ANSI T1.413 Issue # 2
ITU G.992.5(ADSL2+)Annex L
Up channel rate:0~1.2Mbps
Down channel rate:0~24Mbps
Up/Down attenuation:0~63.5dB
Up/Down noise margin:0~32dB
Output power:Available
Error test:LOS,HEC,FEC,CRC
Display DSL connect mode:Available
Display channel bit map:Available

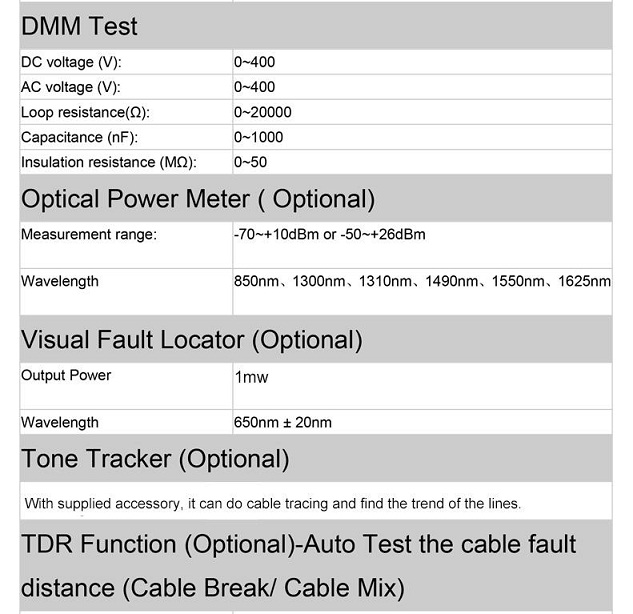

DMM Test:
DC voltage (V):0~400
AC voltage (V):0~400
Loop resistance(Ω):0~20000
Capacitance (nF):0~1000
Insulation resistance (MΩ):0~50

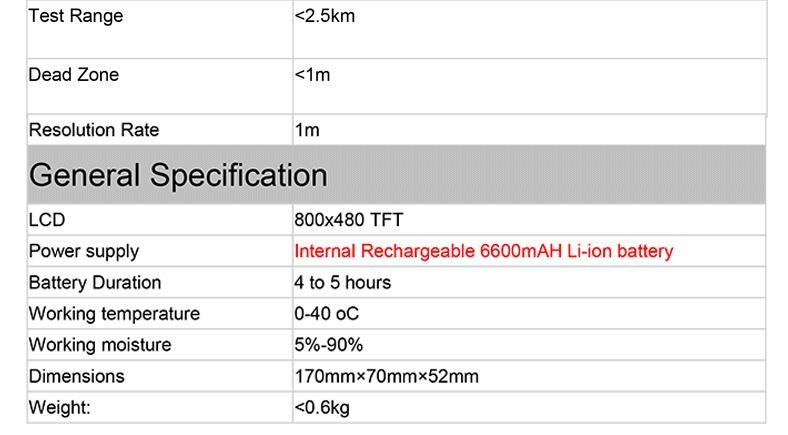

General Specification:
LCD:800X480TFT
Power Supply:Internal Rechargeable 6600mAH Li-ion battery
Battery Duration:4 to 5 hours
Working temperature:10-40°C
Working moisture:5%-90%
Dimensions:170mm×70mm×52mm
Weight:<0.6kg

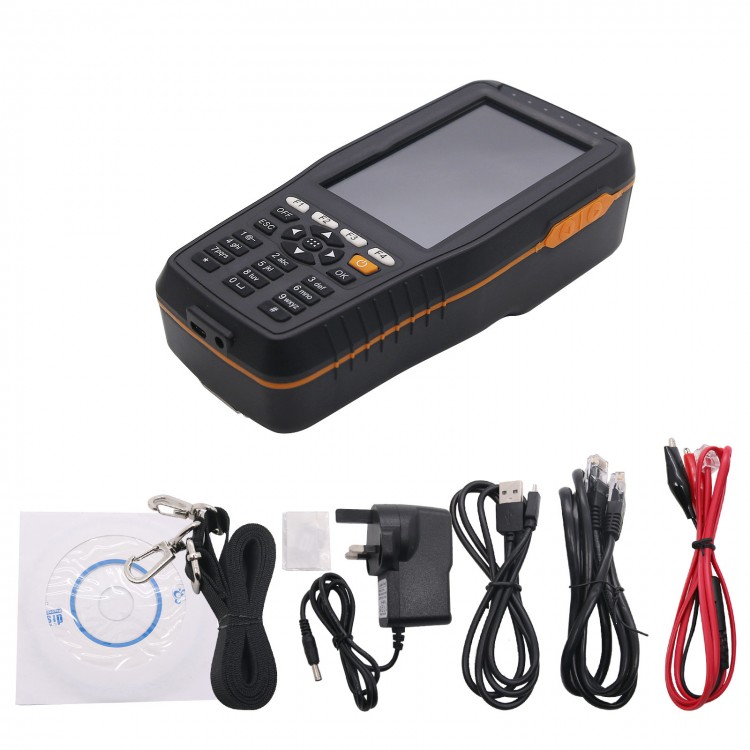

Package List:
- 1 x TM600 ADSL2+ Tester
