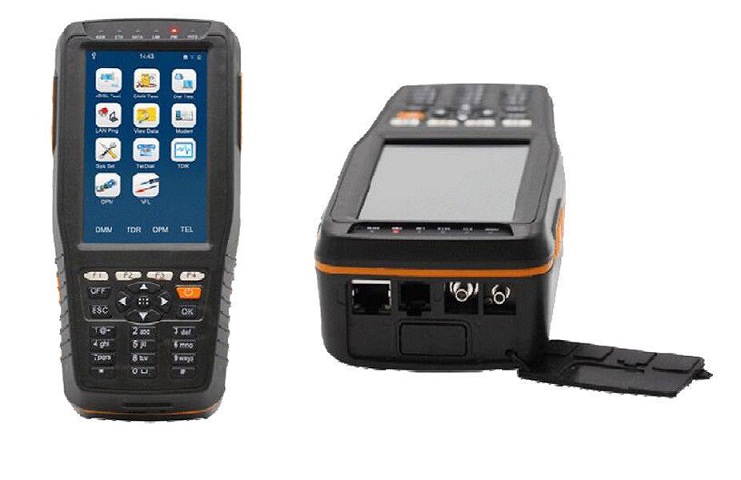

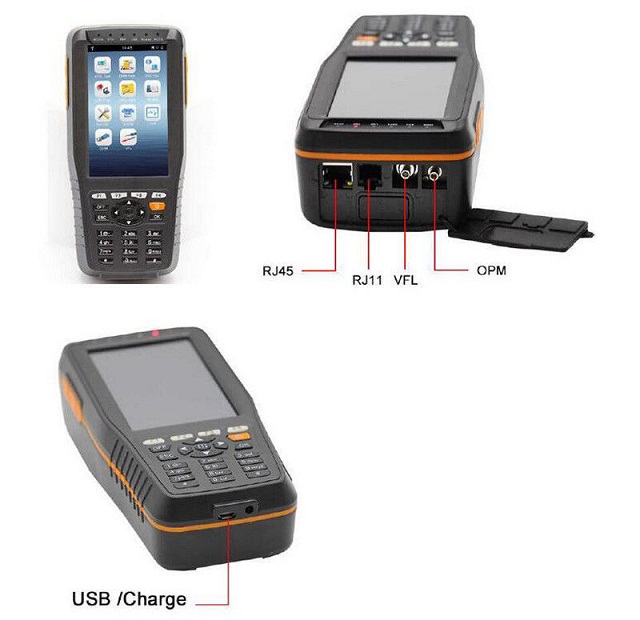

TM600 VDSL2 Tester 4'' LCD Screen ADSL2+VDSL2+OPM+VFL+TDR

TM600 VDSL2 Tester 4'' LCD Screen ADSL2+VDSL2+OPM+VFL+TDR

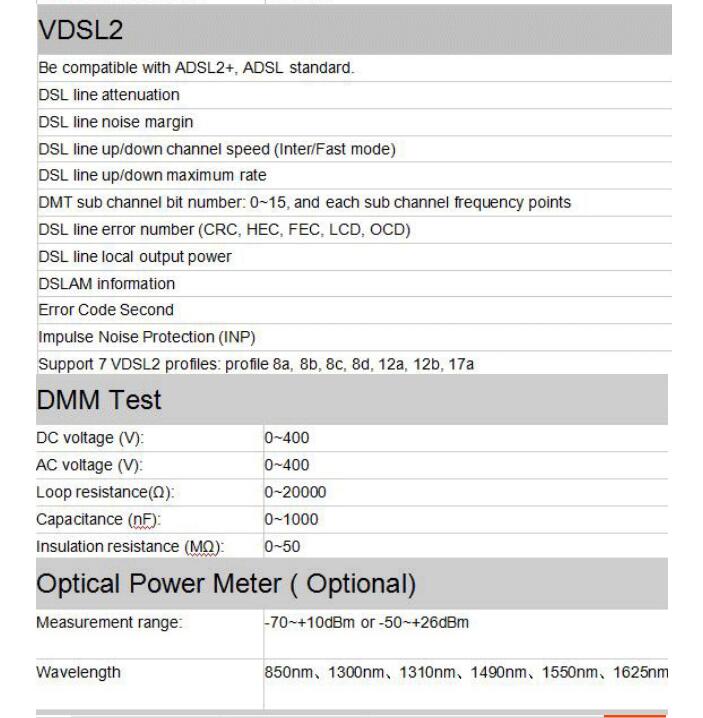

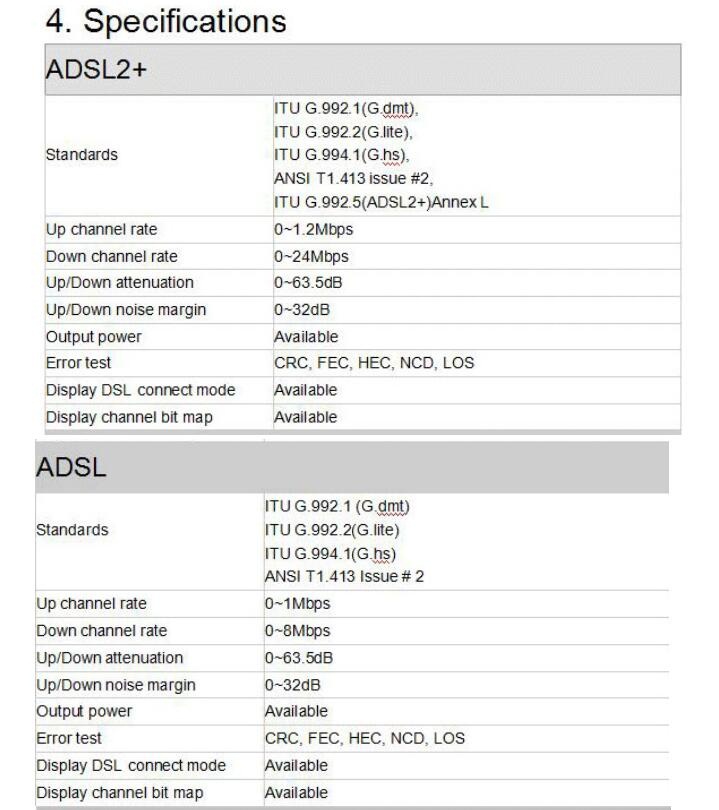

Specifications:
- TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
- TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;
- It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc

Key Features:
- Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
- Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
- Supports Modem emulation and simulating login to Internet
- Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
- Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
- Connects to CO via alligator clip or RJ11
- Rechargeable Li-ion Battery
- Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
- Data memory fuction
- LCD display, Menu operation
- Auto shut off if no any operation on keyboard
- Compliant with all known DSLAMs
- Software management
- Simple, portable and money-saved

Functions:
- DSL Physical layer test
- Modem Emulation (Replace the user Modem completely)
- PPPoE Dialing (RFC1683,RFC2684,RFC2516)
- PPPoA Dialing (RFC2364)
- Telephone Function
- DMM Test
- Ping Function (WAN & LAN)
- Data upload to computer and software management
- Setup system parameter: backlight time, shut off automatically time without operation, press tone,
- Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
- Check dangerous voltage
- Optical Power Meter (Optional)
- Visual Fault Locator (Optional)
- Tone Tracker (Optional)
- TDR Cable Fault Locator (Optional)

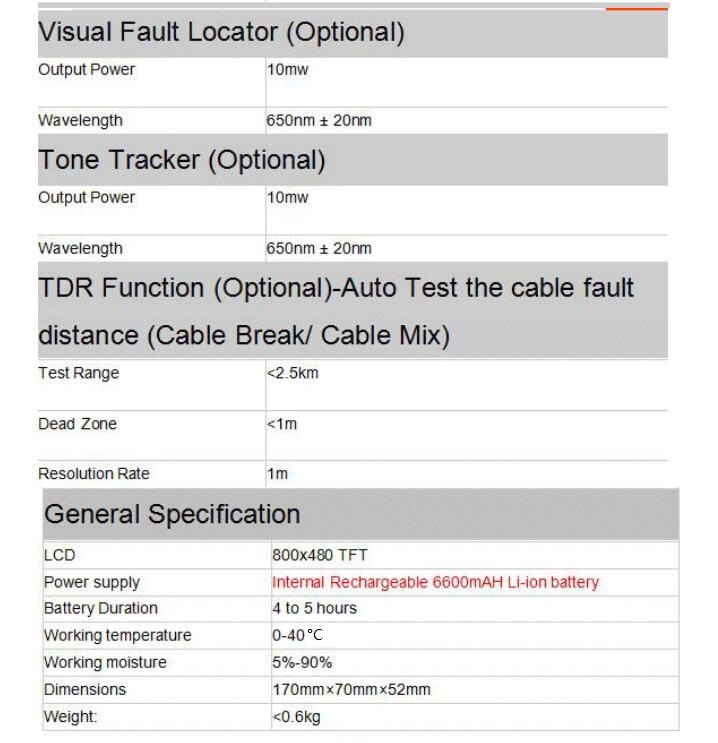

TDR Function (optional) Auto Test the cable fault distance (cable break/cable Mix):
- Test range:<2.5km
- Dead zone:<1m
- Resolution rate:1m

General Specification:
- LCD:800x480 TFT
- Power supply:Internal rechargeable 6600mAH Li-ion battery
- Battery Duration:4 to 5 hours
- Working temperature:0°C-40°C
- Working moisture:5%-90%
- Dimension:170x70x52mm
- Net weight:0.6kg

Package List:
- 1 x TM600 VDSL2 Tester
