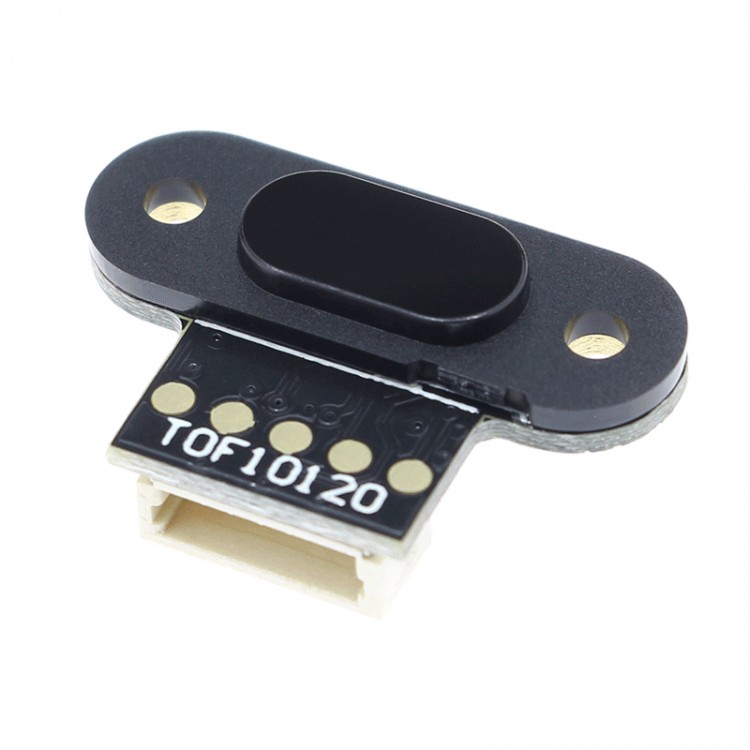

TOF10120 ToF Laser Range Sensor Laser Distance Sensor 5-180cm Serial Port I2C Output 3-5V for Arduino

TOF10120 ToF Laser Range Sensor Laser Distance Sensor 5-180cm Serial Port I2C Output 3-5V for Arduino

Description:
TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows performance independent of object reflectance.

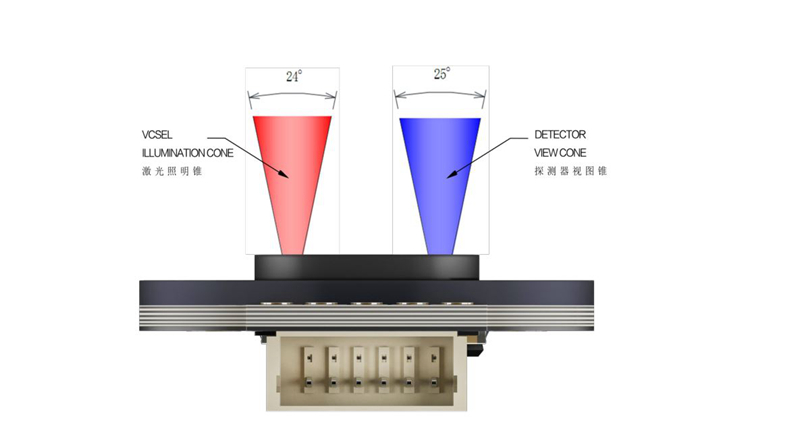

TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.

Features:
- 940nm laser classified as class 1 under operation condition by IEC 60825-1:2014-3rd edition

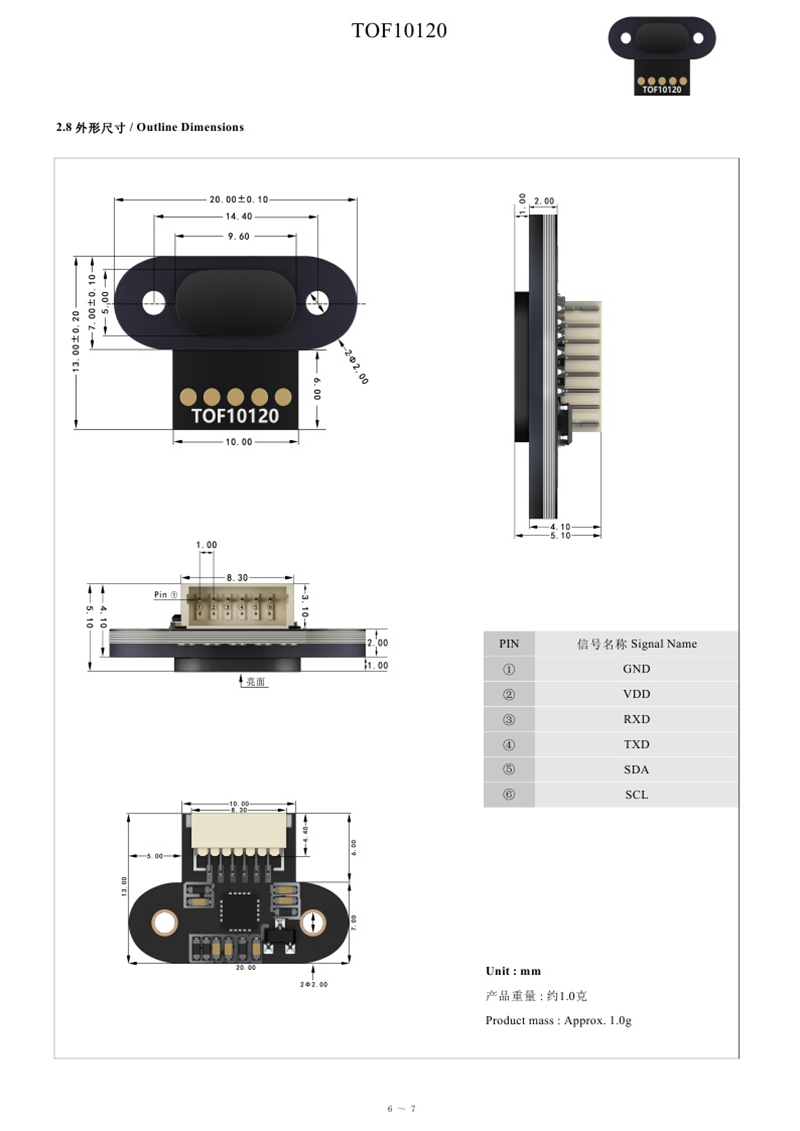

- Small ceramic package（20x13.2x2.0mm）

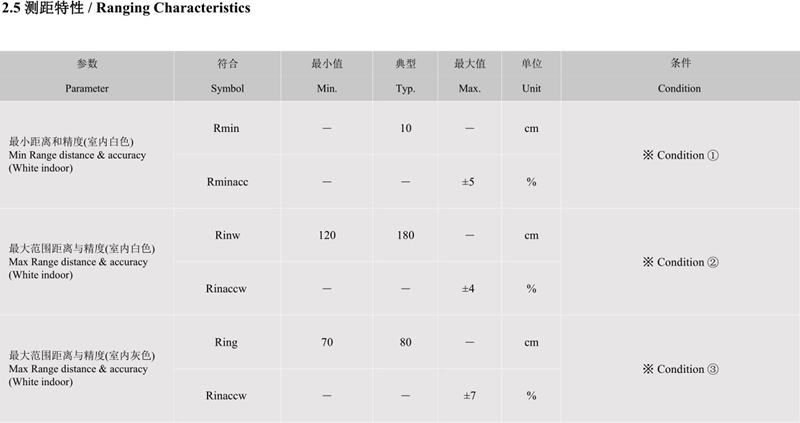

- Long range absolute range measurement up to 1.8m within 5％ accuracy at indoor
- Reported range is independent of the target reflectance
- Operates in high infrared ambient light levels
- Advanced optical cross-talk compensation
- High speed ranging MAX 30ms
- Standard solder reflow compatible
- No additional optics
- Single power supply
- Txd interface for device control and data transfer
- Lead-free, RoHS compliant

Applications:
- High-speed AF
- Continuous AF for video
- User detection for Personal Computers/Laptops/Tablets
- Robotics (obstacle detection)
- White goods (hand detection in automatic faucets, refrigerator, etc.)

Package Included:
- 1 x Laser Range Sensor Module
