TonyPi Pro AI Vision Humanoid Robot AI Robot Professional Development Kit for Raspberry Pi 4B/4G

TonyPi Pro AI Vision Humanoid Robot AI Robot Professional Development Kit for Raspberry Pi 4B/4G

Description:
TonyPi Pro is a humanoid robot integrated with AI vision and powered by Raspberry Pi 4B. It features intelligent serial bus servos, HD camera and IMU sensor that can detect robot's pose in real time. It serves as an ideal platform for humanoid robots, machine vision and deep learning.

Features:

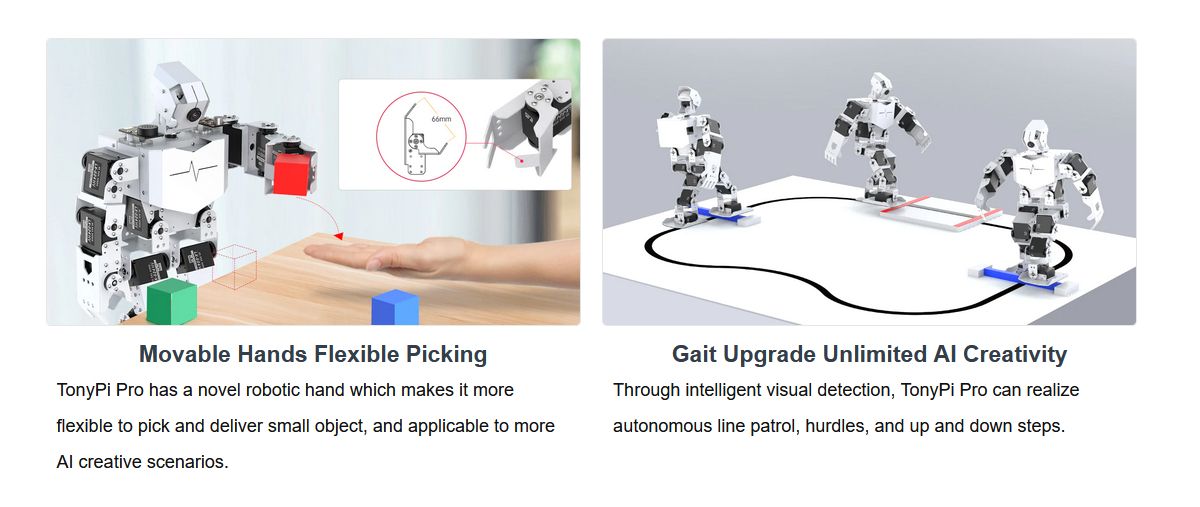

Movable Hands Flexible Picking
TonyPi Pro has a novel robotic hand which makes it more flexible to pick and deliver small object, and applicable to more AI creative scenarios.

Gait Upgrade Unlimited AI Creativity
Through intelligent visual detection, TonyPi Pro can realize autonomous line patrol, hurdles, and up and down steps.

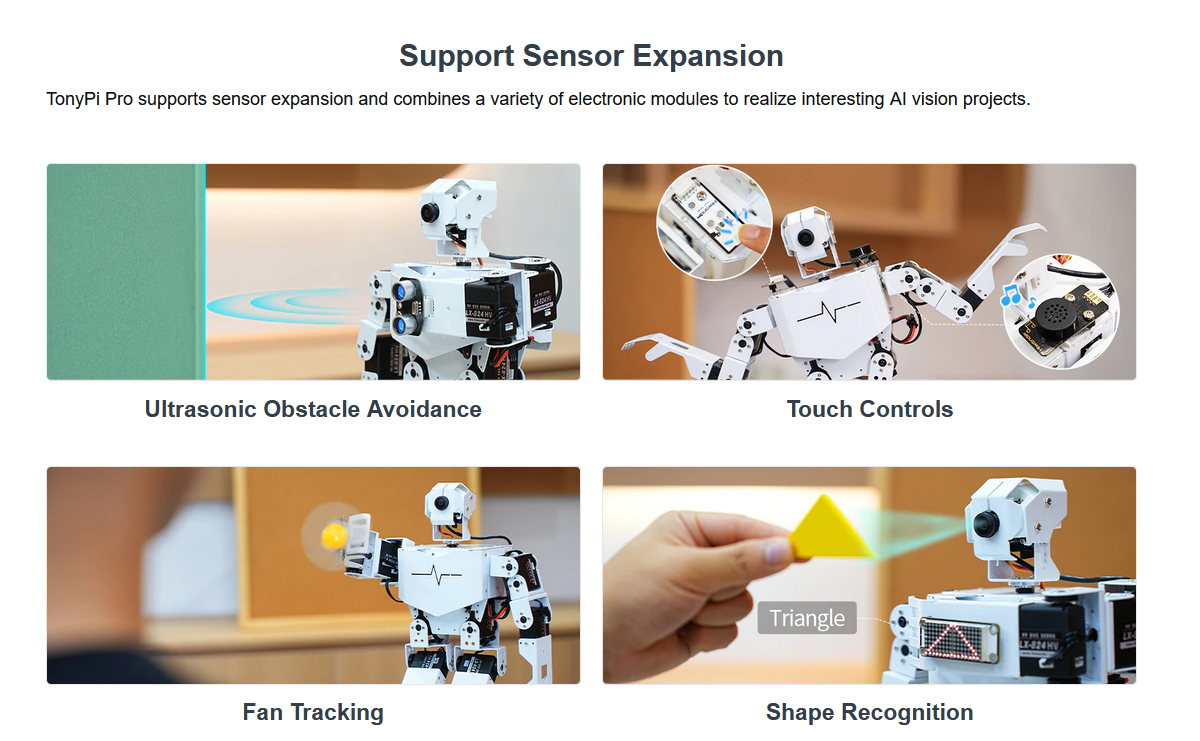

Support Sensor Expansion
TonyPi Pro supports sensor expansion and combines a variety of electronic modules to realize interesting AI vision projects.

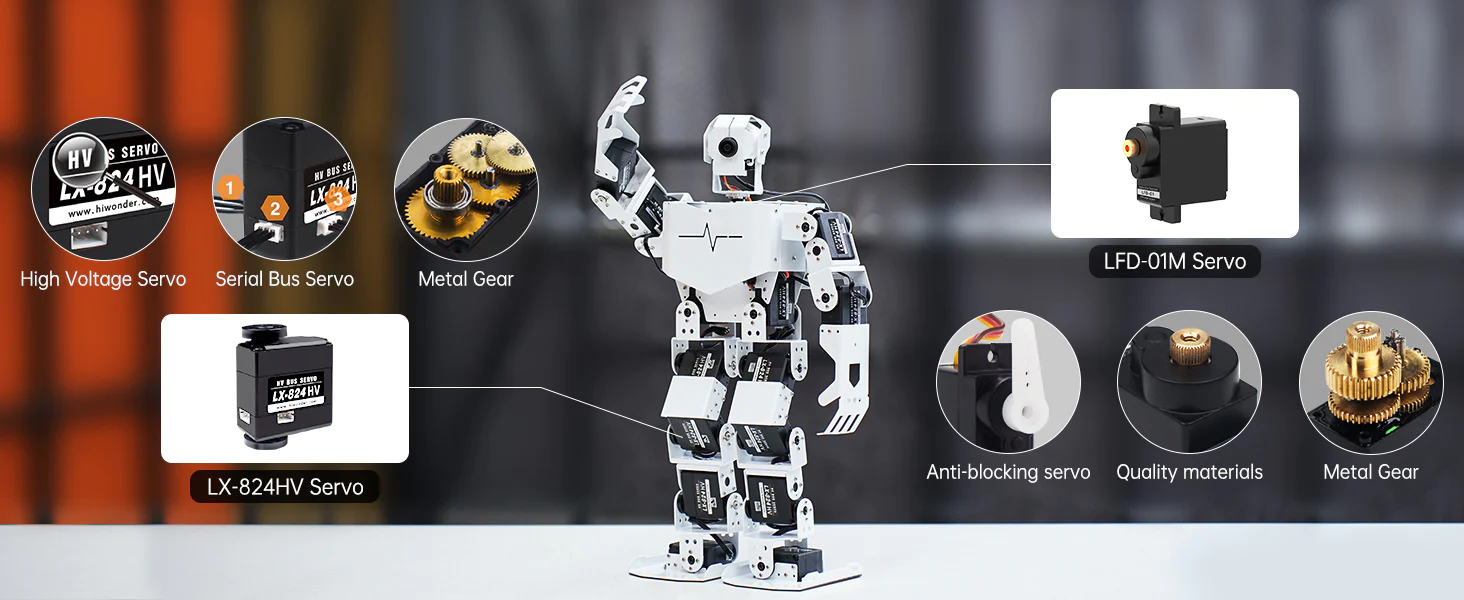

Intelligent High-voltage Bus Servo & Anti-blocking Servo
TonyPi Pro uses intelligent high-voltage bus servo, which has high precision and fast feedback, making the robot have a long battery life. TonyPi Pro is also equipped with an anti-locking servo to ensure that the servo will not be burned out due to stalling or collision, which can extend the service life of the servo.

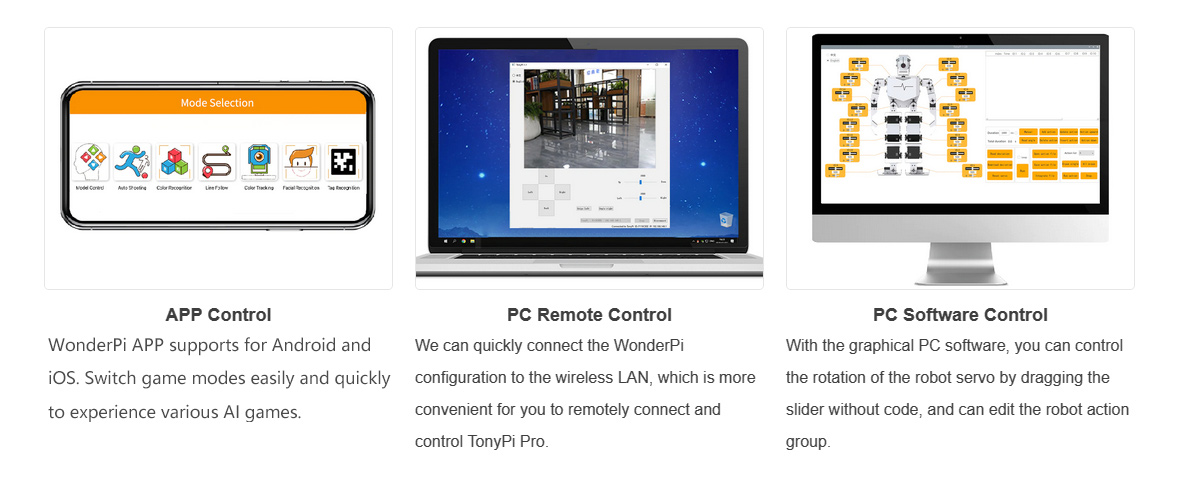

APP Control

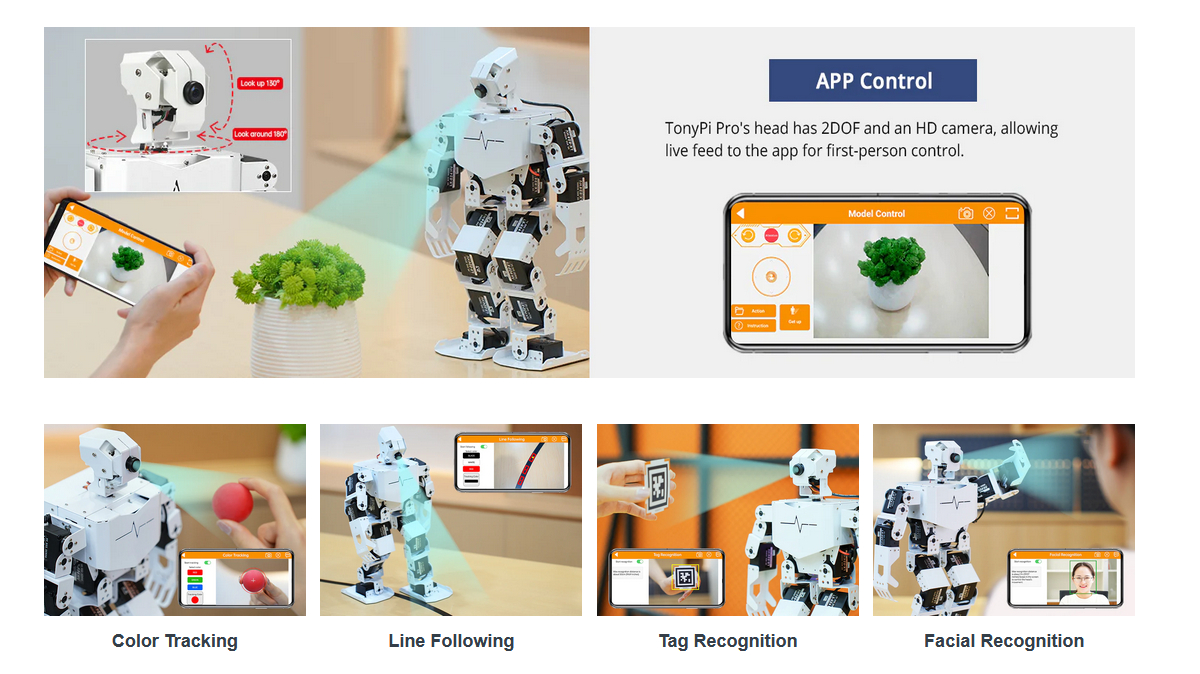

TonyPi Pro's head has 2DOF and an HD camera, allowing live feed to the app for first-person control. WonderPi APP supports for Android and iOS. Switch game modes easily and quickly to experience various AI games.

PC Remote Control
We can quickly connect the WonderPi configuration to the wireless LAN, which is more convenient for you to remotely connect and control TonyPi Pro.

PC Software Control
With the graphical PC software, you can control the rotation of the robot servo by dragging the slider without code, and can edit the robot action group.

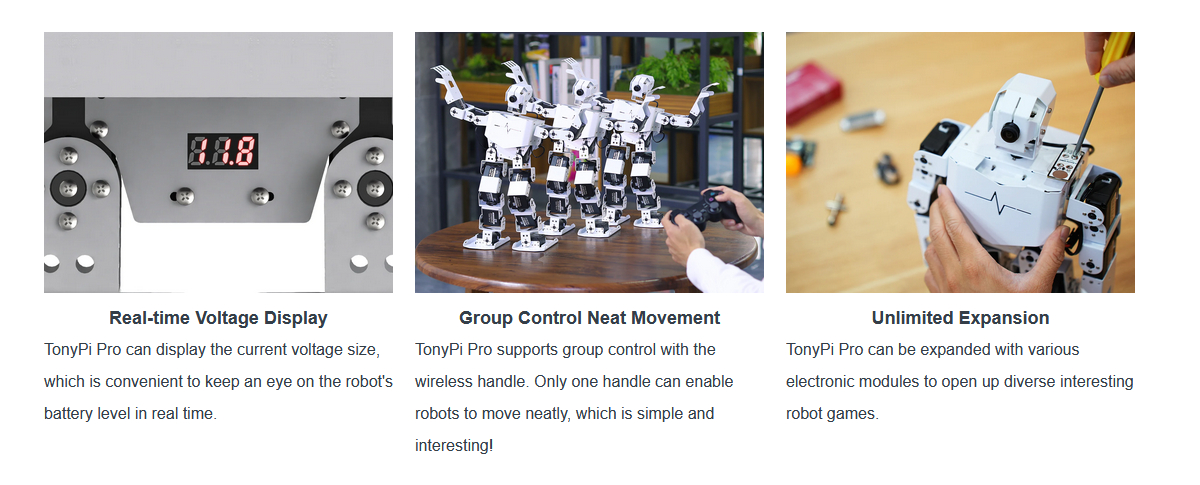

Real-time Voltage Display
TonyPi Pro can display the current voltage size, which is convenient to keep an eye on the robot's battery level in real time.

Group Control Neat Movement
TonyPi Pro supports group control with the wireless handle. Only one handle can enable robots to move neatly, which is simple and interesting!

Unlimited Expansion
TonyPi Pro can be expanded with various electronic modules to open up diverse interesting robot games.

Product Parameters:

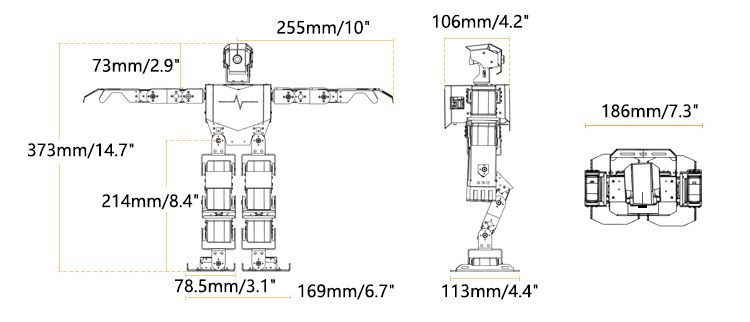

- Size: 373 x 186 x 106mm (14.7 x 7.3 x 4.2inches)
- Weight: About 1800g/4lb

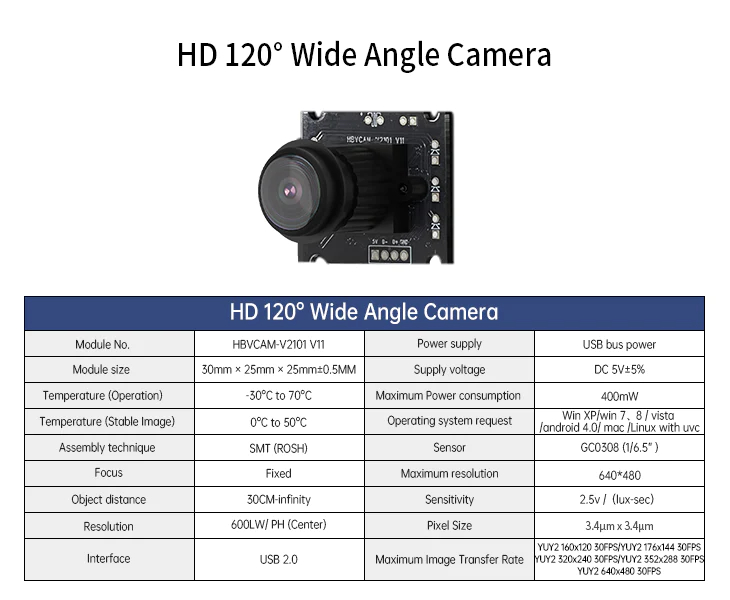

- Camera pixel: 480P
- Rotation: 2 DOF
- Battery: 11.1V 2000mAh 10C lithium battery
- Working hour: About 60mins
- DOF: Head: 2DOF; Shoulder: 2DOF; Arm: 2 DOF (each); Leg: 4 DOF (each); Foot: 1 DOF (each)

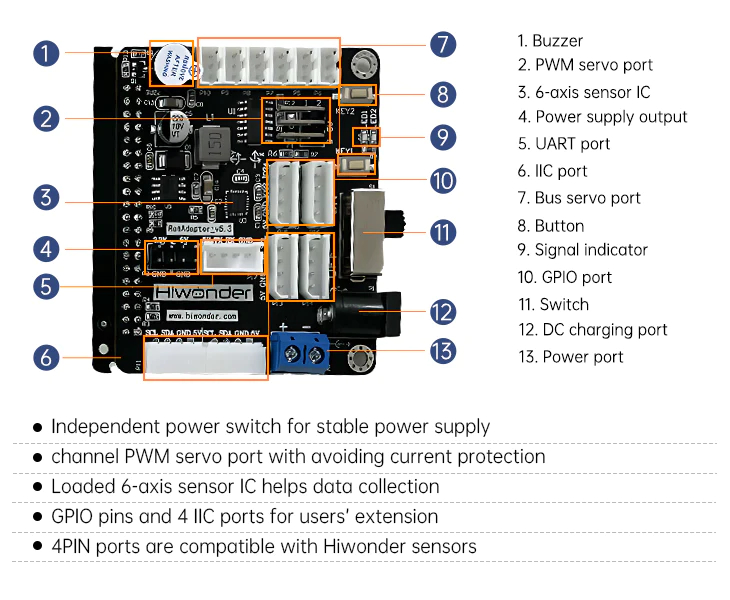

- Hardware: RaspberryPi 4B & expansion board
- Software: APP+PC software
- Communication: WiFi, Ethernet

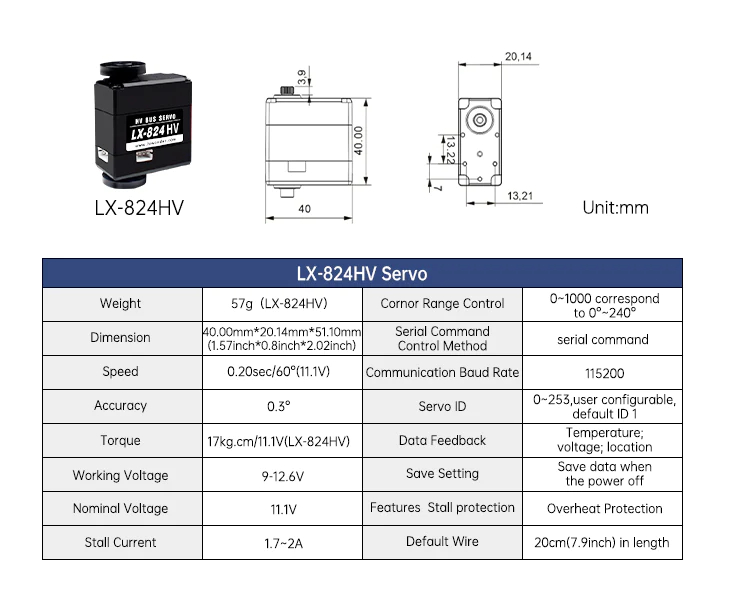

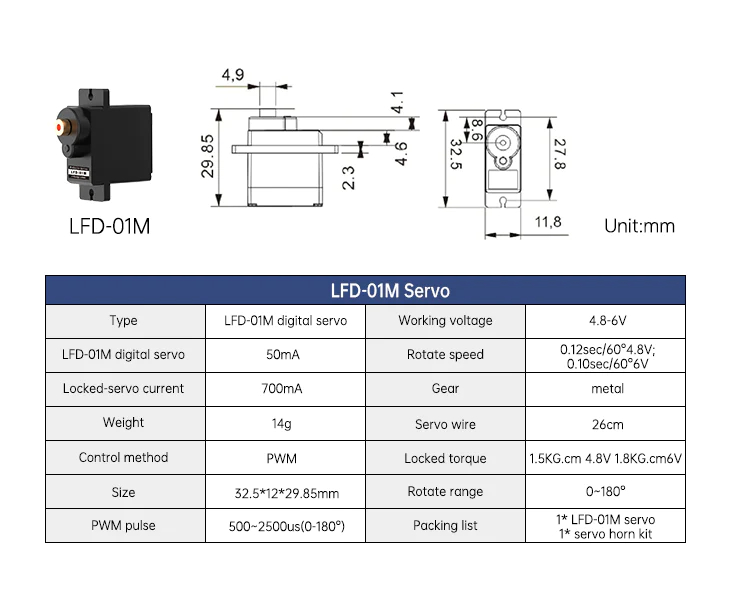

- Servo: LX-824HV bus serve/ LFD-01M avoid blocking serve

Packaging Details:
- Package size: 560*360*310mm (22x14.17x12.2 inches)
- G.W.: 9kg

Package Included:
- 1 x TonyPi Finished
- 2 x Hands (with servos)
- 2 x Cables for hands
- 1 x Speech synthesis module
- 1 x Speech recognition module
- 1 x MP3 module
- 1 x Fan module
- 1 x Luminous ultrasound module
- 1 x Dot matrix screen module
- 1 x Light effect sensor
- 1 x Touch sensor
- 1 x Wireless controller for PS2
- 1 x 12.6V 2A charger (DC5.5*2.5 male connector)
- 4 x 4PIN cables
- 1 x Carrying map
- 3 x Blocks for carrying map
- 1 x Athletics map
- 1 x Step prop
- 1 x Set of railing props
- 3 x Colored balls
- 3 x Colored blocks (3*3cm)
- 3 x Label cards (6.5*6.5cm)
- 1 x Development manual for Raspberry Pi
- 1 x Robot development manual
- 1 x Product user manual (with link to download materials)
- 1 x Card reader
- 1 x Screwdriver
- 1 x Bag of Accessories (including screws and nuts)

Going Up and Down Stair
Through independent visual judgment, it can identify the position of the steps in front of you and climb the steps up and down.


AI Vision Autonomous Hurdles
By identifying the position of the railing, the crossing of the railing can be achieved, and the movement is natural and smooth.

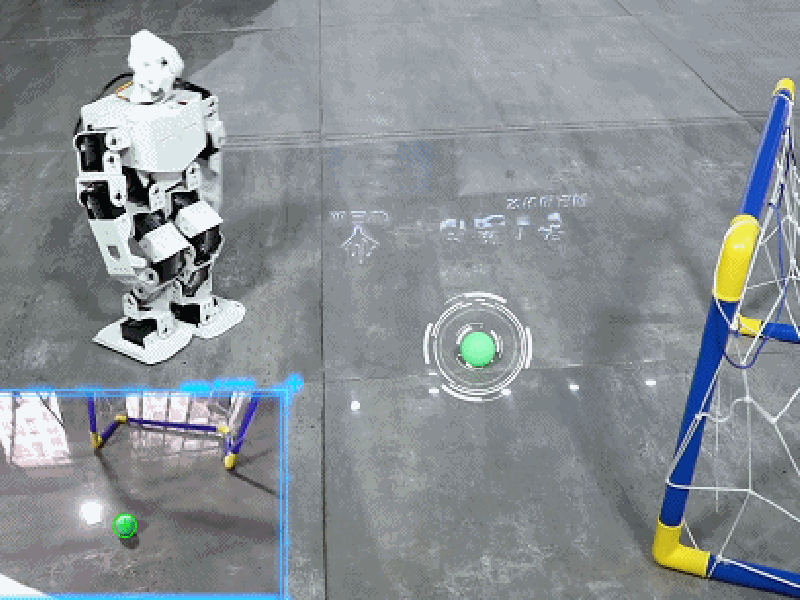

Automatic Shooting
Perform image processing to obtain the ball's position, and then use PID algorithm to track and kick it automatically.

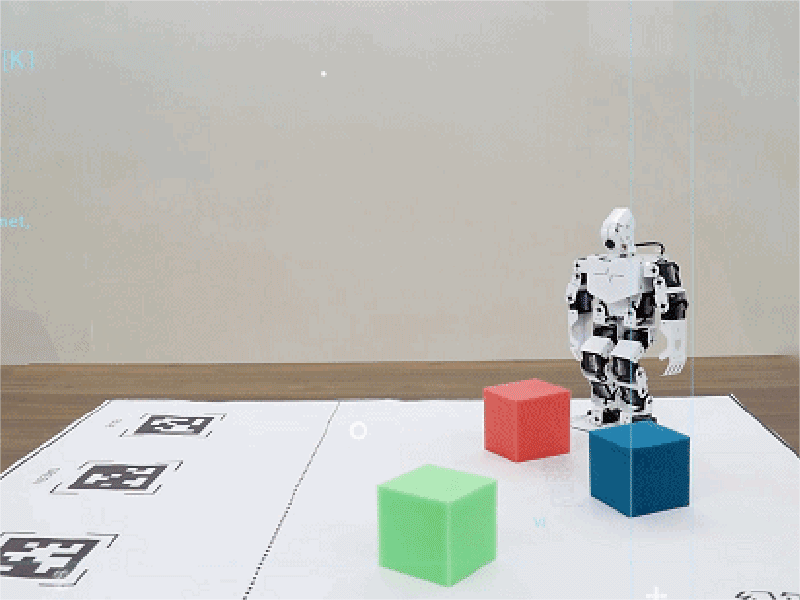

Intelligent Transport
TonyPi Pro can visually identify the distance of the item, and finally move the target item to the designated tag.
