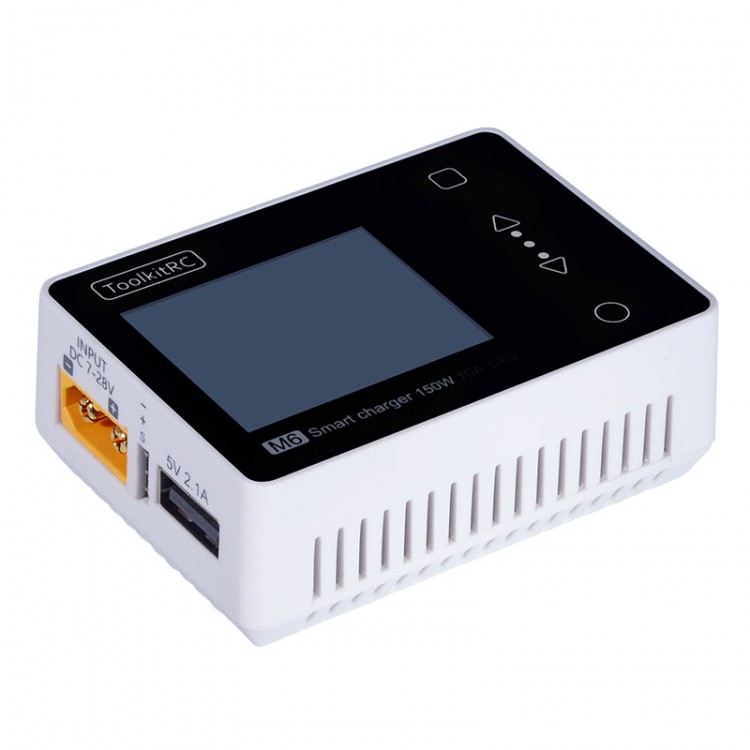

ToolkitRC M6 Battery Balance Charger 150W 10A DC Output Power Adapter for 1-6S Lipo LiHV Life Lion NiMh Pb Cell Checker

ToolkitRC M6 Battery Balance Charger 150W 10A DC Output Power Adapter for 1-6S Lipo LiHV Life Lion NiMh Pb Cell Checker

Description:
- The M6 is the worlds smallest 150w color screen charger! With a 150w and 10A Charger at its heart the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage And amperage DC output control.

Features
- Battery Charger
- Cell Checker
- Servo Tester
- PWM, PPM.SBUS Input/output & Receiver tester
- Viable AMP/volt DC Power supply (Required external DC input)

Specs
- Lithium battery cut-off voltage can be set (TVC function)
- Measure battery voltage, internal resistance, balance
- Measure PWM / PPM / xBUS signal values, Accuracy 1ms
- Output PWM / PPM / xBUS standard signal, Accuracy 1ms
- Customizable 1-28V constant voltage, 1-10A constant current
- Charge the drone battery, activate and charge.
- Multi-language optional
- USB 2.1A 5.0V Output, for Mobile devices
- Udisk firmware upgrade (Slave device)

Charger
- Input voltage: 7.0-28V MAX 12A
- Type of battery: Lipo LiHV LiFe Lion 1-6S
                              NiMh 1-16S Pb 1-10S
- Charge power: 150W MAX 10A
- Discharge power: 150W MAX 10A Recycle mode
                              8W 2A Normal mode
- USB: 2.1A 5.0V or Upgrade
- Dimensions: 68*49*26 mm
- Weight: 80g
- LCD: 1.8inch TFT RGB, 160*128 Pixel

Measurement
- PWM: 880-2200us 20-400Hz
- PPM: 880-2200us*8CH 20-50Hz
- SBUS: 880-2200us*16CH 20-100Hz
- Voltage: 1.0-5.0V 1-6S
- IR: 10-99mR 1-6S

Output
- PWM: 500-2500us 20-1000Hz
- PPM: 880-2200us*8CH 50Hz
- SBUS: 880-2200us*16CH 74Hz
- Power: 1-10A 1-28V Mode: CC+CV

Packing Informations:
- Weight: 140g
- Size: 80*80*35mm

Package list:
- 1 x M6 Battery Balance Charger
- 1 x USB cable
