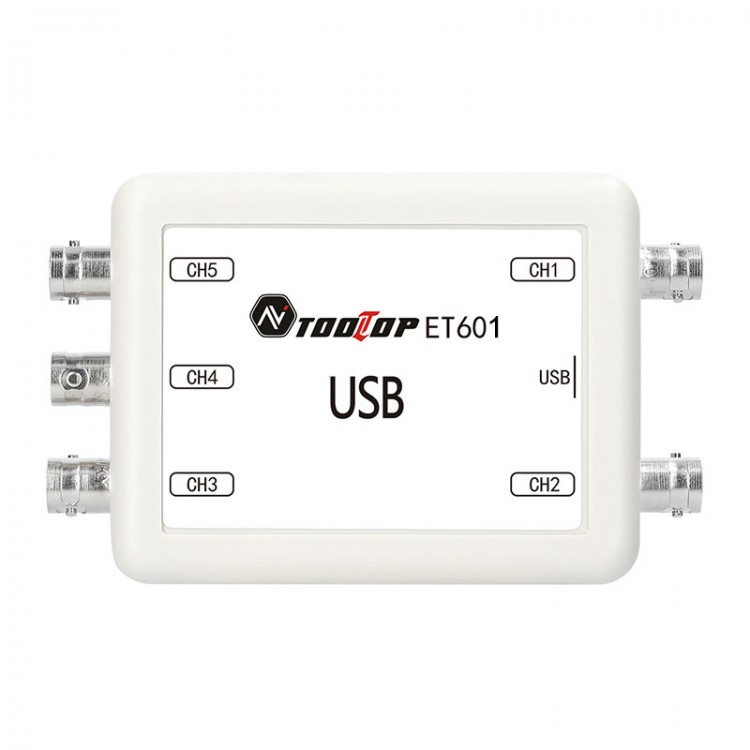

TOOLTOP ET601 USB 5CH 150KHz Automotive Oscilloscope Virtual Oscilloscope Supports Data Storage

TOOLTOP ET601 USB 5CH 150KHz Automotive Oscilloscope Virtual Oscilloscope Supports Data Storage

Features:

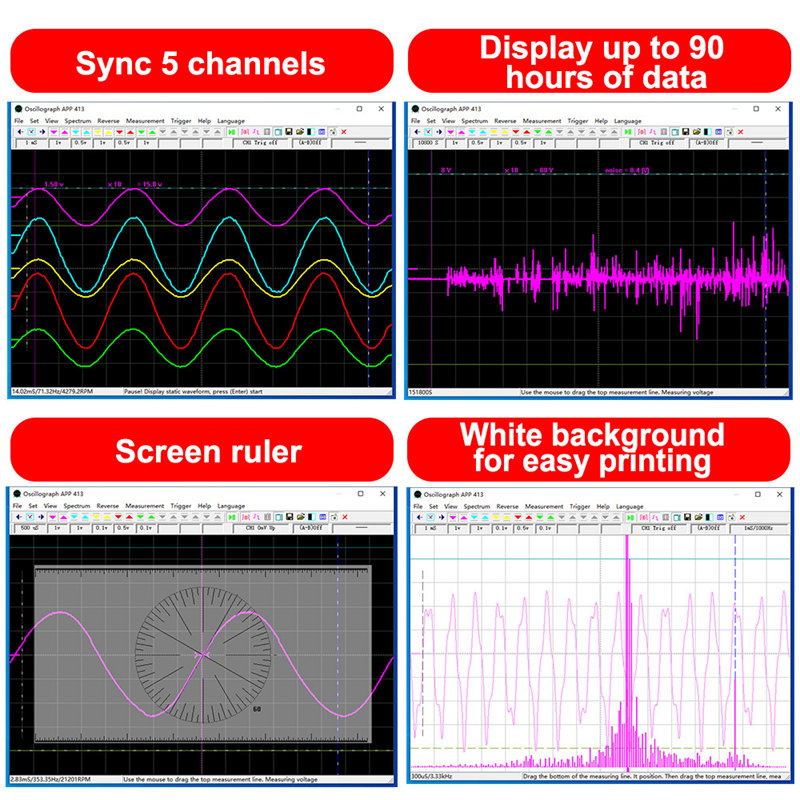

- Versatile 5-Channel Input: This portable virtual oscilloscope offers a unique and flexible solution for collecting and analyzing signals from multiple sources simultaneously. With synchronized display across five channels, you can easily compare different signals side by side, enabling comprehensive analysis for various applications such as electronic circuit testing and sensor data collection.

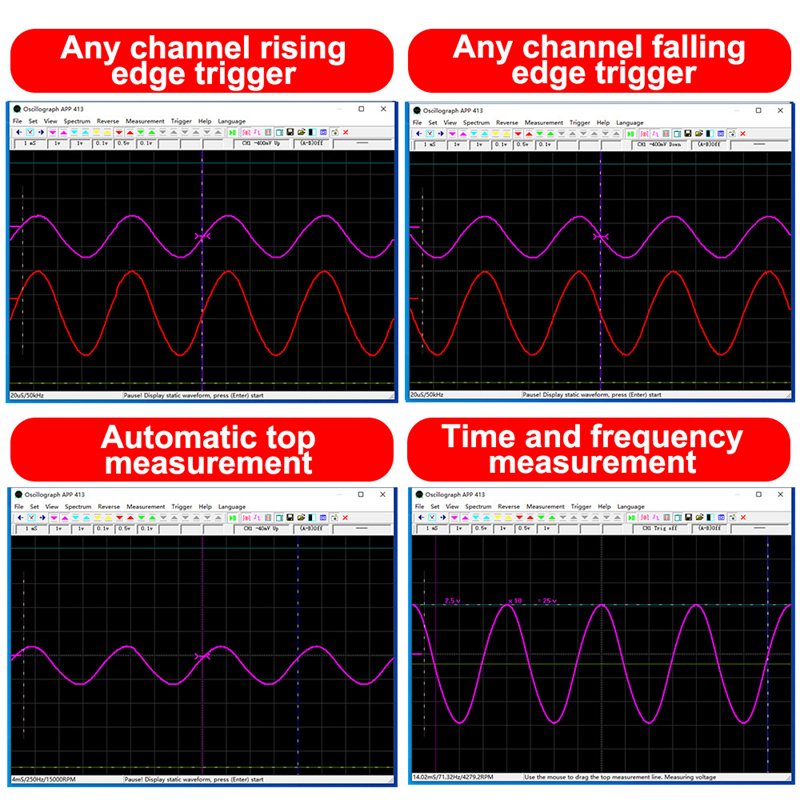

- Advanced Triggering Options: Take full control of your measurements with advanced triggering options. Each channel of handheld virtual oscilloscope can be set as a signal source for triggering, allowing you to precisely collect specific events or patterns in your signals. You can adjust the trigger level to specify the voltage threshold at which triggering should occur. Additionally, you have the choice between rising or falling edge triggers, ensuring that you don't miss any important data points.
- Data Storage and Transfer: With seamless data storage and transfer capabilities, you can easily save collected data to your PC for further analysis. The virtual storage oscilloscope allows for automatic data transfer upon startup, making it convenient and efficient. This feature also enables you to back up your data, ensuring that you have access to your backup waveforms for future reference and comparison.

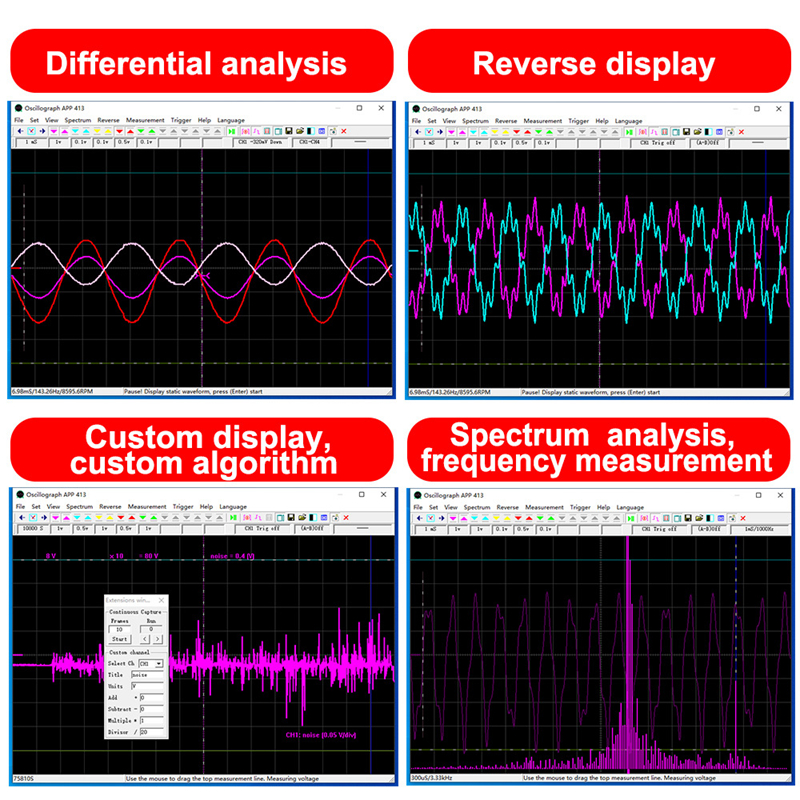

- Differential Signal Display: Gain deeper insights into your signals by visualizing the differential signal between any two channels. This feature of USB virtual oscilloscope allows you to measure the voltage difference between two signals and observe how they interact with each other. By displaying the relative changes and subtle variations, you can identify potential issues, troubleshoot problems, and make precise measurements with enhanced accuracy.
- Extended Waveform Viewing: Experience extended waveform viewing capabilities with waveform expansion and compression features. This automotive diagnostic oscilloscope allows you to lock onto a specific signal of interest and extend or contract the waveform as needed for detailed analysis. With an extensive viewing time of up to 90 hours, this device is suitable for long-term monitoring and archiving of electrical equipment performance. It's also ideal for collecting data on parameters like temperature, humidity and light intensity, providing a comprehensive solution for a wide range of measurement applications.

Specifications:
- Interface type: Micro USB 2.0
- Signal input interface type: BNC interface, connected to a universal oscilloscope probe cable
- Maximum sampling rate: 150kHz
- Operating voltage: 5V Micro USB interface power supply
- Current Consumption: < 170mA
- Measurable frequency range: 0Hz-50kHz
- Amplitude adjustment range: 10 mV/DIV to 1 V/DIV
- Input impedance: 1MΩ (< 0.5V/DIV); 330kΩ (≥ 0.5V/DIV)
- Maximum measuring voltage: ±8V, ±80V at probe X10
- Amplitude error: ±2.5%
- Time domain range: 100uS/DIV-10800S/DIV
- Data recording and storage depth: 8388608*5
- Maximum recording and saving data time: 93 hours
- Product size: About 115 x 70 x 29mm/4.53 x 2.76 x 1.14inch
- Material: Plastic

Package Included:
- 1 x ET601 Virtual Oscilloscope
- 5 x BNC Connectors
- 1 x USB Cable

Packaging Details:
- G.W.: 1kg/2.2lb

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
