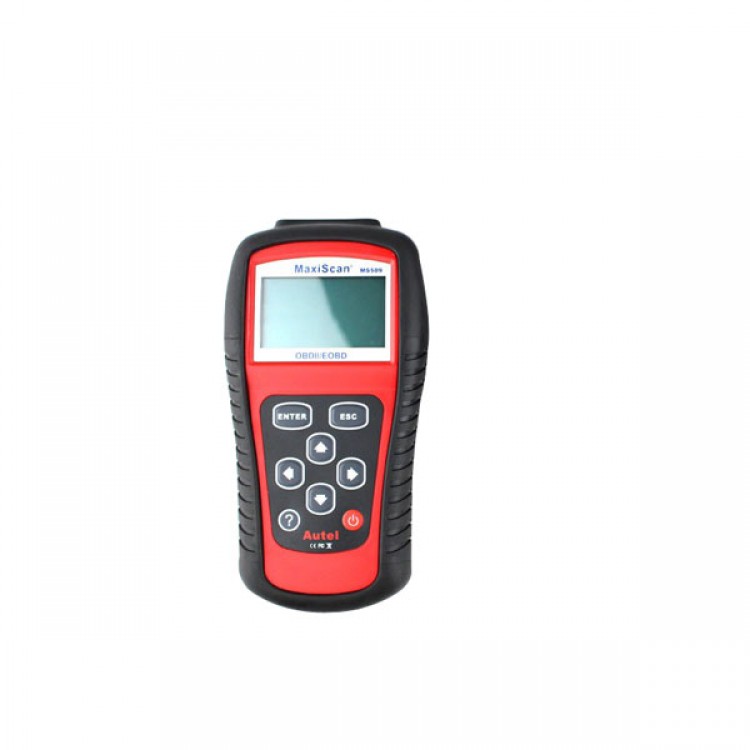

MaxiScan MS509
- The MS509 OBDII/EOBD Code Reader supports all nine OBDII test modes on all OBDII EOBD compliant vehicles to enable technicians and home users to accurately diagnose even the toughest problems. Sophisticated yet easy-to-use, this hand-held scanning tool enables fast and easy access to engine based EOBD Fault codes, The CAN enabled tool gives clear, concise DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, - Turns off MIL light, Stores freeze frame data for later evaluation and will also display monitor and I/M readiness status.

Product Features & Functions:
- Works on Most OBDII compliant US, European and Asian cars
- Easily determines the cause of the Check Engine Light ( MIL)
- Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
- Turns off Check Engine Light (MIL), clears codes and resets monitors
- Displays DTC definitions on unit screen
- Views freeze frame data
- Displays monitor and I/M readiness status (emissions)
- Identifies pending codes
- Reads live PCM datastream
- Displays live O2 sensor test data
- Graphs data C (1996 and newer)
- Reads, stores & playbacks live sensor data
- Memory/battery backup for off-vehicle data review and analysis
- Multilingual menu:--- English, Spanish, French,German
- Performs modules present test
- Retrieves vehicle information (VIN, CIN and CVN)
- Supports CAN (Controller Area Network) and all other current
- OBD-II protocols
- Built-in OBD-II DTC lookup library
- Large easy-to-read backlit LCD screen
- Software upgradeable via email
- Prints data via PC

Works with the following:
- OBDII/EOBD coverage(US, Asian & European) Reads & clears generic and some maunfactures trouble codes.

Supported Protocols:
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 14230-4 KWP 2000 (fast init, 10.4 kbaud)
- ISO 14230-4 KWP 2000 (5 baud init, 10.4 kbaud)
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- SAE J1850 PWM (41.6 kbaud)

Included in this package
- 1* Ms509 Code Reader
- 1* Instruction Manual book
- 1* CD with DTC definitions, User's Manual
- 1* Computer USB connecting lead
- 1* OBD2 lead
- 1* Handy carry case
