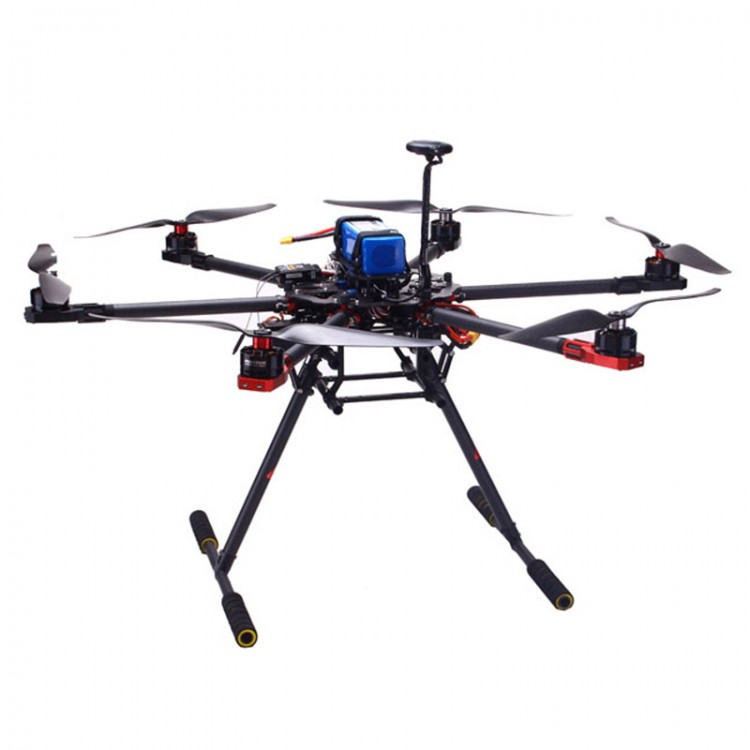

TopSkyRC T750 Hexacopter Carbon Fiber Frame Kit w/ Motor & ESC & Prop & V2 & Case & Retractable Landing Gear (ARF)

TopSkyRC T750 Hexacopter Carbon Fiber Frame Kit w/ Motor & ESC & Prop & V2 & Case & Retractable Landing Gear (ARF)

Package Weight > 10kg , pls choose DHL or EMS



Description:
- TopSkyRC T750 is a quasi professional aerial photography hexacopter aircraft. Fuselage adopts folding design, easy to carry, quick and flexible to operate, safe and stable to use,ect. It has been assembled and adjusted well in factory, customers only need some simple installation and can enjoy it. Retractable fuselage and electric retractable and dismountable landing skid design can realize flexible collocation of the whole aircraft system and satisfy various of demands of aerial photography.

Features
- GPS Control System(YS-S4):Auto hovering auto back landing.
- Flight Time:27min.
- Operation Safety:Fail Safe.
- Equipped with Brushless DSLR Gimbal:Carry Sony NEX series camera.
- Easy to Carry:Manual retractable fuselage and manual/electric retractable landing

Applications
- Cinematography aerial photography, commercial aerial photography, public fire, environmental survey, geological resource survey ,etc.

Specifications:
- Product Name: TopSkyRC T750 Hexacopter
- Diagonal Motor Distance: 750mm
- Landing Skid Weight: 566G
- Center Board Diameter: 350mm
- Flight Control: YS-S4 Standard
- Max Spread Size: 1105mmX1105mmX350mm
- Motor: C3510 KV580
- Fuselage Weight(MG,ESC,PTC,AFCS)
- 2010G Propeller
- 1455 carbon fiberclockwise/anti-clock
- Landing Skids Size (spread): 348mm*400mm*350mm
- ESC: 3~6S 25A
- refreshrate30~450Hz driverfrequency8KHz/24KHz
- Aircraft Weight: 2.57kg Wind
- Resistance: ＜ 5.4m/s(6.5kg takeoff weight)
- Max Take Off Weight ≤6.85kg Flight Height
- 0~500m(heightfrom taking off point）
- Power Battery LiPo 6S 10000mAH ~20000mAH 10~25C
- Flight Speed: 3.6~10.2m/s(GPSmode)
- No Wind Hovering Time(no payload)/ : 27min(6S 15000mAH LiPo,takeoff weight 5.05kg)
- Working Temperature 5~40℃
- Standard Configuration Hovering Time: 19min(65 15000mAH LiPo,3-axis brushless gimbal, single channel FPV)
- Flight Distance: 600~1200m
- Max Climbing Speed ≈ 2.6/s (5.41kg take off weight,battery with full power)
- Descending Speed ≈1.8m/s(5.41kg take off weight ,battery with full power)
- Image Transmission Station(basic)
- Working Voltage: 12V0.78A,(3S 2200mA Li-pobattery powered)
- Working Channel: 8channel
- Working Frequency: 5.8GHz
- Consumed Power: 2000MW
- Image Channel: Single Channel video
- Wireless transmission(gimbaloperator view)
- Transmission Distance: 300~1800m

TopSkyRC T750 RTF included:
- 1 x TopSkyRC T750 Carbon fiber frame
- 6 x C3510 KV580 Motor
- 6 x 1455 inch carbon Propeller
- 6 x 3-6S 25A ESC
- 1 x ZeroUAV YS-S4 V2 controller
- 1 x Retractable landing gear
- 1 x Aluminum case
