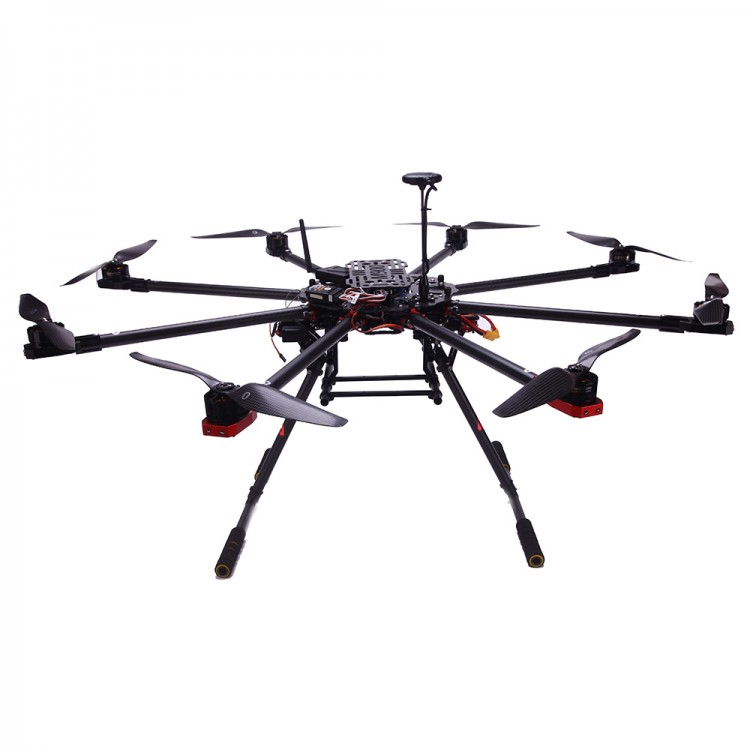

TopSkyRC T900 Octacopter Carbon fiber Frame Kit w/ Motor & ESC & Prop & Case & Retractable Landing Gear

TopSkyRC T900 Octacopter Carbon fiber Frame Kit w/ Motor & ESC & Prop & Case & Retractable Landing Gear

Package Weight > 10kg , pls choose DHL or EMS



Description:
- TopSkyRC T900 is a professional aerial photography octocopter aircraft for application.Fuselage adopts folding design, easy to carry, quick and flexible to operate, safe and stable to use, ect. It has been assembled and adjusted well in factory, customers only
need some simple installation and can enjoy it. Retractable fuselage and electric retractable and dismountable landing skid design can realize flexible collocation of the whole aircraft system and satisfy various of demands of application-level aerial photography.

Features
- GPS Control System(YS-X4):Auto hovering auto navigation auto back landing
- Flight Time:31min, Fail safe.
- Operation Safety:Fail Safe.
- Equipped with Brushless DSLR Gimbal:Carry Sony NEX series or Panasonic GH3 GH4 camera.
- Easy to Carry: Manual retractable fuselage and manual/electric retractable landing skid.

Applications
- Cinematography aerial photography, commercial aerial photography, public fire, environmental survey, geological resource survey ,etc.

Specifications
- Product Name: TopSkyRC T900 Octocopter
- Diagonal Motor Distance: 920mm
- Landing Skids Weight: 630G
- Center Board Diameter: 230mm
- Flight Control: YS-X4 V2 Standard
- Max Spread Size: 1260mm*1260mm*535mm
- Motor C3510 KV580
- Fuselage Weight (MG,ESC,PTC,AFCS): 2720G
- Propeller: 1355 3K carbon fiber clockwise/anticlock
- Landing Skids Size (spread) 3348mm(W)*400MM(D)*350 mm(H)
- ESC 3~6S 25A refreshrate30~450Hz driver frequency 8KHz/24KHz
- Aircraft Weight: 3.35kg
- Wind Resistance＜5.4m/s(6.5kg take off weight)
- Max Take Off Weight ≤7.7kg
- Flight Height ＜300m(height from taking off point）
- Power Battery/ LiPo 6S 10000mAH ~20000mAH 10~25C
- Flight Speed 3.6~10.2m/s （GPS mode)
- No Wind Hovering Time(no payload): 31min(6S 15000mAH LiPo,takeoff weight 5.05kg)
- Working Temperature: 5~40℃
- Standard Configuration Hovering Time: 23min(65 15000mAH
- LiPo,3-axis brushless gimbal, single channel FPV)
- Flight Distance: 600~1200m
- Max Climbing Speed: ≈ 2.6/s (6.5kg takeoff weight, battery with full power)
- Descending Speed ≈1.4m/s(6.5kg take off weight ,battery with full power)

In-Built DTU(2.4 WIFI edition) (2.4G wifi)
- Transmission Distance: ≈ 200m(relates to flight height and environment
- Working Voltage＜ 25V 0.18A(6S Li-po Battery powered)

TopSkyRC T900 RTF included:
- 1 x TopSkyRC T900 carbon fiber frame
- 8 x C3510 KV580 Brushless motor
- 8 x 4-6S 30A Brushless ESC
- 8 x 1355 Carbon fiber propeller
- 1 x Retractable landing gear

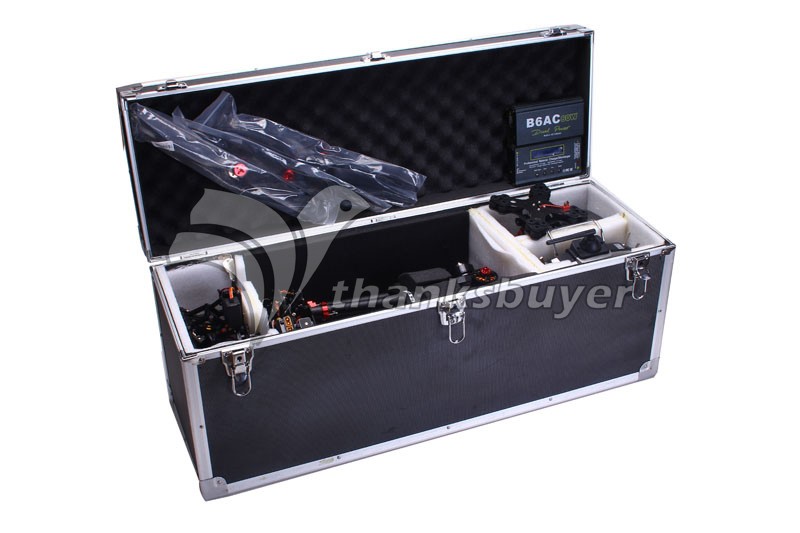

- 1 x Aluminum case
