Torch Height Controller THC HP105 for Arc Voltage CNC Plasma Cutting Machine

Torch Height Controller THC HP105 for Arc Voltage CNC Plasma Cutting Machine

User manual: Click here

Description:

- HP105 plasma arc voltage height controller is equipped with constant current plasma . During cutting course, the current always equals the given current. And the cutting arc voltage will be changed with the fixed speed being the height of torch changing.

- When the distance gets farther，the arc voltage increases; On opposite, the arc voltage will decrease. HP105 plasma arc voltage height controller will inspect the voltage change, then control the distance between cutting torch and material via the lift motor. So that the arc voltage is fixed, the same is the height of cutting torch.Generally, the instruction will list all the cutting parameters for some type of plasma .

- The user can refer to these parameters.Adjust the voltage in arc voltage height controller to match the selected current. The torch height will keep constant under regular speed.In fact,the user should set the arc voltage according to the height of the cutting torch.In the status of automation ,the arc voltage more high,then the height of the cutting torch more high.


Specification:
Working voltage: DC24±10%，50Hz/60Hz，Please prepare a
isolated power, do not shared with others such as electronic
valve . Especial Pay more attention the DC 24V
l Lift motor: DC24V DC motor
l Drive mode: PWM
l Output current：1A-4A.
l Working temperature: Height controller -10∽60℃
l IHS style: Switch inspecting IHS (suitable for all plasma
both above-water and under-water cutting)， Plasma Shield
Protector IHS (suitable for above-water cutting’s touch
leading arc voltage plasma)
l Running transfer: Alternative Arc transfer and pierce transfer
l Divided voltage ratio:100:1
l Accuracy: ±1V∽±5V，adjustable
l Outer Dimension: Length X Width X Height:
225mmX50mmX80mm
Weight： 0.8kg
Protection class: IP64, to prevent dust from entering.
Installation connector: 2-pin, 4-pin, 5-pin, DB-9 core
Installation position: Keep away from heat, air convection good place.

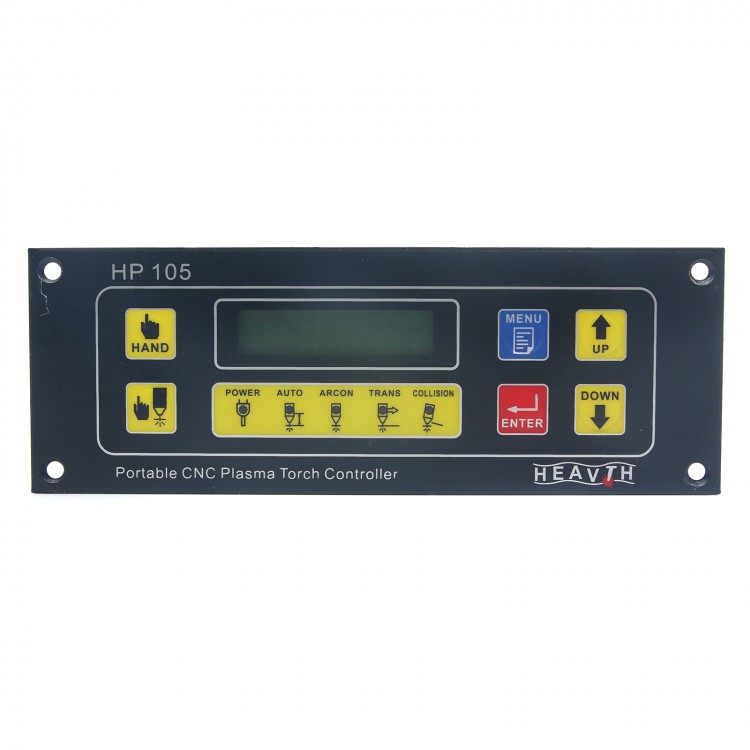

Function Description:

LCD: display the working status and parameters.

Manual: Auto / Manual mode selection increase, alternating work.

Arc test: standby press, arcing into the test mode.When arcing test, press to return to standby mode.

Menu: In standby mode press to enter the parameter setting mode.

When the parameter setting Press to return to standby.

Confirmation: parameter setting mode, confirm that the setparameters.

Rise / fall: In standby mode, manual lifting torch.When parameter setting, subtraction parameter values.
