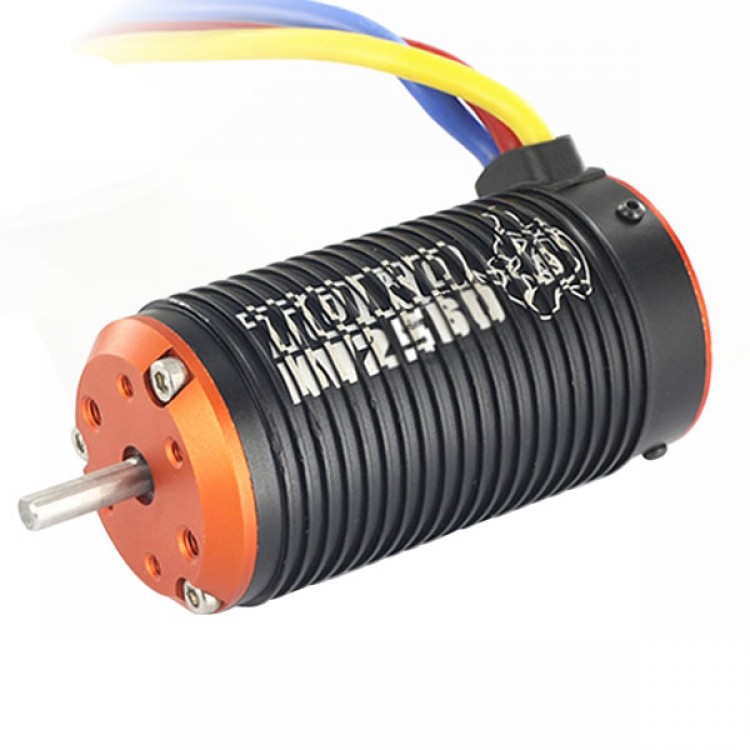

Toro X 2560KV/6T/6P Brushless Motor for 1/8 Car
Specfications:
| Item Name | Toro X 2560KV/6T/6P BL Motor for 1/8 Car | ||
| Sensored /Sensorless | sensorless | No loading @7.2V Current | 4.5A |
| Turns | 6T | Max current | 120A |
| KV value | 2560KV | Resistance (Ω) | 0.0058Ω |
| Poles | 6P | Battery range | <21v |
| Diameter | 41.8mm | Operation Temperature | 80° |
| Motor length | 68.5mm | Max Temperature | 130° |
| Extend shaft diameter | 5mm | Suitable car scale | 1/8 buggy |
| Length of extend shaft | 16.5±0.5mm | Suitable ESC | 120A |
| Weight | 330g | Thickness of lamination | 0.2X40mm |
