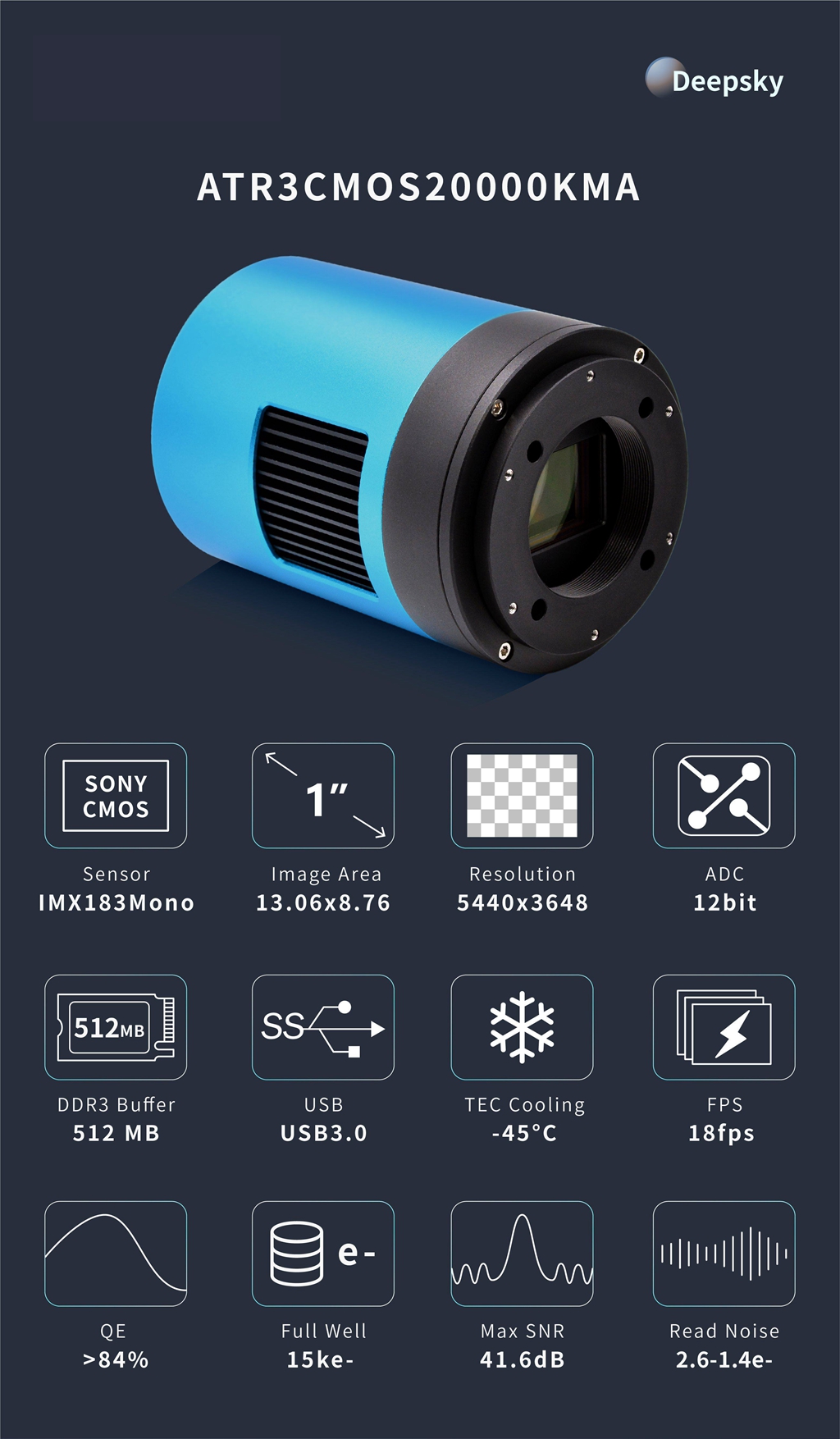

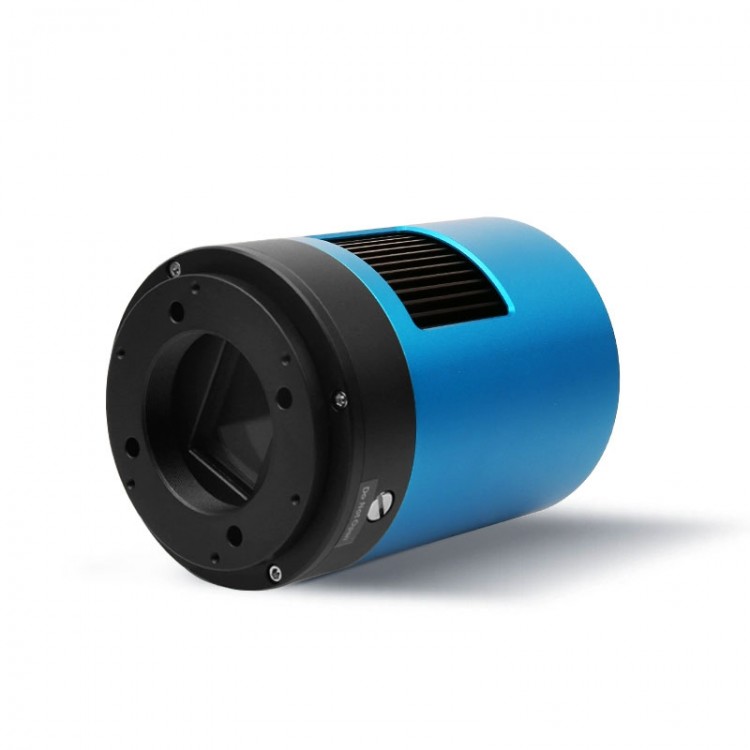

ToupTek ATR3CMOS20000KMA Astronomical IMX183 Mono Camera 512MB DDR3 Buffer with 1-inch Optical Format
Description:
- The ATR3CMOS20000KMA camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor and ultra-low readout noise. It can be also used for planetary photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience.
Features:
- IMX 183 Mono CMOS Sensor
- Resolution: 5440 x 3648
- 2.4 um Square Pixels
- 1-inch Optical Format
- 12-bit ADC
- 512Mbyte Memory
- Precise Temperature Regulation
- G Sensitivity: 462mv with 1/30s
- Low Noise: 1.4 to 2.6el Support High Frame Rate Mode (8.6 FPS at all Pixel Readout 12 bit/17 FPS at all Pixel Readout 8 bit)
- SNR Max: 41.6 dB
- Dynamic Range: 75 dB
- -35°C below ambient under short exposure (< 1s)/-45°C under long exposure time (> 1s)
Specification:

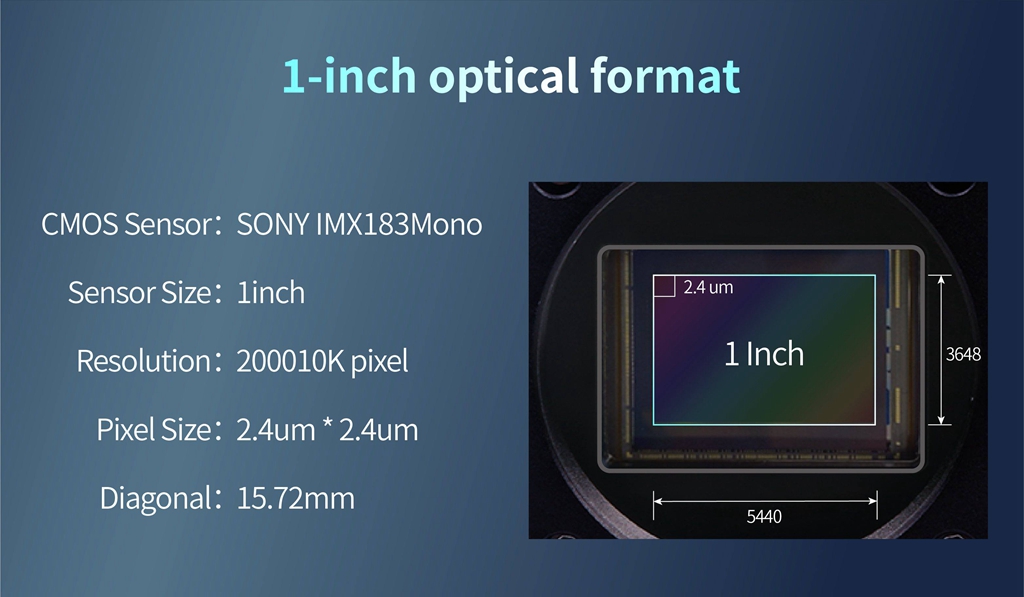

- Sensor: for Sony IMX183 back illuminated sensor
- Diagonal: 15.72 mm
- Image Resolution: 20 mega pixels (5440 x 3648)
- Pixel Size: 2.4µm x 2.4µm
- Image Area: 13.06mm x 8.76mm
- Shutter Type: Rolling shutter
- Exposure Time: 0.1ms - 3600s
- Gain: 1x - 50x
- SNR: 41.6dB
- Dynamic Range: 75dB
- Read Noise: 2.6 - 1.4 e-
- Read Noise: 1.42 - 0.97 e-
- QE Peak: > 80%
- Full Well: 15ke-
- ADC: 12bit
- DDR3 Buffer: 512MB (4Gb)
- Connection Port: USB3.0/USB2.0
- Camera Adaptor: M42 x 0.75mm
- Protect Windows: IR-cut filter/AR-window

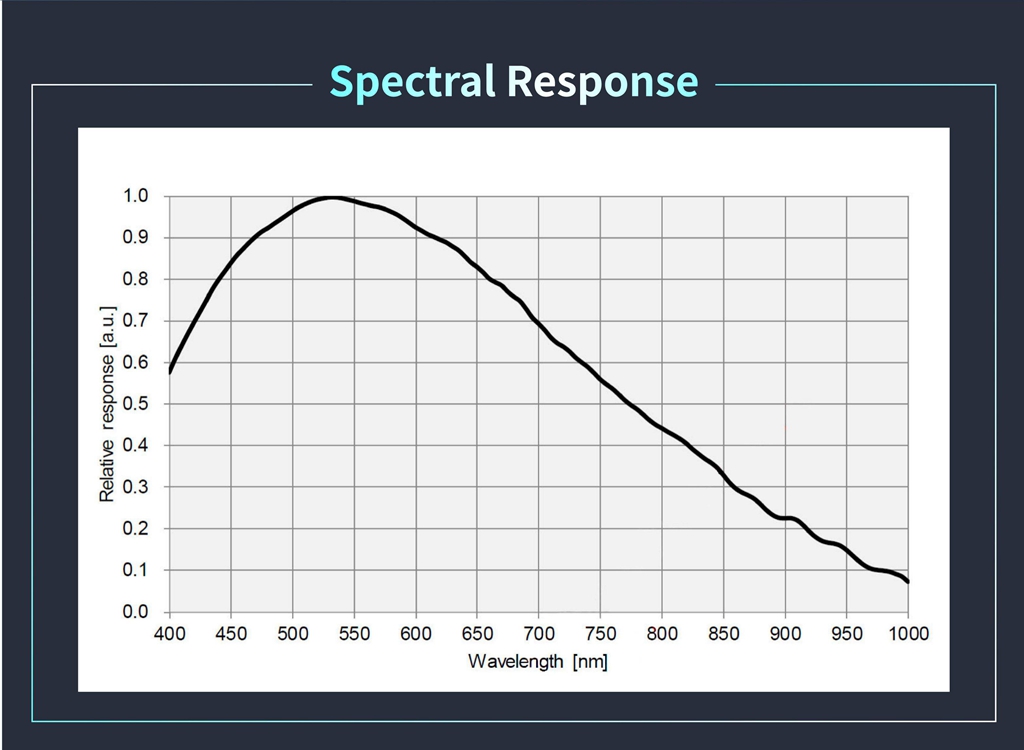

- Spectral Range: 380-690nm (with IR-cut filter)
- Control SDK: for Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, for C#/VB.NET, for Python, for Java, for DirectShow, for Twain, etc.)
- Recording System: Still picture and movie
- Camera Dimensions: (diameter) 80mm x (height) 103mm
- Camera Weight: 0.552kg
- Back Focus Distance: 17.5mm
- Cooling: Two stage TEC
- Effective Cooling Temp: -35°C below ambient under short exposure / -45°C under long exposure (> 1s)
- Supported OS:
for Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit)
for OSx (Mac OS X)
for Linux
Max FPS at Resolution (USB 3.0):
- 12 bit: 8.6 FPS at 5440 x 3648; 20.2 FPS at 4096 x 3648; 30.8 FPS at 2736 x 1824; 64 FPS at 1824 x 1216
- 8 bit: 17 FPS at 5440 x 3648; 41.1 FPS at 4096 x 3648; 51.6 FPS at 2736 x 1824; 64 FPS at 1824 x 1216
Max FPS at Resolution (USB 2.0):
- 12 bit: 0.9 FPS at 5440 x 3648; 2 FPS at 4096 x 3648; 3.2 FPS at 2736 x 1824; 7.9 FPS at 1824 x 1216
- 8 bit: 1.7 FPS at 5440 x 3648; 4 FPS at 4096 x 3648; 6.4 FPS at 2736 x 1824; 15.9 FPS at 1824 x 1216

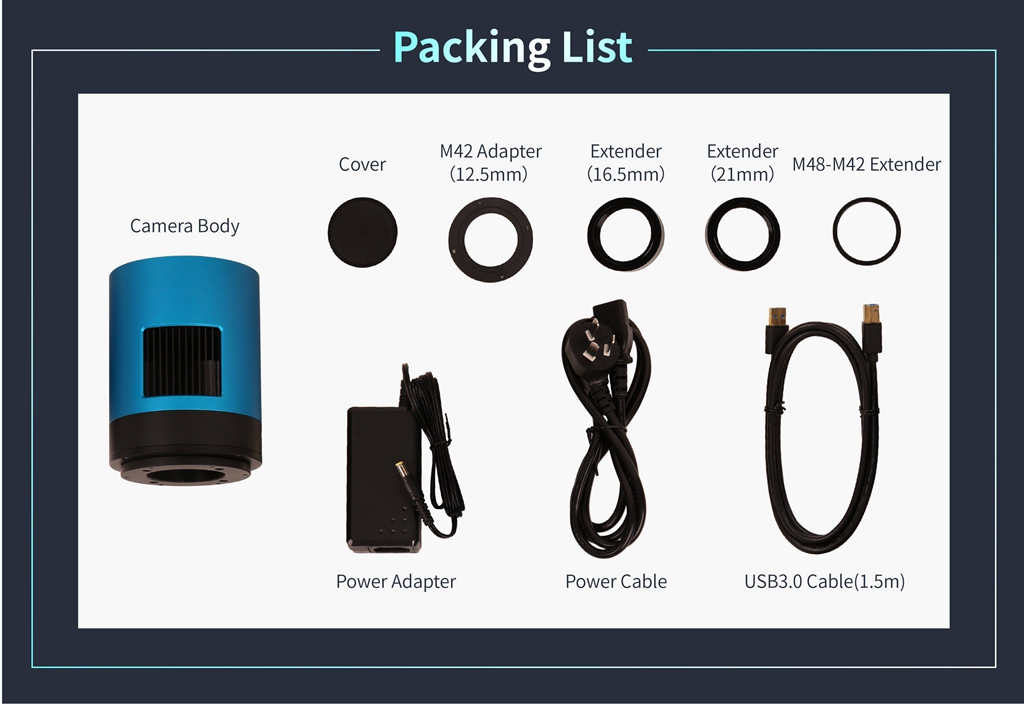

Package Included:
- 1 x Camera
- 1 x Cover
- 1 x M42 Adapter (12.5mm)
- 1 x Extender (16.5mm)
- 1 x Extender (21mm)
- 1 x M48 - M42 Extender
- 1 x Power Adapter
- 1 x Power Cable
- 1 x USB3.0 Cable (1.5m)
