ToupTek GPM462C 2.1MP Mono Planetary Camera Guide Camera with Color Sensor USB2.0 Type-C Interface

ToupTek GPM462C 2.1MP Mono Planetary Camera Guide Camera with Color Sensor USB2.0 Type-C Interface

Description:
As the first camera in the GPM series, it has stronger compatibility and is more compact and concise than GPCMOS and G3M series cameras. At the same time, in order to improve the physical strength of the type-C interface, GPM462C also reserves screw holes for USB cables with screws, making it convenient for users to upgrade and replace.

PM462C has ultra-high quantum efficiency and excellent low light sensitivity. Under lower exposure settings, higher brightness can be achieved, greatly improving the efficiency and accuracy of star guidance.

Features:
- IMX462 Color CMOS Sensor for Sony
- 1/2.8-inch optical format
- Resolution: 1920 x 1080
- 12-bit ADC
- 2.9 um square pixels
- USB2.0 type-c interface: It can be used for data transfer. The type-c port make the cable more versatile, supporting reversible plugging and has a stronger overall appearance
- ST4 interface: Built-in ST4 automatic guiding interface for easy connection to automatic guiding mount
- Dynamic range: 74.1 dB
- 18 FPS at all pixel readout 8 bit
- Built-in frame buffer
- SNR maximum: 40.8 dB
- Low noise: 0.76 to 2.4e-
- G Sensitivity: 2376mv with 1/30s
- The camera with 1.25" extender can be used with 1.25" telescopes

Technical Parameters:
- Camera model: GPM462C
- Sensor model: 2.1M/IMX462 (C)
- Sensor size: 1/2.8" (5.57mmx3.13mm)
- Pixel size: 2.9μmx2.9μm
- G light sensitivity, dynamic range & SNR: 2376mv with 1/30s; 0.15mv with 1/30s
- FPS/resolution: 17.8 at 1920x1080
- Sampling average: 1x1
- Exposure time: 0.1ms~1000s

Package Included:
- 1 x Camera main unit

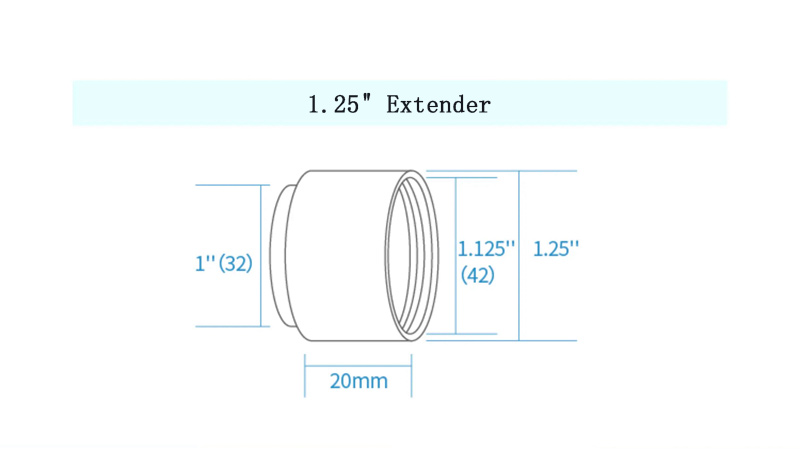

- 1 x 1.25" extender
- 1 x 1.5m USB3.0 high-speed cable (A port male to C port male)
- 1 x 2.0m ST4 auto-guiding cable
- 1 x 5mm adapter

Packaging Details:
- G.W.: 0.5kg
