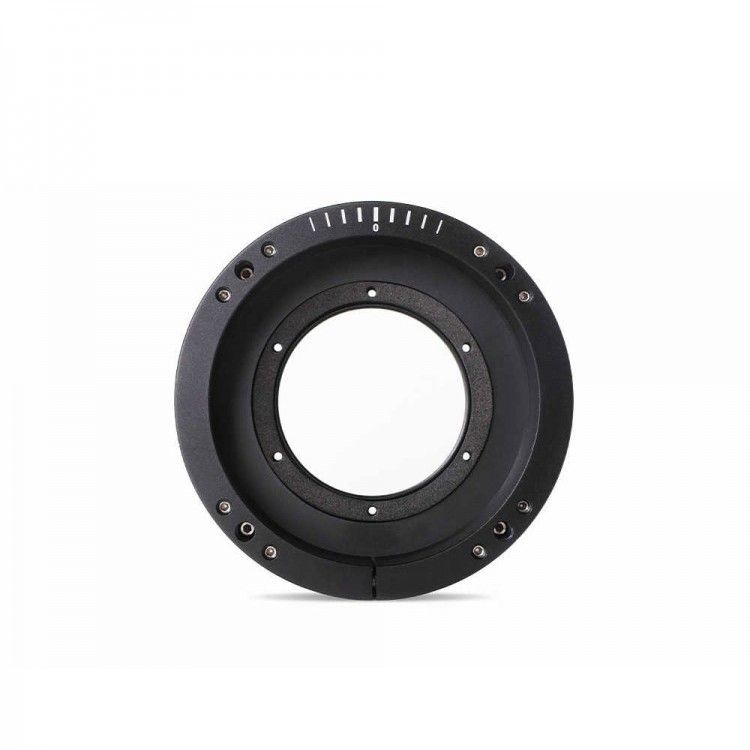

ToupTek M54 Tilter Rear Focal Plane Adjuster Astronomical Accessory for SkyEye24AC Full Frame Cooled Camera
Description:
- M54-Tilter, specially designed for the SkyEye full frame deep space cooling camera series, with more intuitive installation prompts, looser adjustment space, and more durable metal manufacturing.
Features:
- Professional adaptation: suitable for SkyEye62AM/AC and SkyEye24AC, providing a comfortable installation experience.
- Easy adjustment: equipped with a center "0" scale line and intuitive prompt line, making installation and adjustment easier.
- Accurate adjustment: the four point hole design corresponds to the CMOS four angle orientation, meeting the high-precision requirements of photography.
- Stable and reliable: high quality aluminum alloy material, precision metal processing, ensuring long-term stable use.
Specification:
- Thread: M54 x 0.75
- Thickness: 4.5mm

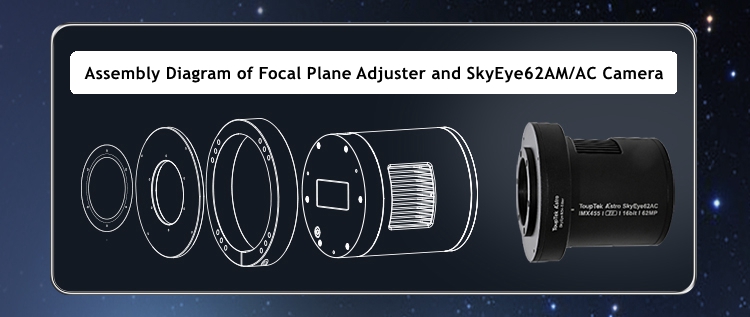

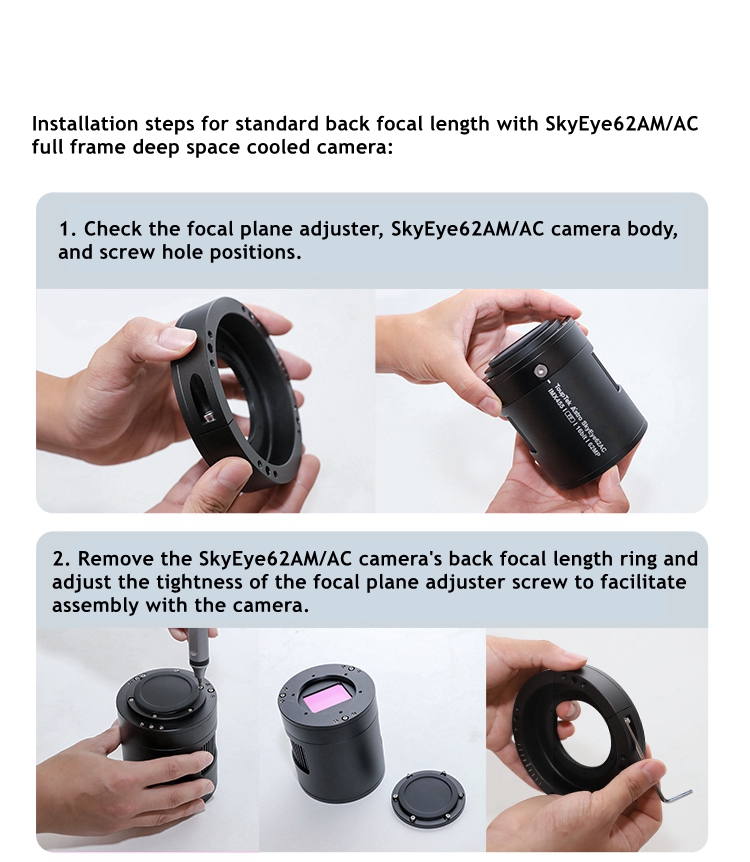

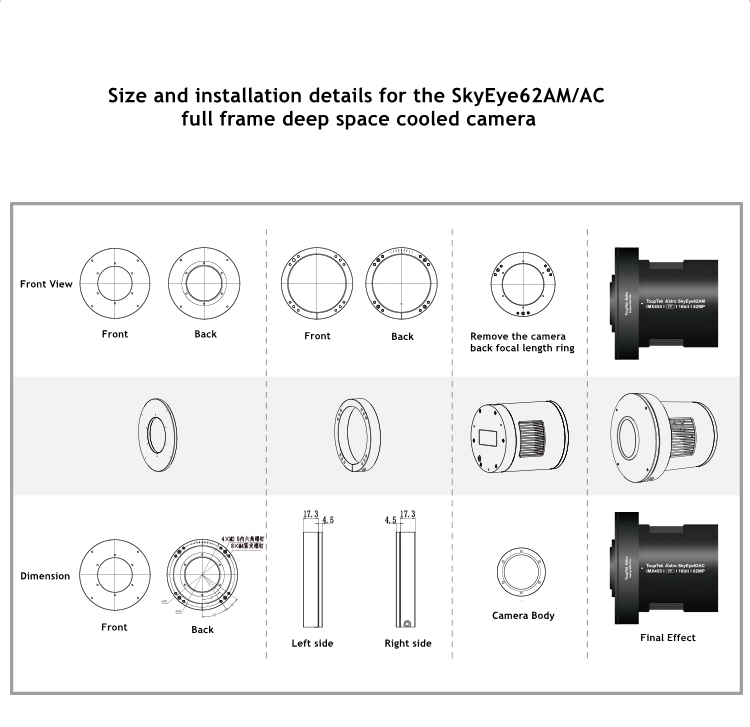

Installation steps for standard back focal length with SkyEye62AM/AC full frame deep space cooled camera:
1. Check the focal plane adjuster, SkyEye62AM/AC camera body, and screw hole positions.
2. Remove the SkyEye62AM/AC camera's back focal length ring and adjust the tightness of the focal plane adjuster screw to facilitate assembly with the camera.

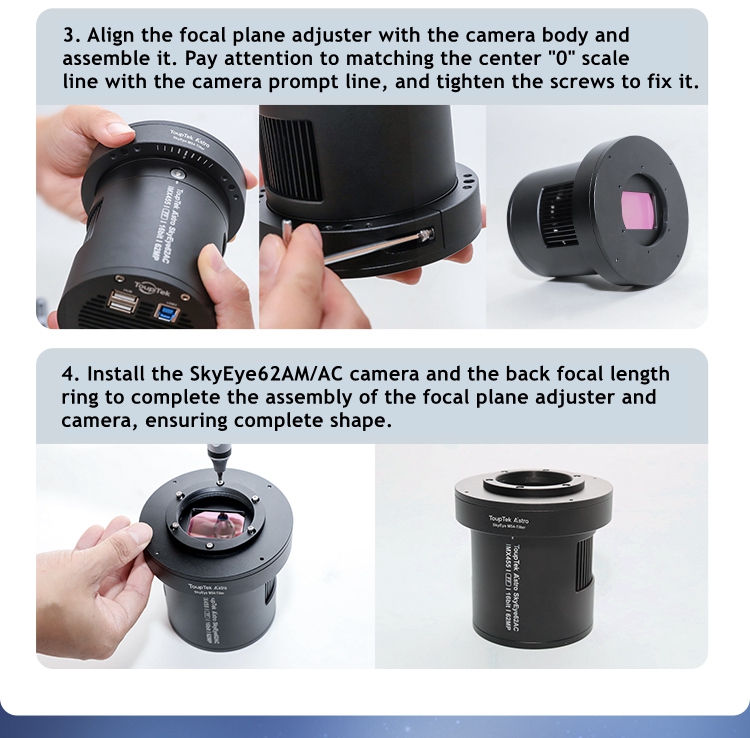

3. Align the focal plane adjuster with the camera body and assemble it. Pay attention to matching the center "0" scale line with the camera prompt line, and tighten the screws to fix it.
4. Install the SkyEye62AM/AC camera and the back focal length ring to complete the assembly of the focal plane adjuster and camera, ensuring complete shape.

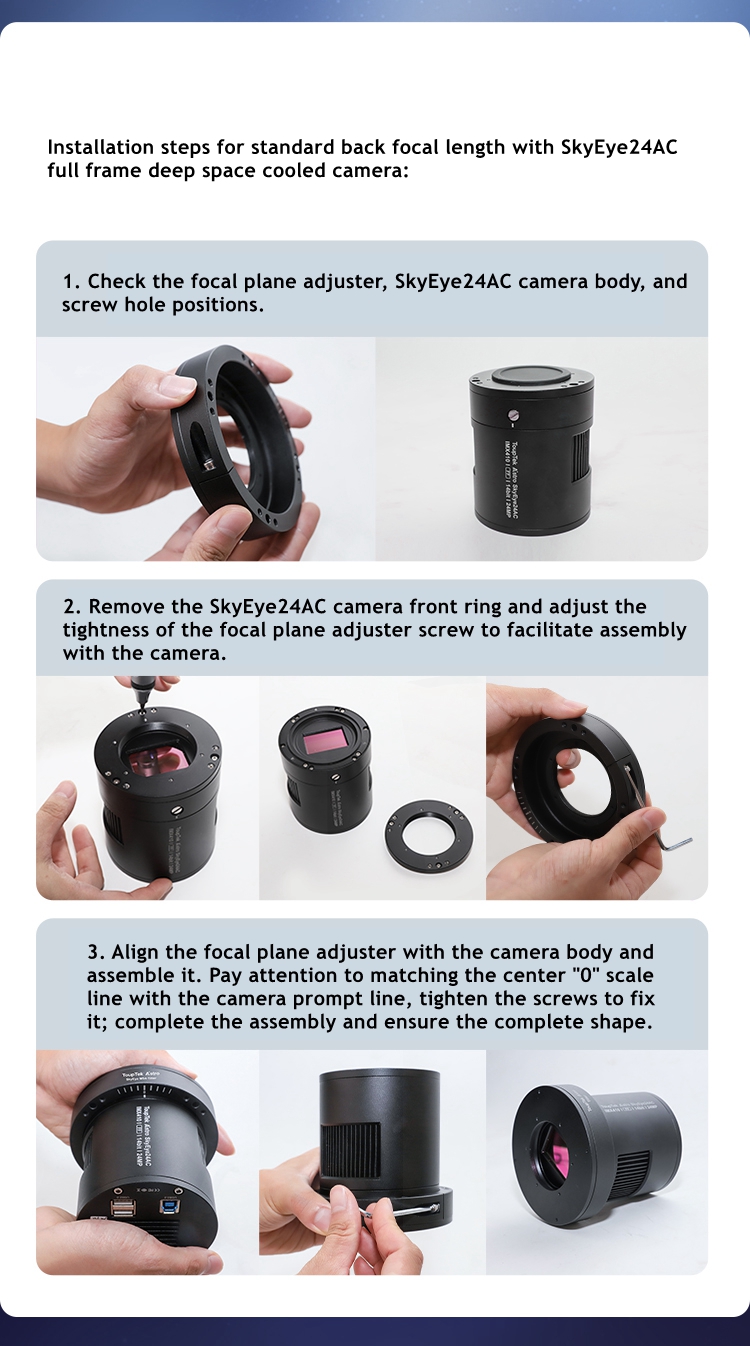

Installation steps for standard back focal length with SkyEye24AC full frame deep space cooled camera:
1. Check the focal plane adjuster, SkyEye24AC camera body, and screw hole positions.
2. Remove the SkyEye24AC camera front ring and adjust the tightness of the focal plane adjuster screw to facilitate assembly with the camera.
3. Align the focal plane adjuster with the camera body and assemble it. Pay attention to matching the center "0" scale line with the camera prompt line, tighten the screws to fix it; complete the assembly and ensure the complete shape.
Package Included:
- 1 x Focal Plane Adjuster
