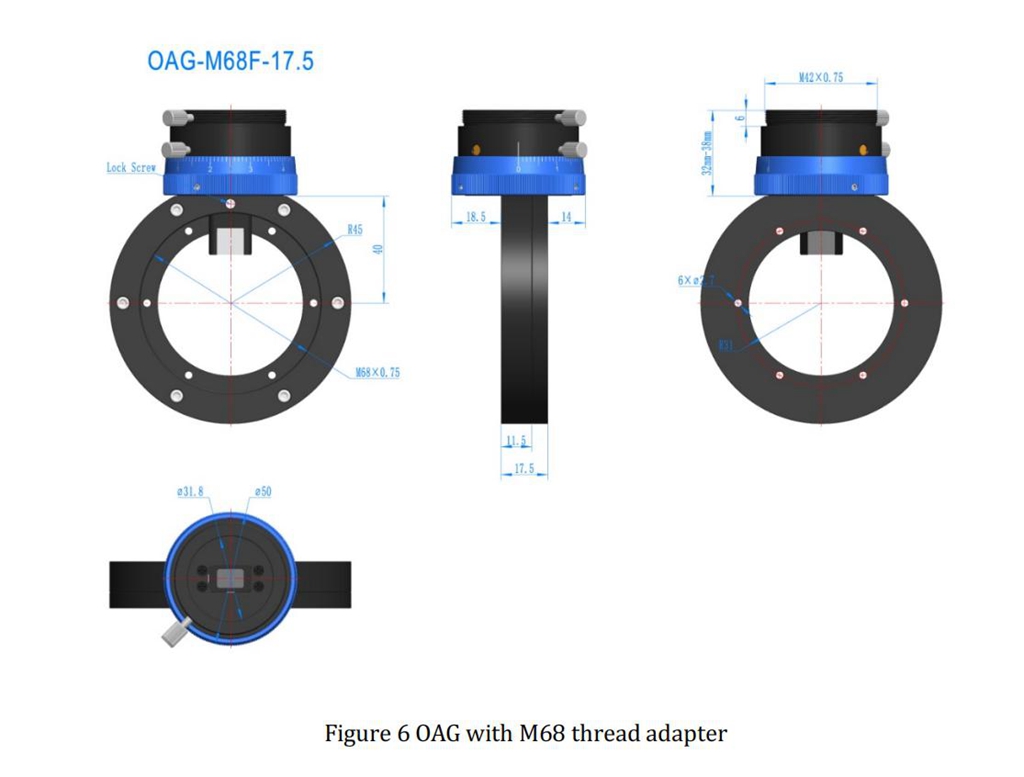

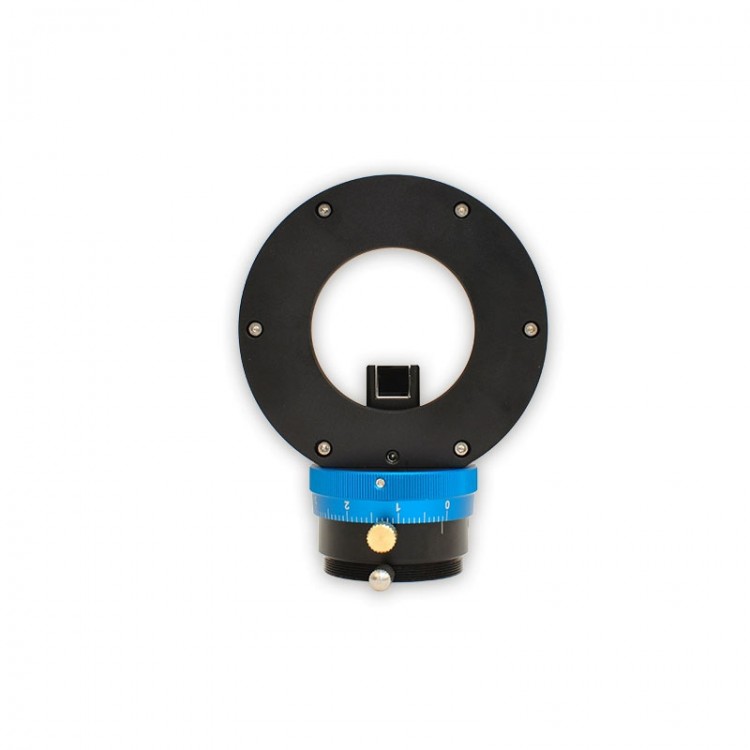

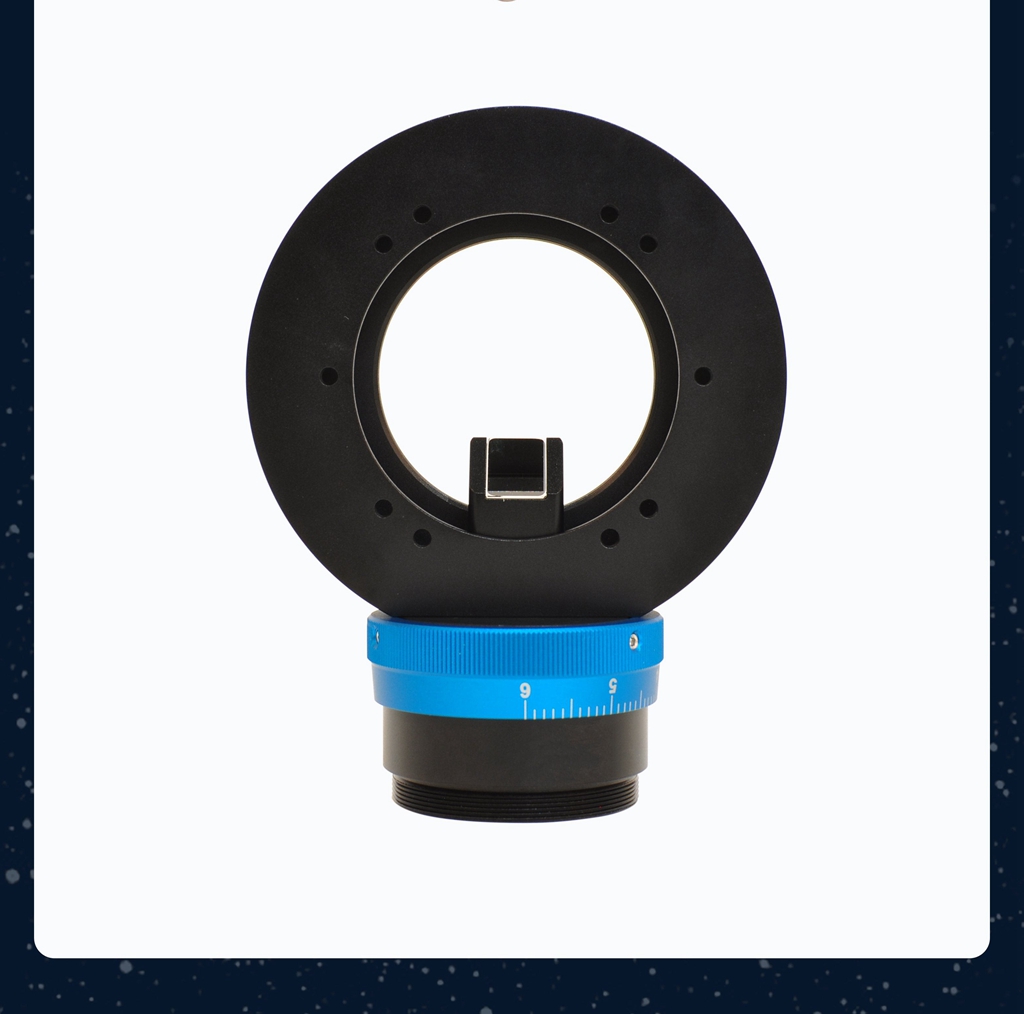

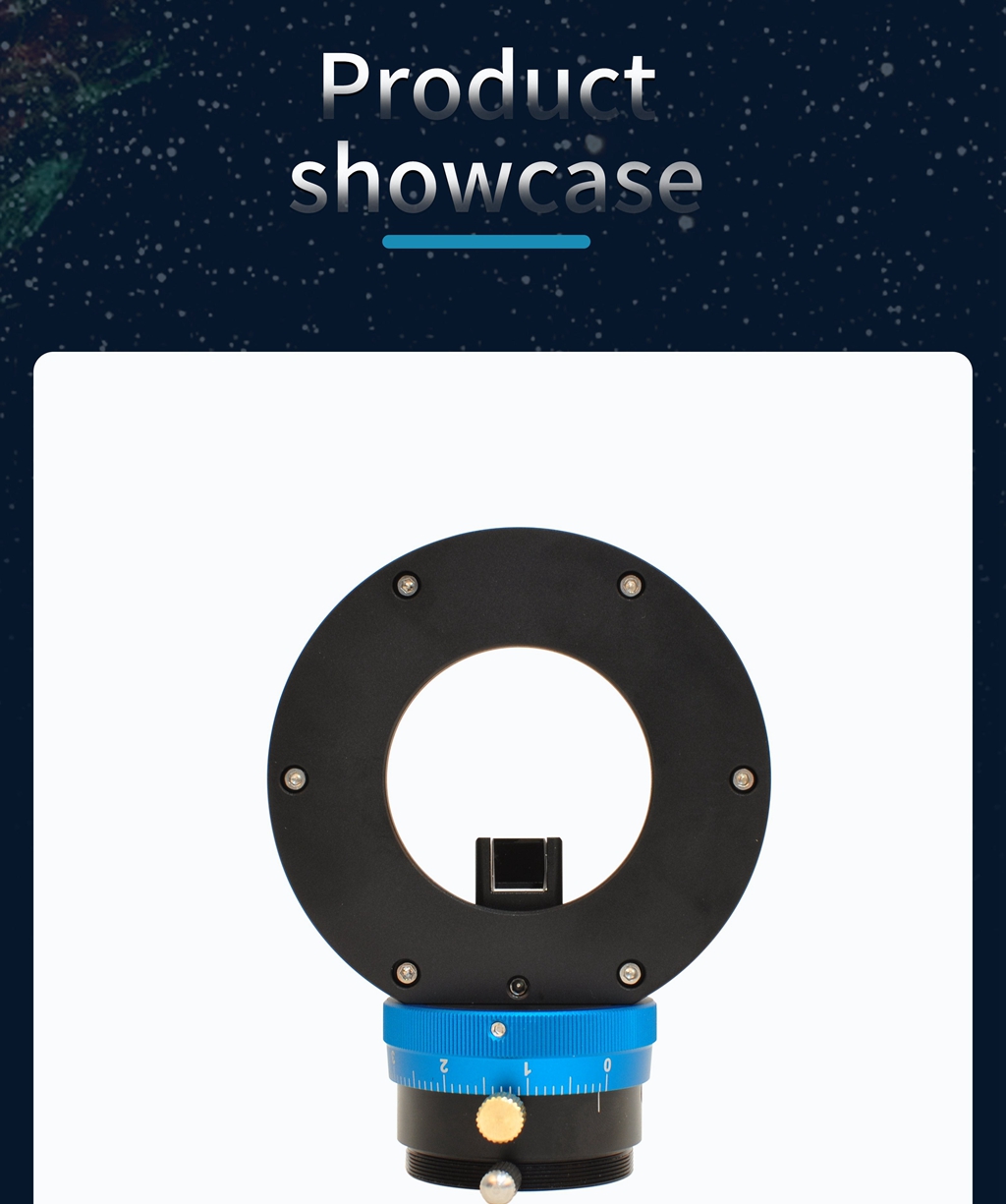

ToupTek M68 OAG Off-axis Guider Adapter High Quality Astronomical Accessory for M68 Thread Guiding Scope
Description:
- The Off-Axis Guider (OAG) allows user to guide the telescope to obtain sharp, round stars by guiding in front of filters using unfiltered light in the same optical path as the main imaging camera. OAG helps overcome non-synchronous distortion and provides higher guiding accuracy.
Features:
- Connection (to the telescope): M48, M54, M68 optional based on customer' s choice.
- Connector (at camera end): M54 x 0.75 (with 20mm extender included)

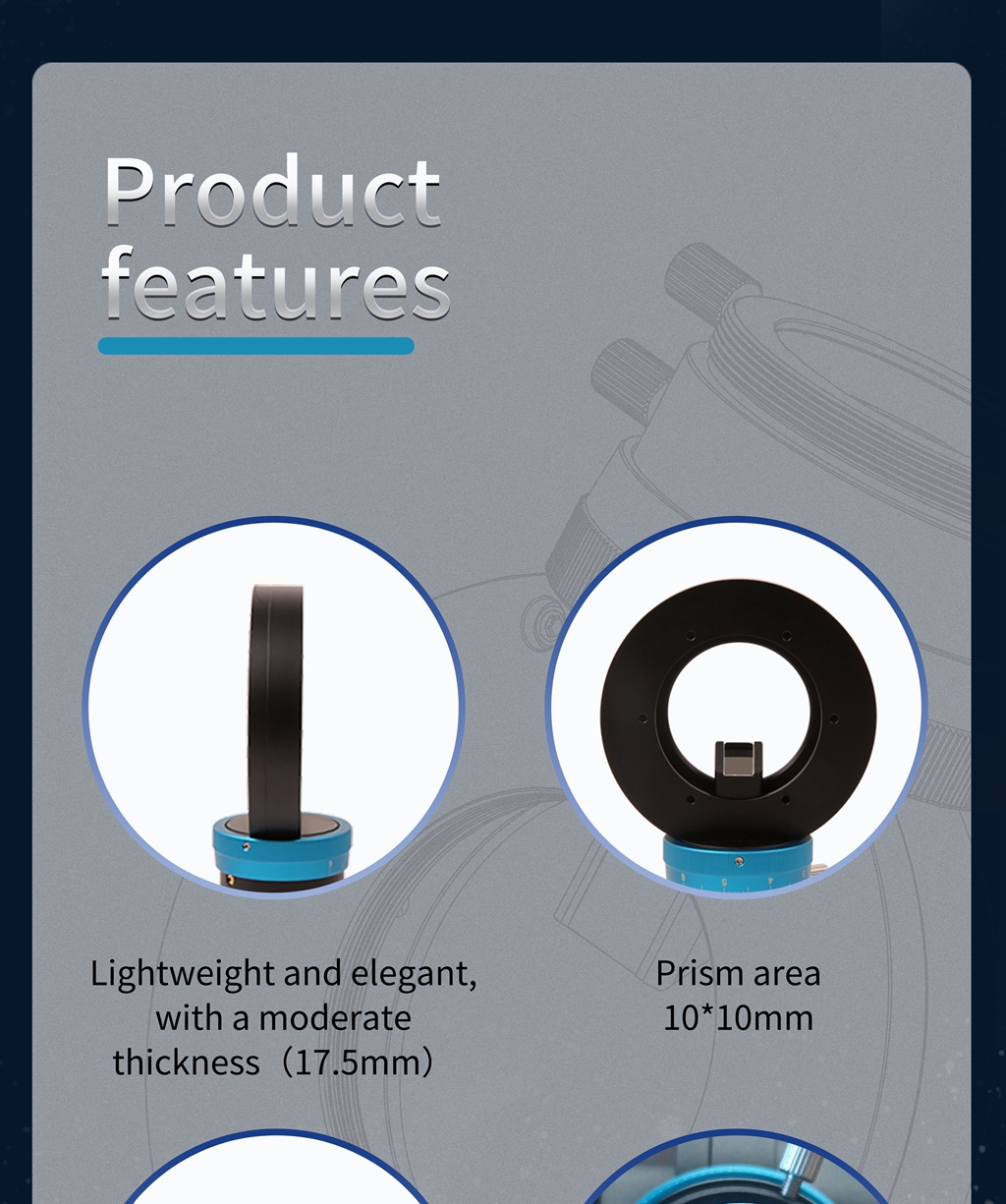

- Prism size (mm): 10 x 10
- Thickness: 17.5mm
- 6mm adjustable focus travel distance.
- Compatible with all guiding cameras, whose body diameter is around 31mm.
- Compatible with telescopes with adapter' s diameter within 80mm.

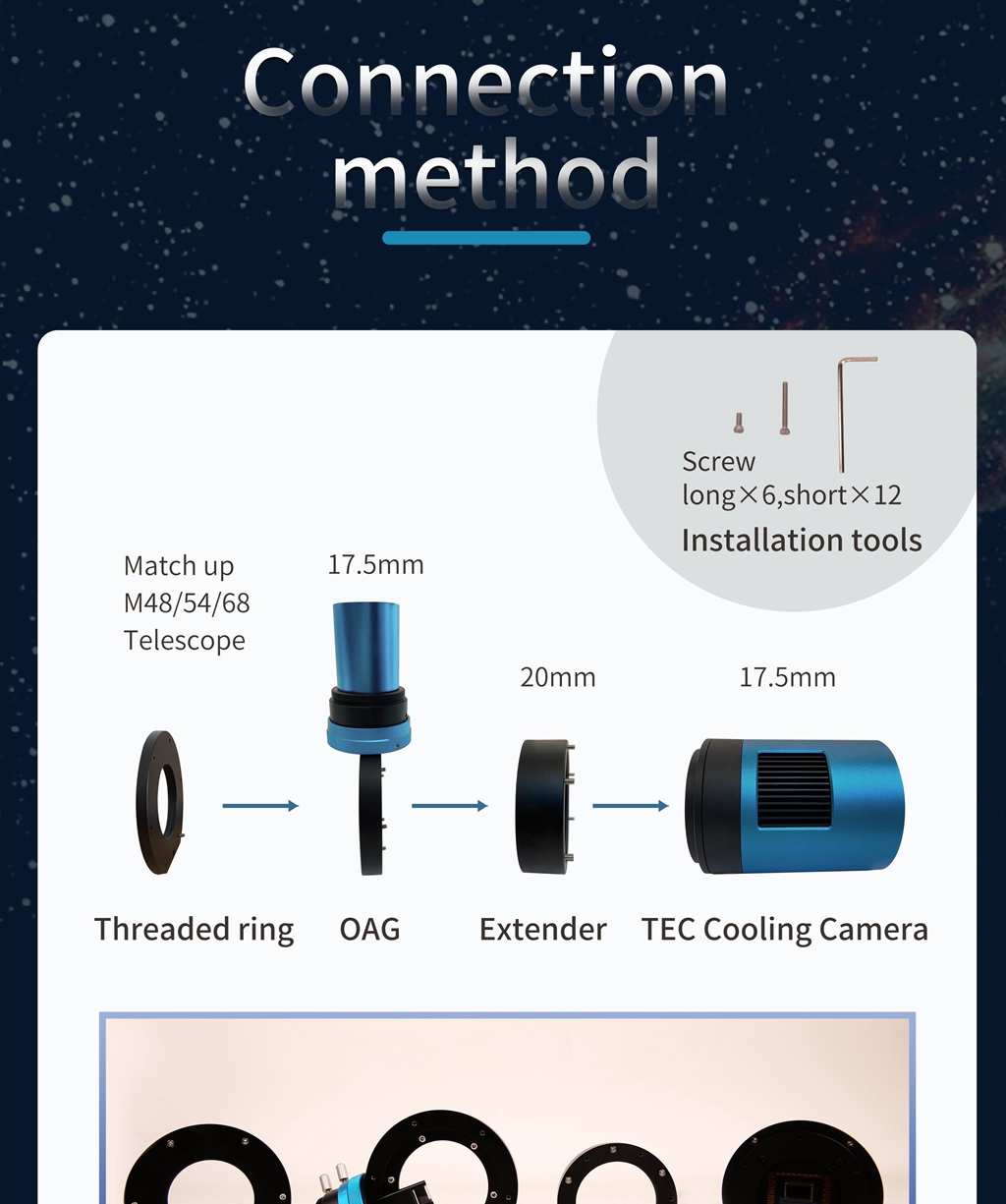

Package Included:
- 1 x OAG
- 1 x Extender
- 1 x Modified Piece (compatible with telescope adapter with diameter from 80mm to 86mm)
