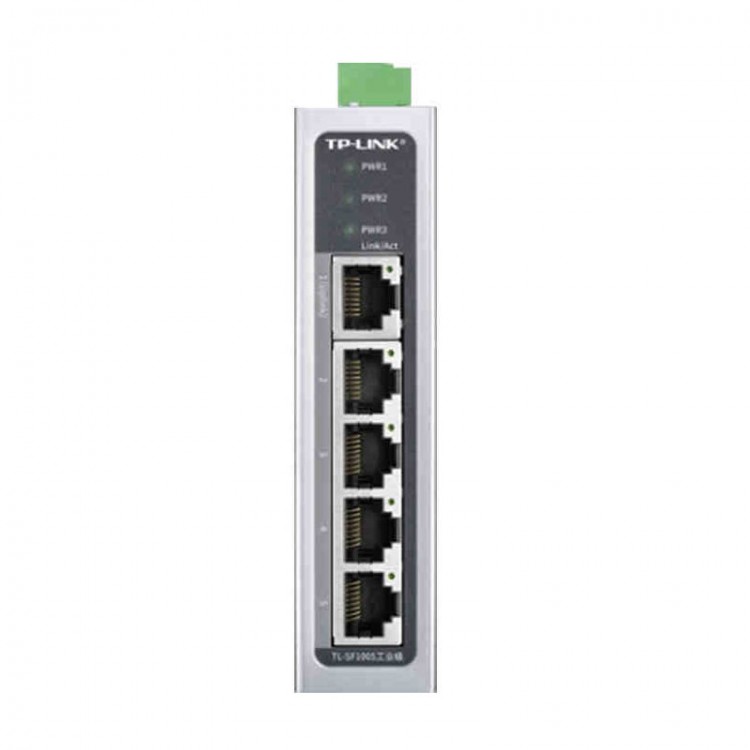

TP-LINK Switch TL-SF1005 5-Port 100M Industrial Grade Ethernet Switch Supports Wall Mounting & Rail
Features:
* TL-SF1005 industrial-grade industrial switch
* Provides 5pcs 10/100M adaptive RJ45 ports
* Industrial working temperature: -40°C to 75°C
* Wide voltage input: 9.6V~60VDC
* Small size (115mm x 70mm x 28mm/4.5" x 2.8" x 1.1") makes it better suited to industrial environments
* Multiple installation methods: rail installation + wall mounting
* IP30 protection: reduces the impact of dust
* VLAN and broadcast storm suppression switches are provided to adapt to various complex network environments
* With an aluminum alloy shell, it is sturdy and durable
* Three-way power input and redundant backup greatly improve the reliability of product power supply
* The industrial switch is not afraid of all kinds of harsh environments thanks to a high level of protection against electromagnetic disturbances (EMS)
Technical Specifications:
* Protocol standards: IEEE 802.3, 802.3i, 802.3u, 802.3x
* Ports: 5 x 100M RJ45 ports
* Indicator lights: 5 status indicators (Link/ACT, PWR1, PWR2 and PWR3)
* Power Input: DC input voltage 12/24/48 VDC (9.6~ 60 VDC); input current 0.10A (MAX.); supports reverse polarity protection
* Switch performance: Store-and-forward is supported. MAC address table depth 2K
* DIP: Broadcast storm protection is supported. VLAN isolation is supported
* Structure: IP30 protection. Product size: 115mm x 70mm x 28mm/4.5" x 2.8" x 1.1". Rail/wall mounting
* Temperature: Operating temperature -40°C to 75°C; storage temperature: -40°C to 85°C
* Humidity: Operating humidity: 10%RH — 90%RH, non-condensing. Storage humidity: 5%RH — 90%RH, non-condensing
* Certification criteria _EMS:
IEC/EN 61000-4-2, Level 4
IEC/EN 61000-4-3, Level 4
IEC/EN 61000-4-4, Level 4
IEC/EN 61000-4-5, Level 3
IEC/EN 61000-4-6, Level 3
IEC/EN 61000-4-8, Level 5
IEC/EN 61000-4-9, Level 5
IEC/EN 61000-4-10, Level 5
Package Included:
* 1 x TL-SF1005 switch
* 1 x Warranty card
* 1 x User manual
Packaging Details:
* Weight: 0.8kg
Note:
* Power adapter is not included.
