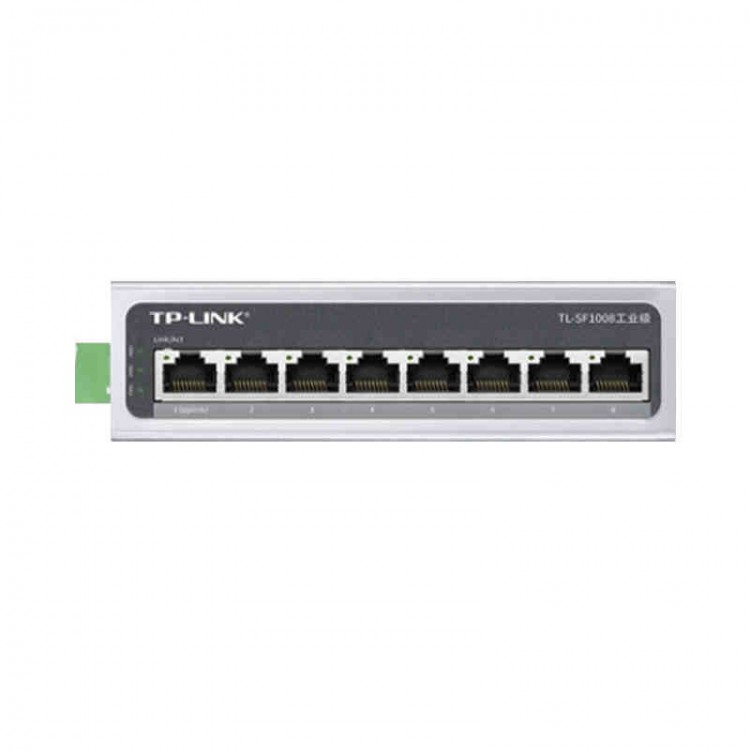

TP-LINK Switch TL-SF1008 8 Port Switch 100M Industrial Grade Ethernet Switch for Wall Mounting Rail

TP-LINK Switch TL-SF1008 8 Port Switch 100M Industrial Grade Ethernet Switch for Wall Mounting Rail

Features:
Industrial Ethernet switch
* It is born for industrial environments.

With wide operating temperature range of -40°C to 75°C, it is no fear of extreme temperatures
* The TL-SF1008 industrial Ethernet switch is designed to operate at a temperature of -40°C to 75°C. We select industrial-grade devices and adopt natural heat dissipation methods to ensure that the switch works stably for a long time in this temperature range and meets all kinds of harsh environments.

IEC/EN 61000-4 industrial grade protection
* The high-standard industrial-grade protection design makes it suitable for various harsh environments.
* The high-standard electromagnetic anti-interference protection design makes it suitable for various harsh electromagnetic environments such as electric power and industrial plants.
* Aluminum alloy shell and electroless nickel gold PCB greatly improve the corrosion resistance of the equipment.
* The housing can be protected by IP30 to reduce the impact of dust on the normal operation of the equipment.

Reverse polarity protection
* It supports positive and negative reverse connection protection. When reversed, the switch can also work normally, preventing incorrect operation and damage to it.

Short-circuit protection
* When it is short-circuited, it can quickly cut off the power supply and avoid other accidents.

Surge protection
* It can pass the 4KV common mode and 1KV differential mode surge impact test, which greatly improves the lightning resistance performance of the power supply (the above data is from the TP-LINK laboratory test results. The actual usage effect may vary depending on specific conditions such as the usage environment and terminal performance).

Selected industrial-grade components, high-standard system design and production control greatly reduce equipment failures
* Using electroless nickel gold plate, PCB board has high corrosion resistance and oxidation resistance. Its electrical properties are even better.
* Selected high-specification and long-life Japanese capacitors greatly improve the service life of the product.
* High redundancy system circuit design to avoid sudden changes in the external environment affecting the normal operation of the equipment.
* TP-LINK's rigorous industrial-grade production and testing process is adopted to effectively release the electrical stress of components and greatly improve the reliability of the equipment.

Compact aluminum alloy body makes it sturdy and durable, and dissipates heat efficiently

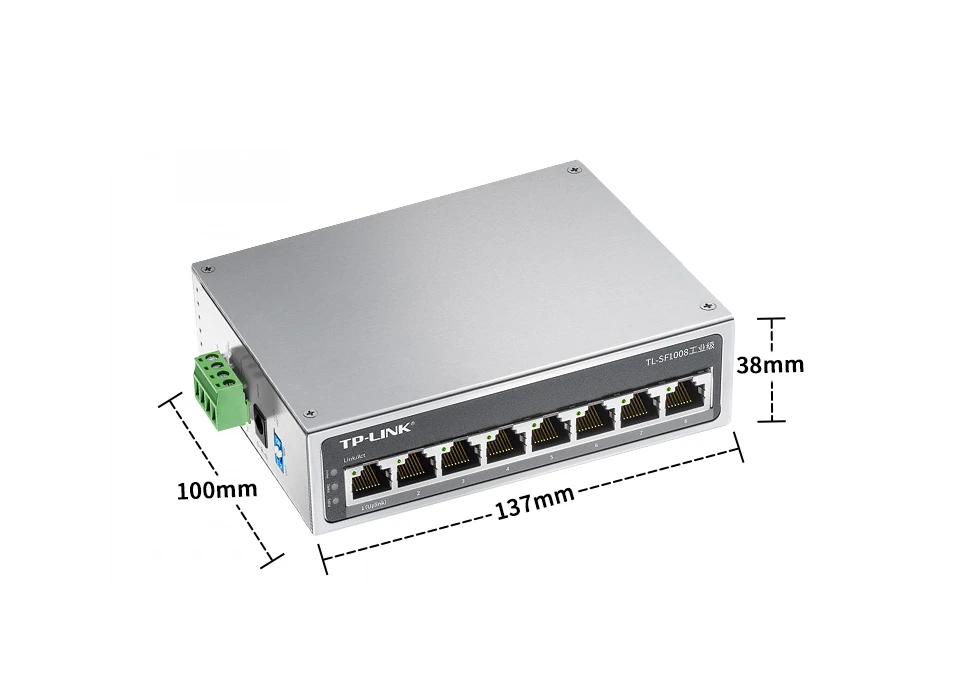

* The body size is only 137mm*100mm*38mm (5.4" x 3.9" x 1.5"). And it can be easily placed in a compact industrial control cabinet. High thermal conductivity aluminum alloy shell enables better heat dissipation.

DIN rail and wall mounting for easy and flexible installation
* The TL-SF1008 can be easily mounted on a DIN rail as well as on a wall. Users can choose the installation method according to their needs, making the use of industrial-grade Ethernet switches simple and reliable.

Good compatibility
* TP-LINK has more than 100 million Ethernet switch devices running all over the world, serving all walks of life, and ensuring that TP-LINK Ethernet switches can be compatible with all kinds of network equipment and production equipment.

Widely used
* It is suitable for factories and mines, industrial automation, transportation, safe city construction, infrastructure, wireless coverage, ports, energy and farms.

Package Included:
* 1 x TL-SF1008 switch
* 1 x Warranty card
* 1 x User manual

Packaging Details:
* Weight: 0.8kg

Note:
* Power adapter is not included.
