Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $7.22 | $7.08 | $6.85 | $6.56 | Contact US |

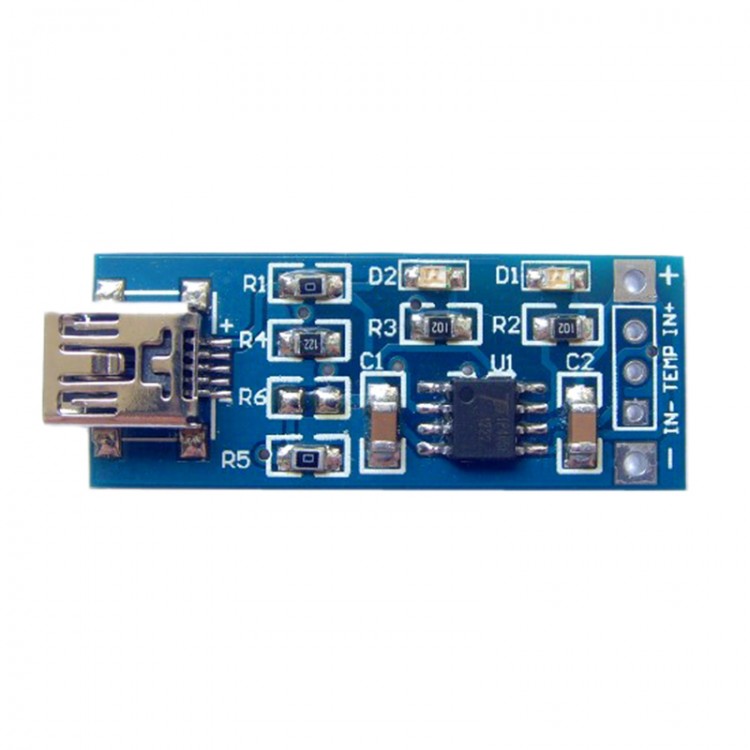

TP4056 1A Lithium Battery Charging Module Charging Panel Charger
Description:
1. On-board TP4056 li-ion battery charging management chip
2. On-board MINI USB, can link to computer USB charge directly
3. This charging panel can supply power through the pin (IN + and IN -)
4. Reserving TEMP row needles interface, can be used as temperature detection to lithium battery
5. Input voltage: 4 v - 8 v, maximum charging current of output: 1000 ma
6. PCB size: 37.3 mm x15 mm
Package included:
- 5 X TP4056 1A Lithium Battery Charging Module
