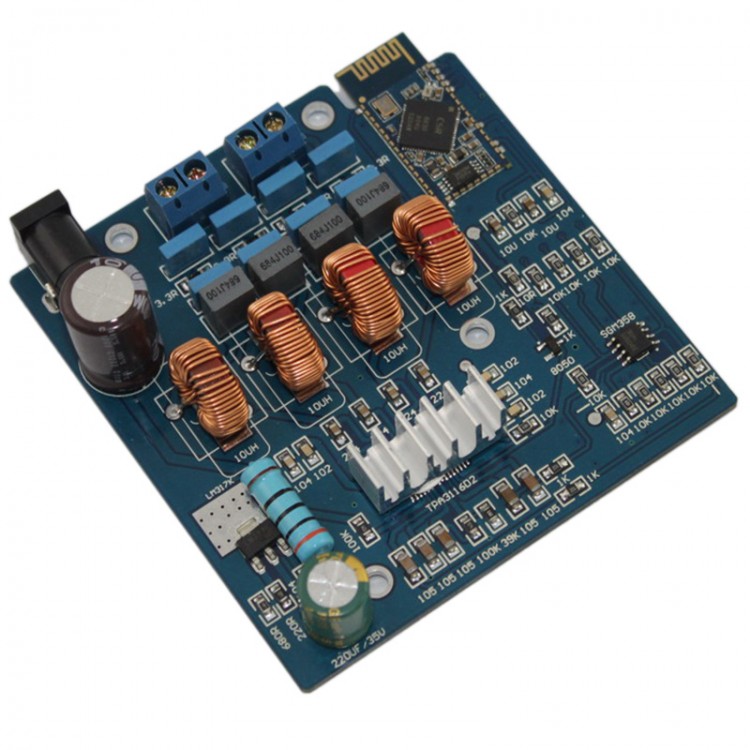

TPA3116 Class D 2x50W DC18V-24V Digital Bluetooth 4.0 Amplifier Audio Power Amp
Features:
- Original TPA3116 and CSR4.0 Bluetooth module
- High quality power filter capacitor
- Famous electrolytic capacitor signal
- Resistance, five rings
- PCB adopts 1.6mm thick and double sides panels, 2 ounce of copper
- Latest Bluetooth version 4.0
- Input mode: only Bluetooth input
Parameters:
- Working mode: D class
- Quiescent current: 50mA
- Working efficiency: 90%
- Rated output power: 2*50W
- Frequency response: 20Hz to 20KHz
- Working voltage: DC18V to DC24V
- Maximum output current: 3A
- Receiving range 10 meters
- PCB size: 82*80MM
Package included:
- 1 x Digital Amplifier
