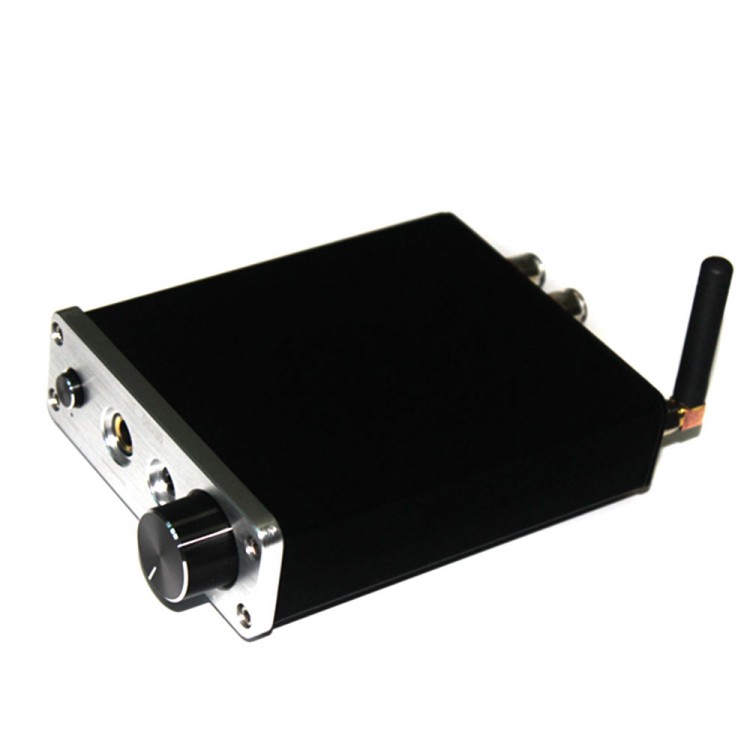

TPA3116 Digital Amplifier CSR8645 Bluetooth 4.0 Receiver 50W+50W Support APT-X Headphone AMP Output Silver
Description:
- Take TPA3116D2 as power amplification circuit output to run speaker unit
- DC single power supply 8-25V
- Maximum 50W+50W dual channel output
- Efficiency > 90%
- CSR8645 HIFI bluetooth audio receiving, support APT-X lossless recieving
- RCA plug and 3.5 headphone plug
- Support headphone output, can run 24-100Ohm headphone
- Color: Silver
- Support wide voltage working, DC12-24V
Power voltage:
- 12V input : 8Ohm peaker/ 12W+12W ; 4Ohm /20W+20W
- 15V input : 8Ohm peaker/ 18W+18W ; 4Ohm /30W+30W
- 19V input : 8Ohm peaker/ 32W+32W ; 4Ohm /45W+45W
- 24V input : 8Ohm peaker/ 38W+38W ; 4Ohm /50W+50W
Package list (no power supply) :
- 1 x SQ1 Amplifier Bluetooth Audio Receiver
- 1 x Bluetooth antenna
